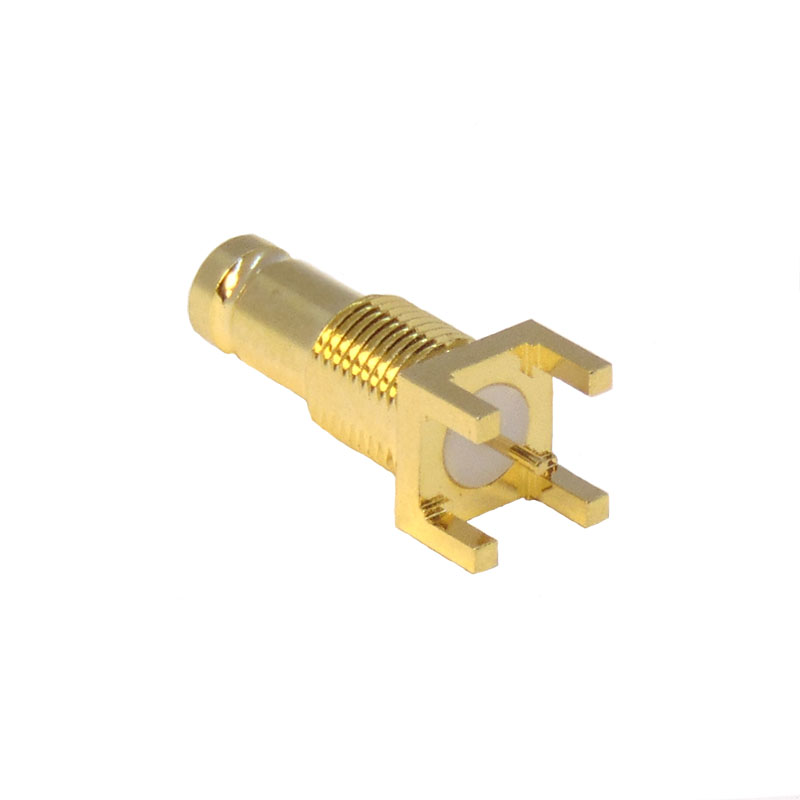

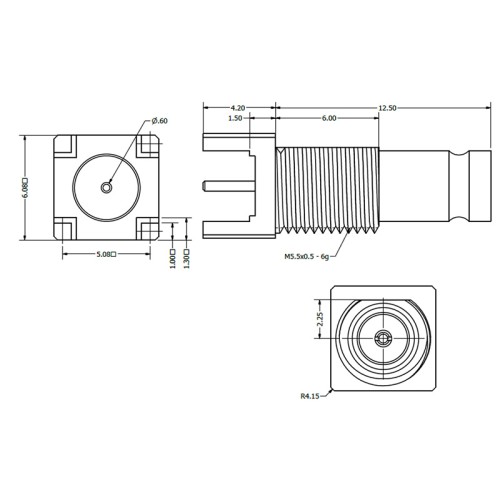

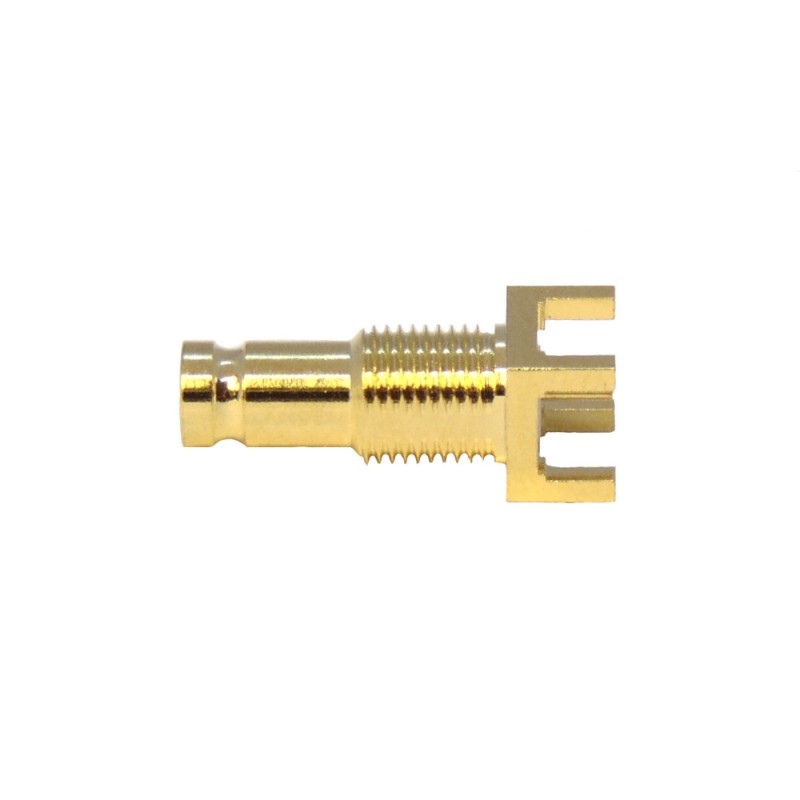

The XGS-06-TB27-GG is a top entry PCB bulkhead mounted connector which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications. The connector has 2.7mm leg length and a bulkhead thread for panel mounting.
This connector replaces the C-SX-099G offering better performance at 3GHz and all frequencies up to 6GHz, whilst also being a cost effective alternative.
| Impedance | 75Ω |
| Frequency Range | 0 – 6 GHz |
| Working Voltage | 250Vrms |
| Dielectric Withstanding Voltage | 750Vrms |
| Contact Resistance | Centre contact 4.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | 1000MΩ |
| Reflection Factor (VSWR) | 1.00 (max) 0-3GHz 1.01 (max) 3-6GHz |
| Connector Type | Female |
| Metal Parts | Brass / Au |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
The connector is available as a:
XGS-06-TB27-GG is a connector only product
XGS-06-TB27-GG-AZ when supplied with a 2 slot circular nut
| Mounting Type | Top Entry |
| Leg Length | 2.7mm |
| Hardware | Available separately |
| Processing | Maximum wave and hand soldering temperature 265°C |
