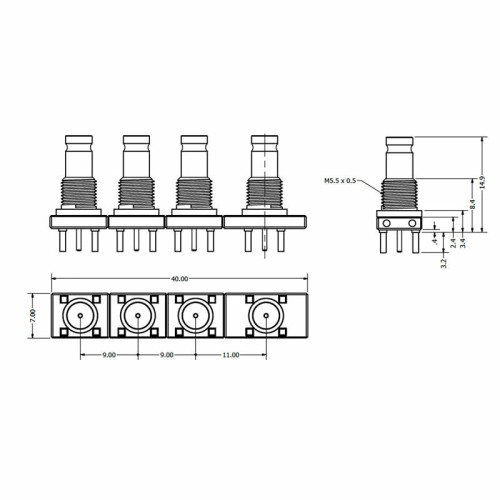

Meeting the requirements of the JIIA ratified CoaXPress® V1.1.1  (CXP) specification , this range meets the needs of the Machine Vision industry, providing a small form factor multi-port connector which can operate in high speed, high definition video applications and provide polarised interconnection capabilities. The system comprises two connector body widths (13 and 9 mm) secured together with precision press fit links providing an array of connector ports with precise pitch separations of  9 and 11 mm. Each port can incorporate a light pipe to display identification or status data. The secure latching mechanism, compatible with standard 1.0/2.3 connectors, provides high connection integrity with a simple push/pull operation.

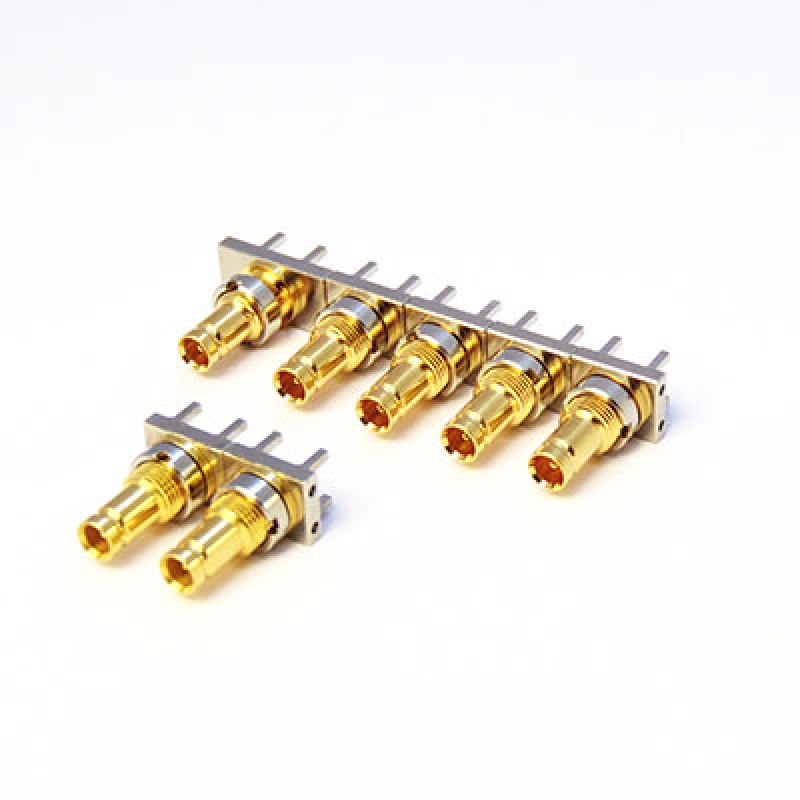

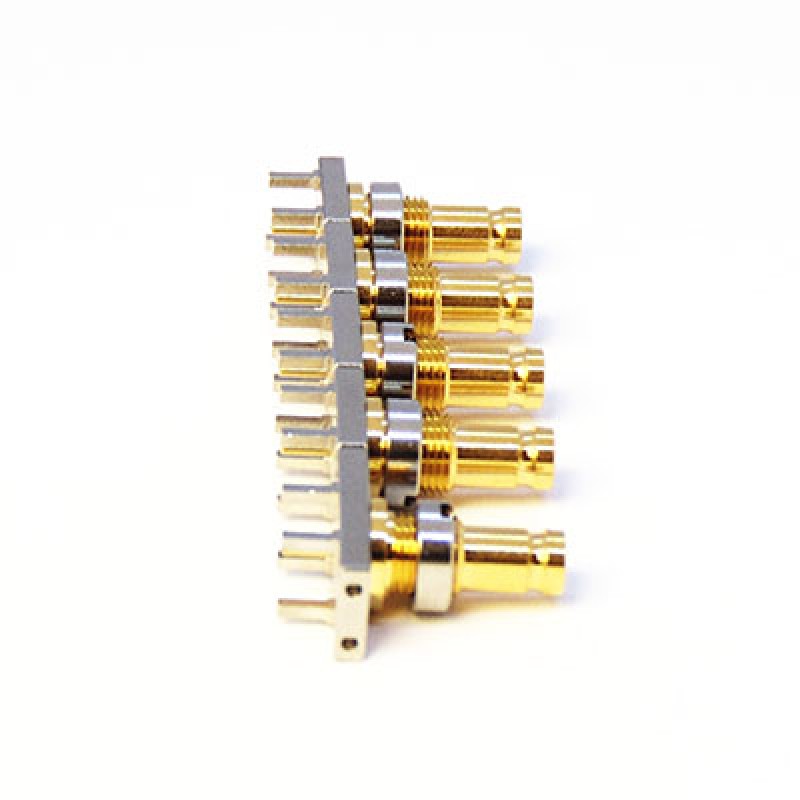

The XGT-SXXX-XXXX stackable connector system is a multiport flexible connector array that allows you to build to your own specification and have these pre-configured to meet your requirements. This is the top entry straight version.
