The XKT-C000-NGAY is a right angle mounted PCB connector body for the changeable interface system and can be used with any of the formats of interface available.

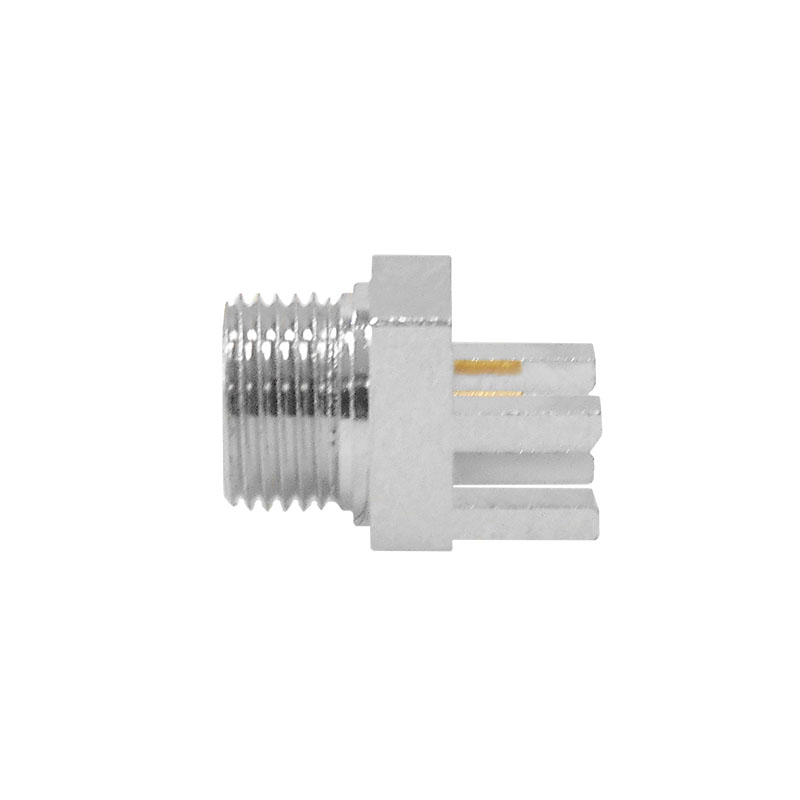

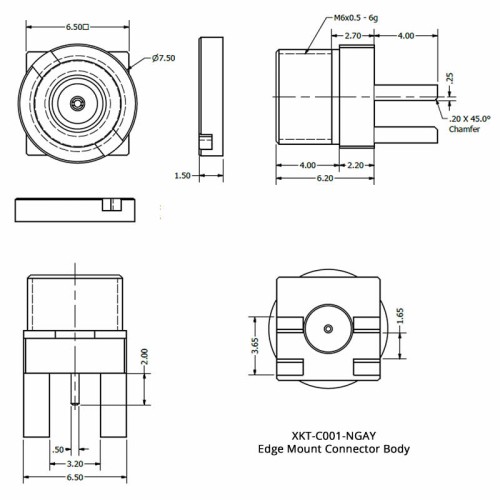

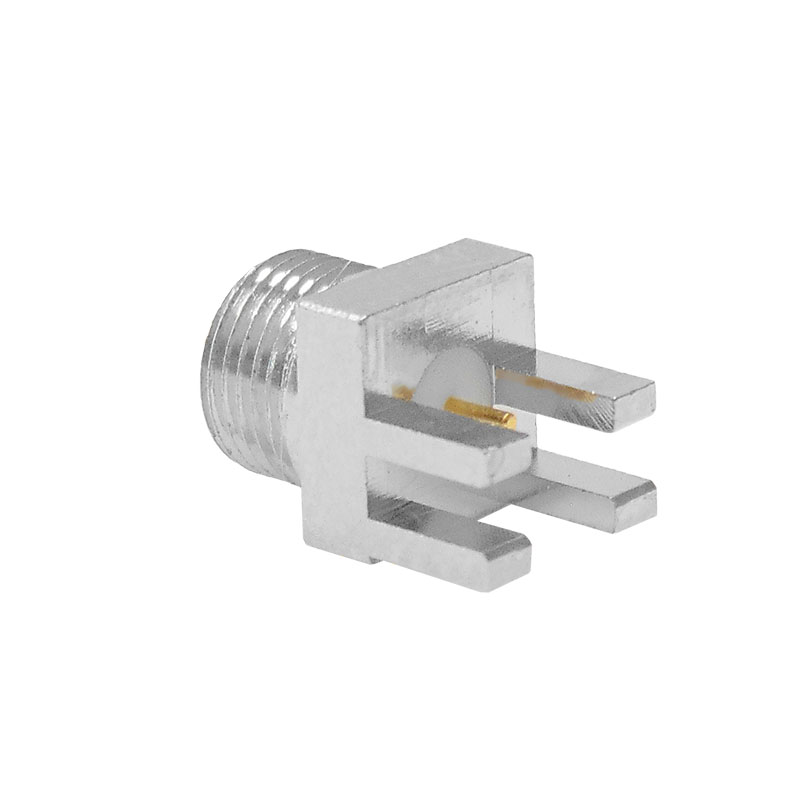

The XKT-C001-NGAY is an edge mounted PCB connector body for the changeable interface system and can be used with any of the formats of interface available.
| Impedance | 75Ω |
| Frequency Range | 0 – 6GHz |
| Working Voltage | 250Vrms |
| Dielectric Withstanding Voltage | 750Vrms |
| Contact Resistance | Centre contact 4.0mΩ Outer contact 2.5mΩ |
| Reflection Factor (VSWR) | 1.10 (max) DC – 3GHz 1.35 (max) 3 – 6 GHz |
| Connector Type | Female |
| Metal Parts | Brass / Au / Ni |
| Centre Pin | 1.0 / 2.3: BeCu / 10µ”Au BNC: Phosphor Bronze / 10µ”Au, 1.0 / 2.3: BeCu / 10µ"Au BNC: Phosphor Bronze / 10µ"Au, 1.0 / 2.3: BeCu / 10µ”Au BNC: Phosphor Bronze / 10µ”Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
| Board Thickness | 1.6mm |
| Processing | Maximum wave and hand soldering temperature 265°C |
The XKT-C000-NGAY is a right angle mounted PCB connector body for the changeable interface system and can be used with any of the formats of interface available.
The XKT-C002-NGAY is a top entry mounted PCB connector body for the changeable interface system and can be used with any of the formats of interface available.
The XKT-8014-GGAY is a 1.0 / 2.3 Interface for use with one of the changeable interface connector bodies.
The XKT-1067-NGAY is a BNC Interface for use with one of the changeable interface connector bodies.
The XKT-D000-GGAY is a Micro BNC Interface for use with one of the changeable interface connector bodies.
Changeable Interface bulkhead nut driver for DIN 1.0/2.3 nuts
6mm Changeable Interface Tool for DIN 1.0 / 2.3 and Micro BNC Interfaces
