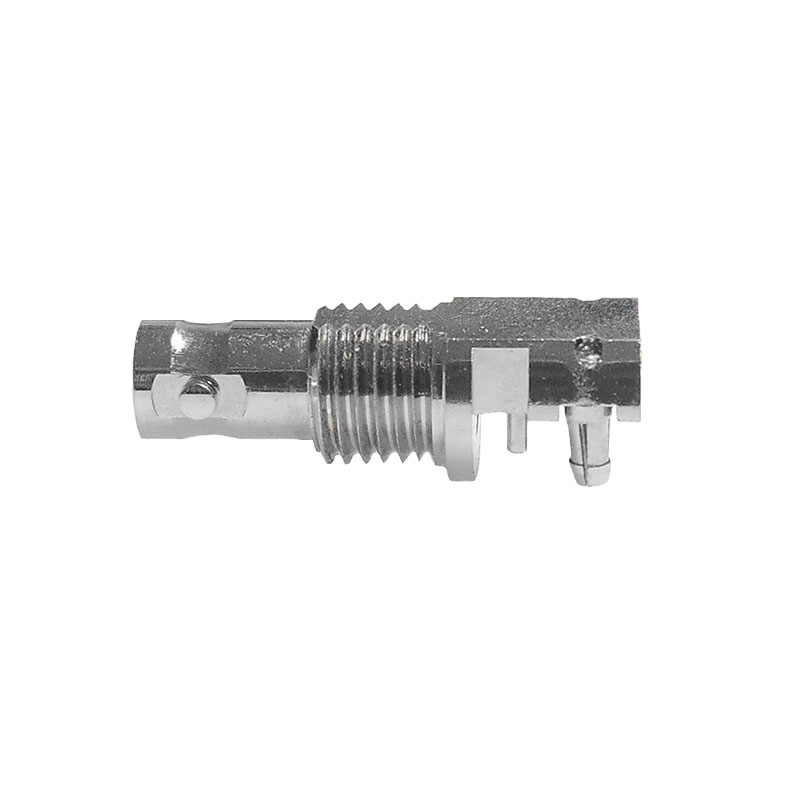

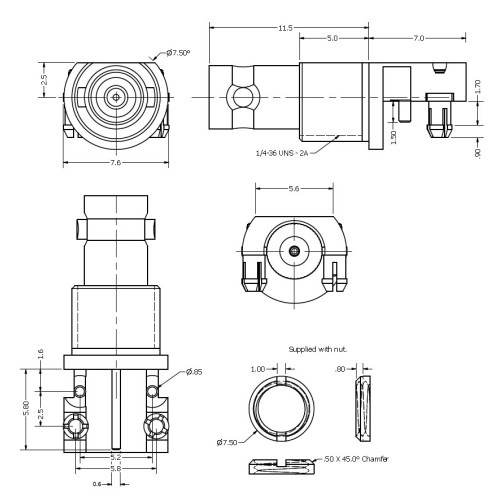

With a light weight construction and flat top surface this 12 GHz surface mount Micro BNC Coaxial Connector is specifically designed to aid automated placement techniques universally adopted in volume production processes. This End Launch Surface Mounting Micro BNC connector from Cambridge Electronic Industries facilitates transmission rates over a single channel of up to 12 Gbits/s thus permitting significantly increased wiring densities. The XPS-12-EL16-NNHP is for 1.6mm PCB thicknesses.
This connector was formerly sold as:
XPS-12-EL16-NNHP as a connector only part
XPS-12-EL16-NNHP-AZ when supplied with a 2 slot circular nut (formerly C-SX-200)
| Impedance | 75Ω |
| Frequency Range | 0 – 12GHz |
| Working Voltage | 170Vrms |
| Dielectric Withstanding Voltage | 500Vrms |
| Contact Resistance | Centre contact 5.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | 1000MΩ |
| Reflection Factor (VSWR) | 1.05 (max) DC – 6.0GHz 1.09 (max) 6.0 – 12.0GHz |
| Connector Type | Female |
| Metal Parts | Brass / Au |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
| Mounting Type | End Launch |
| Leg Length | 1.6mm |
| Board Thickness | 1.6mm |
| Hardware | Available separately |
| Processing | Reflow Processing Temp 245°C Hand Solder Temp 245°C |
The ANP-C4-CSN-1.50 is a 4 slot circular Micro BNC nut which is 1.5mm thick and made from mild steel with a nickel plating. This nut is for use with single port Micro BNC with a thread size of 1/4-36 UNS – 2B. The nut can also be used with our magnetic Micro BNC nut driver, TLG 121.
This part was previously sold as part number 71X-0064-33.
The ANP-C2-CBN-1.60 is a 2 slot circular Micro BNC nut which is 1.5mm thick and made from brass with a nickel plating. This nut is used with single port Micro BNC’s with a thread size of 1/4-36UNS – 2B.
This part was previously sold under part number 71X-0067-33.
The ANP-C2-CBN-1.50 is a 2 slot circular Micro BNC nut which is 1.5mm thick and made from brass with a nickel plating. This nut is used with single port Micro BNC’s with a thread size of 1/4-36UNS – 2B.
