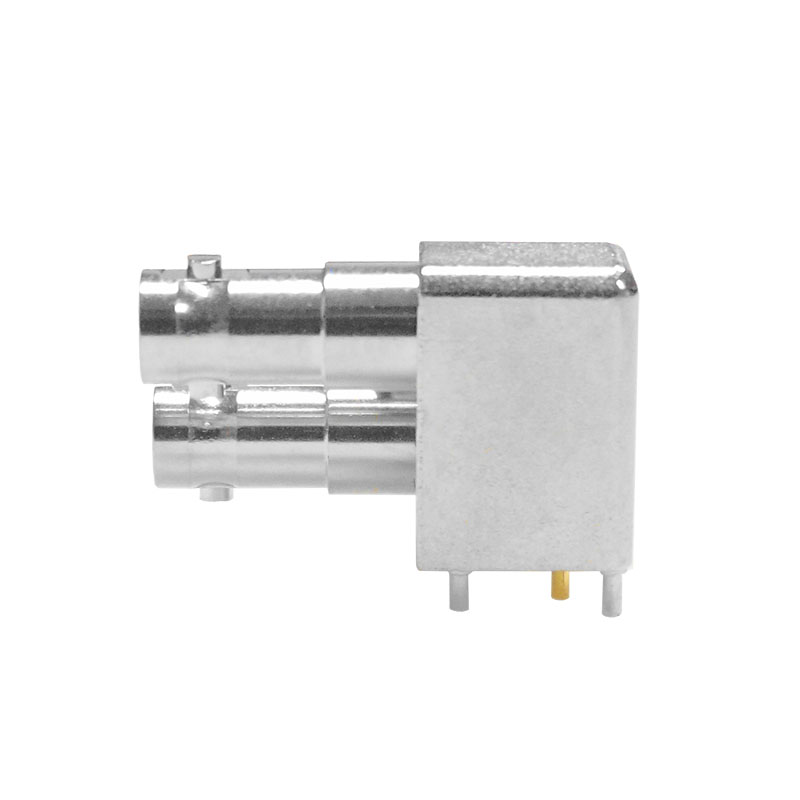

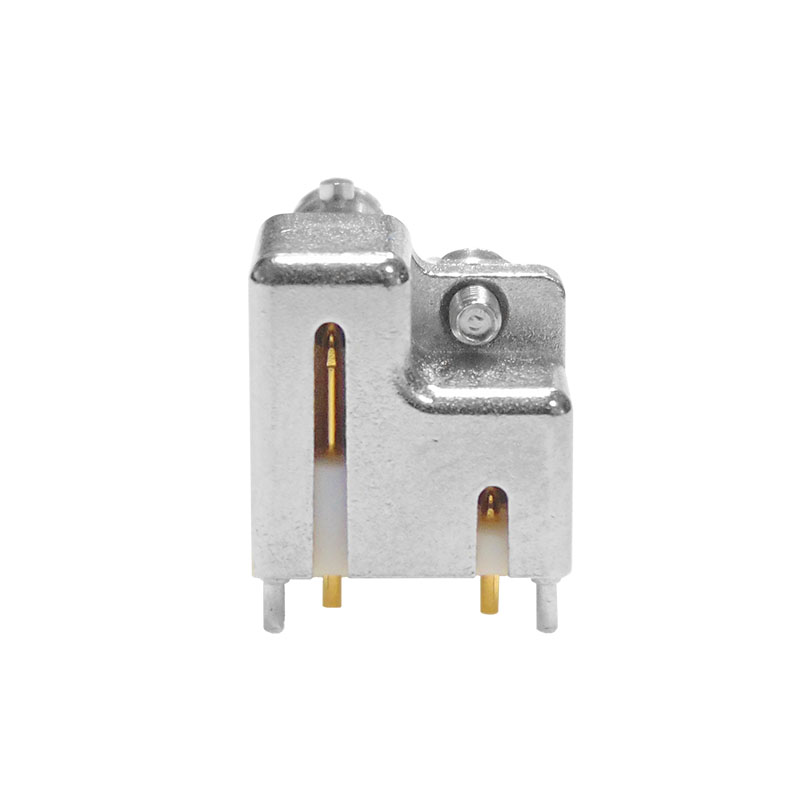

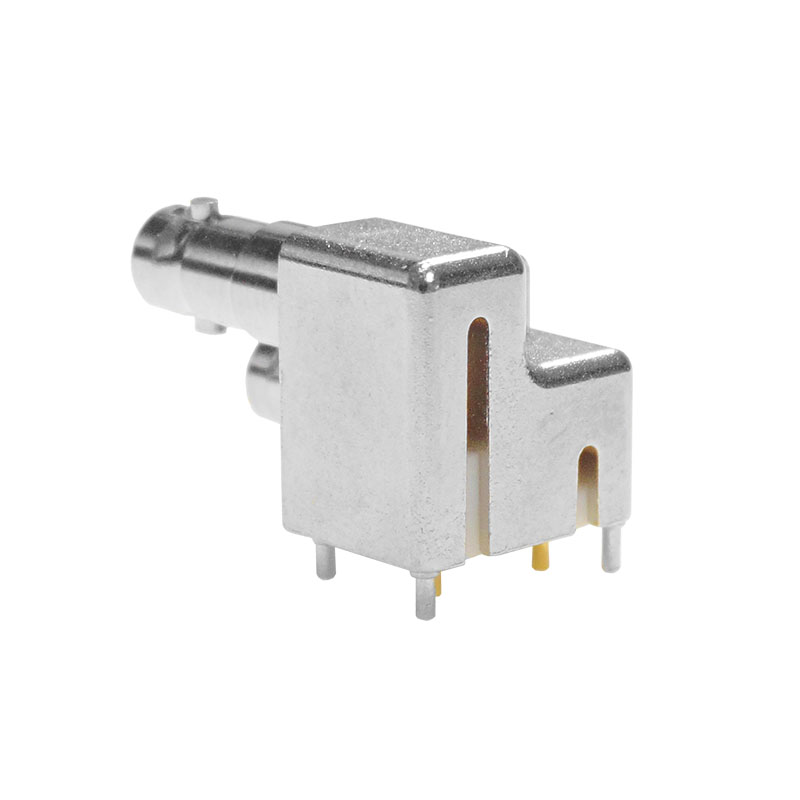

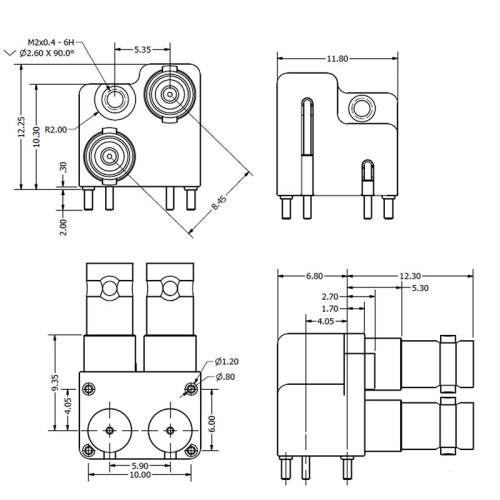

XPS-12-RA20-NND – 75Ω Micro BNC Socket 12GHz Right Angle, 2.0mm Leg, Dual Port with Screw
XPS-12-RA20-NND – 75Ω Micro BNC Socket 12GHz Right Angle, 2.0mm Leg, Dual Port with Screw

XPS-12-RA20-NND – 75Ω Micro BNC Socket 12GHz Right Angle, 2.0mm Leg, Dual Port with Screw

Product Code: XPS-12-RA20-NND

The design of this low profile dual port connector allows an enhanced packing density of connections on a standard PCI card. This is made possible by combining the small format of the Micro BNC style Connectors
with a diagonal mounting format. The XPS-12-RA20-NND is a low profile 12GHz 75Ω dual Micro BNC Connector that is optimised for high speed high definition video applications such as 12G SDI Broadcast and CXP-12 CoaXPress Machine Vision.

This connector was formerly sold as:
C-SX-172 as a connector only product

Impedance 75Ω
Frequency Range 0 – 12GHz
Working Voltage 170Vrms
Dielectric Withstanding Voltage 500Vrms
Contact Resistance Centre contact ≤5.0mΩ
Outer contact ≤2.5mΩ
Insulation Resistance ≥1000MΩ
Reflection Factor (VSWR) 1.1 (max) DC – 12GHz
Connector Type Female
Metal Parts Brass / Au
Zinc Alloy
Centre Pin BeCu / 10µ Au
Insulators PTFE
Temperature Range -65 to +85°C
Mating Cycles 250
Mounting Type Right Angle
Leg Length 2.0mm
Processing Maximum wave and hand soldering temperature 245°C
Features Dual Port
