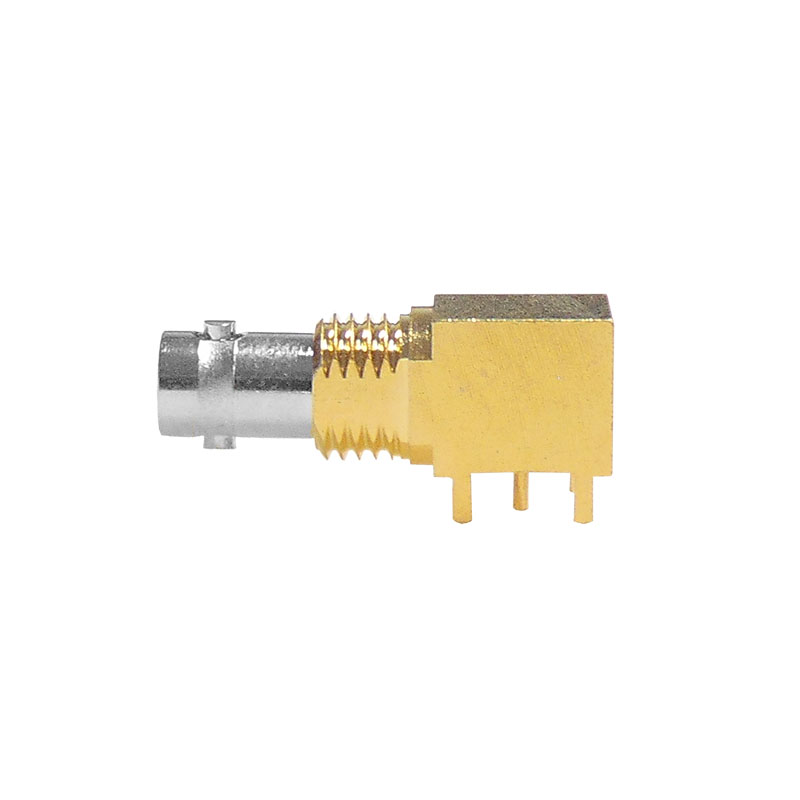

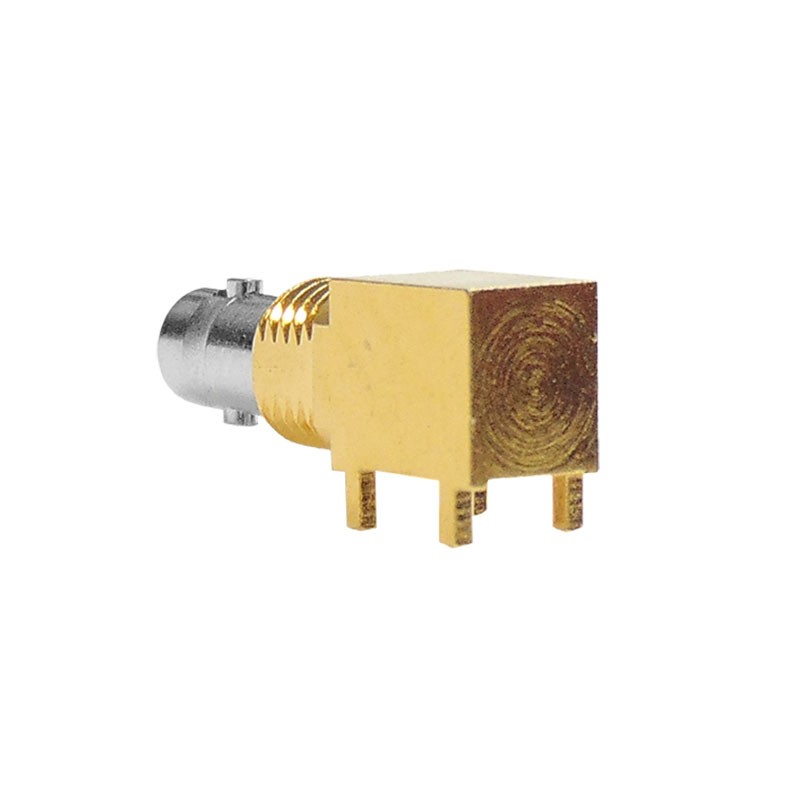

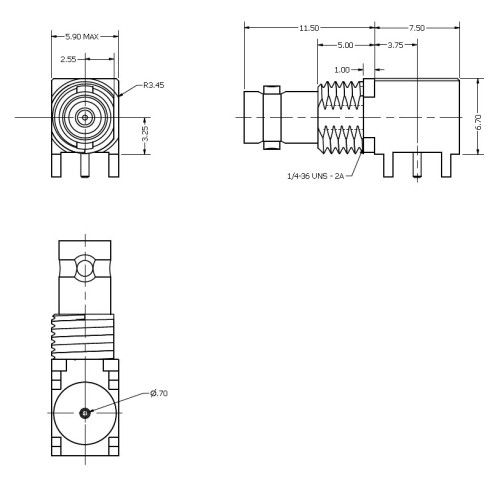

Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications whilst also meeting the JIIA CXP-12 specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The XPS-12-RB20-GNA is a Right Angle Slim Body PCB Bulkhead Micro BNC socket for PCB thicknesses of 2mm. The connector has been specifically designed to work in conjunction with our XPS-12-RA20-NND, matching the low profile of the connector to offer an additional port.
| Impedance | 75Ω |
| Frequency Range | 0 – 12GHz |
| Working Voltage | 170Vrms |
| Dielectric Withstanding Voltage | 500Vrms |
| Contact Resistance | Centre contact ≤5.0mΩ Outer contact ≤2.5mΩ |
| Insulation Resistance | ≥1000MΩ |
| Reflection Factor (VSWR) | 1.08 (max) DC – 6GHz 1.14 (max) 0 – 12GHz |
| Connector Type | Female |
| Metal Parts | Brass/Au |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
This connector is available as:
XPS-12-RB20-GNA as the connector only part
XPS-12-RB20-GNA-AZ when supplied with a 2 slot circular nut (formerly C-SX-194)
| Mounting Type | Right Angle |
| Leg Length | 2.0mm |
| Hardware | Available separately |
| Processing | Maximum wave and hand soldering temperature 245°C |
| Features | Slim Body |
The ANP-C4-CSN-1.50 is a 4 slot circular Micro BNC nut which is 1.5mm thick and made from mild steel with a nickel plating. This nut is for use with single port Micro BNC with a thread size of 1/4-36 UNS – 2B. The nut can also be used with our magnetic Micro BNC nut driver, TLG 121.
This part was previously sold as part number 71X-0064-33.
The ANP-C2-CBN-1.60 is a 2 slot circular Micro BNC nut which is 1.5mm thick and made from brass with a nickel plating. This nut is used with single port Micro BNC’s with a thread size of 1/4-36UNS – 2B.
This part was previously sold under part number 71X-0067-33.
The design of this low profile dual port connector allows an enhanced packing density of connections on a standard PCI card. This is made possible by combining the small format of the Micro BNC style Connectors
with a diagonal mounting format. The XPS-12-RA20-NND is a low profile 12GHz 75Ω dual Micro BNC Connector that is optimised for high speed high definition video applications such as 12G SDI Broadcast and CXP-12 CoaXPress Machine Vision.
This connector was formerly sold as:
C-SX-172 as a connector only product
The ANP-C2-CBN-1.50 is a 2 slot circular Micro BNC nut which is 1.5mm thick and made from brass with a nickel plating. This nut is used with single port Micro BNC’s with a thread size of 1/4-36UNS – 2B.
