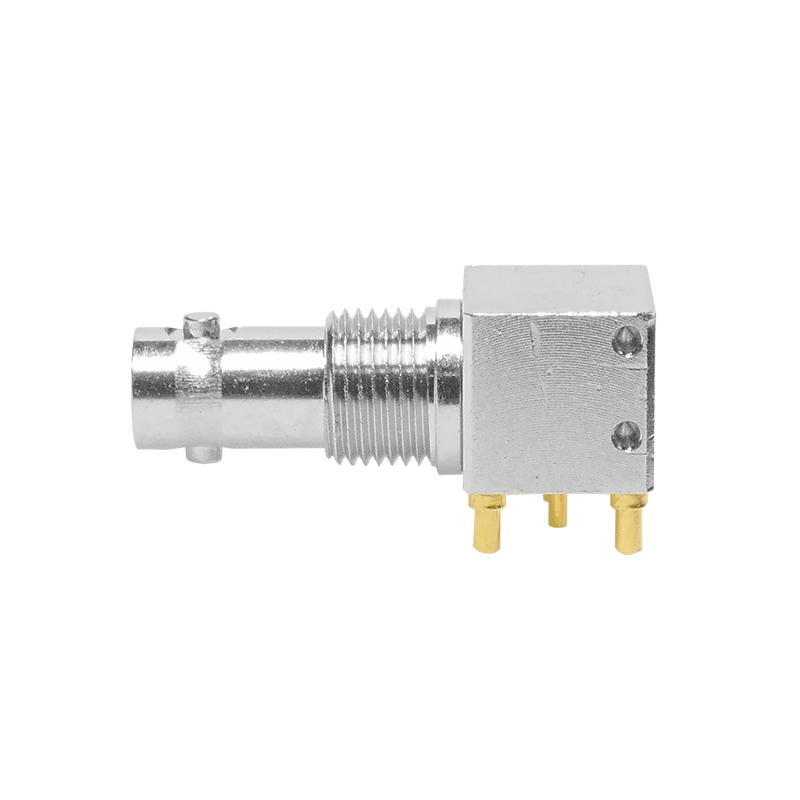

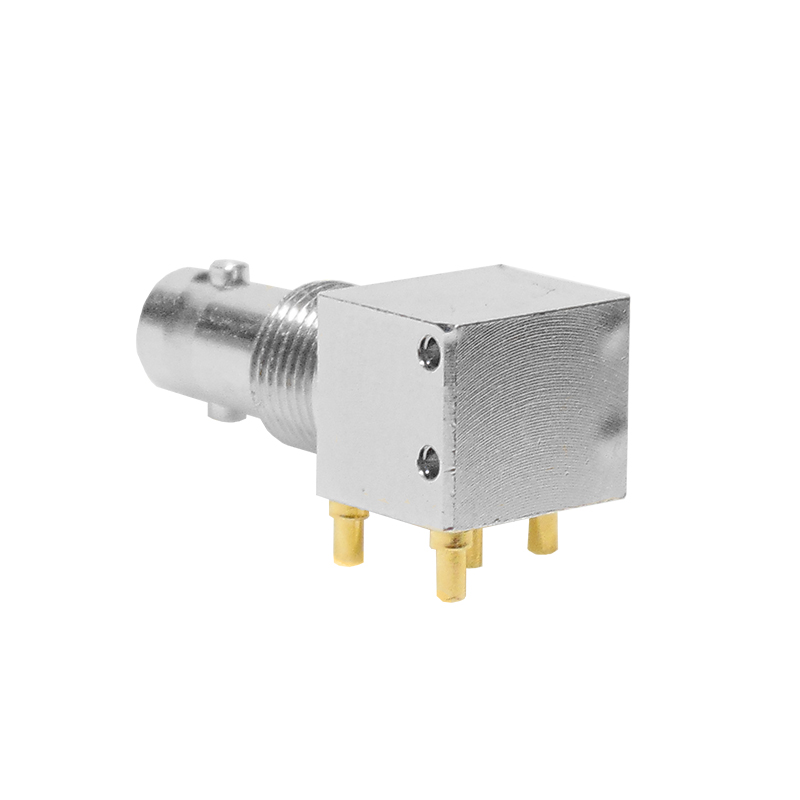

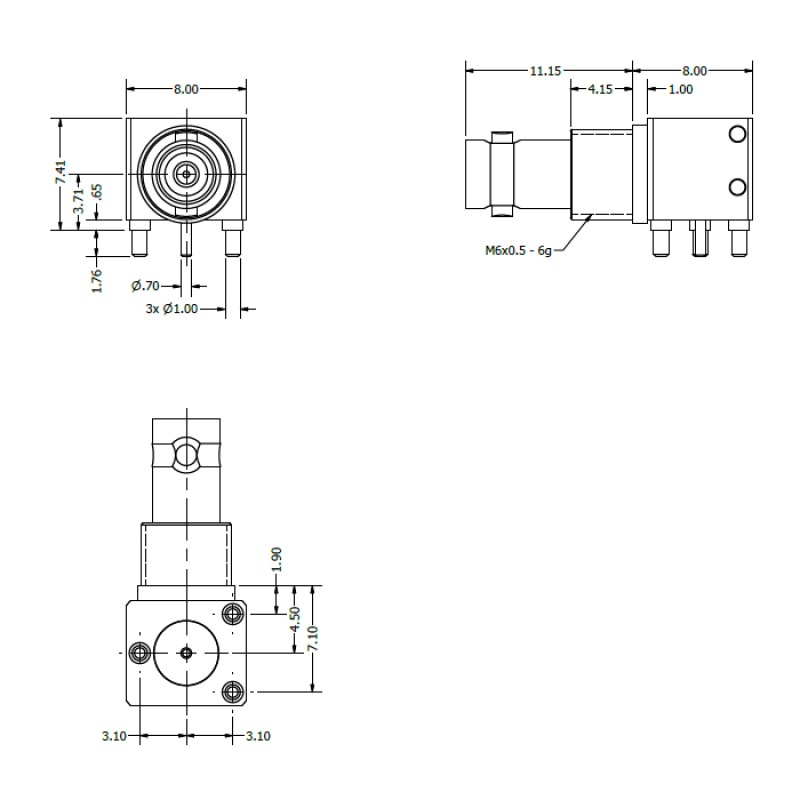

Our 12 GHz Precision BNC coaxial connectors are engineered for 4K/Quad HD and Ultra HD broadcast applications, fully compliant with the JIIA CoaXPress specification. Supporting a full 12 GHz channel over a single connection, they ensure superior signal integrity and reliability. For space-critical designs, our Micro BNC stacking connectors provide the highest packing density in a diagonal array configuration, while maintaining the PCIe height standard. They can be manufactured in tall-and-short or short-and tallcombinations, with any number of interfaces integrated into a single connector array, delivering unmatched flexibility in system design. CEI offers custom array drawings with dedicated part numbers, simplifying seamless integration into your design. Each connector incorporates a through-hole pin and is precisely tuned to minimize crosstalk at higher frequencies, ensuring stable performance in demanding broadcast environments.
| Impedance | 75Ω |
| Frequency Range | 0 – 12.0 GHz |
| Working Voltage | 170Vrms |
| Dielectric Withstanding Voltage | 500Vrms |
| Reflection Factor (VSWR) | 1.11 (max) 0-12GHz |
| Contact Resistance | Centre contact 5.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | 1000MΩ |
| Connector Type | Female |
| Metal Parts | Brass / Ni / Au |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PFTE |
| Temperature Range | -65 to 85°C |
| Mating Cycles | 500 |
| Processing | Maximum hand or wave soldering temperature 265°C |
| Mounting Type | Right Angled |
| Leg Length | 1.8mm |
| Hardware | Available separately |
The ANP-C4-CSN-1.50 is a 4 slot circular Micro BNC nut which is 1.5mm thick and made from mild steel with a nickel plating. This nut is for use with single port Micro BNC with a thread size of 1/4-36 UNS – 2B. The nut can also be used with our magnetic Micro BNC nut driver, TLG 121.
This part was previously sold as part number 71X-0064-33.
The ANP-C2-CBN-1.60 is a 2 slot circular Micro BNC nut which is 1.5mm thick and made from brass with a nickel plating. This nut is used with single port Micro BNC’s with a thread size of 1/4-36UNS – 2B.
This part was previously sold under part number 71X-0067-33.
