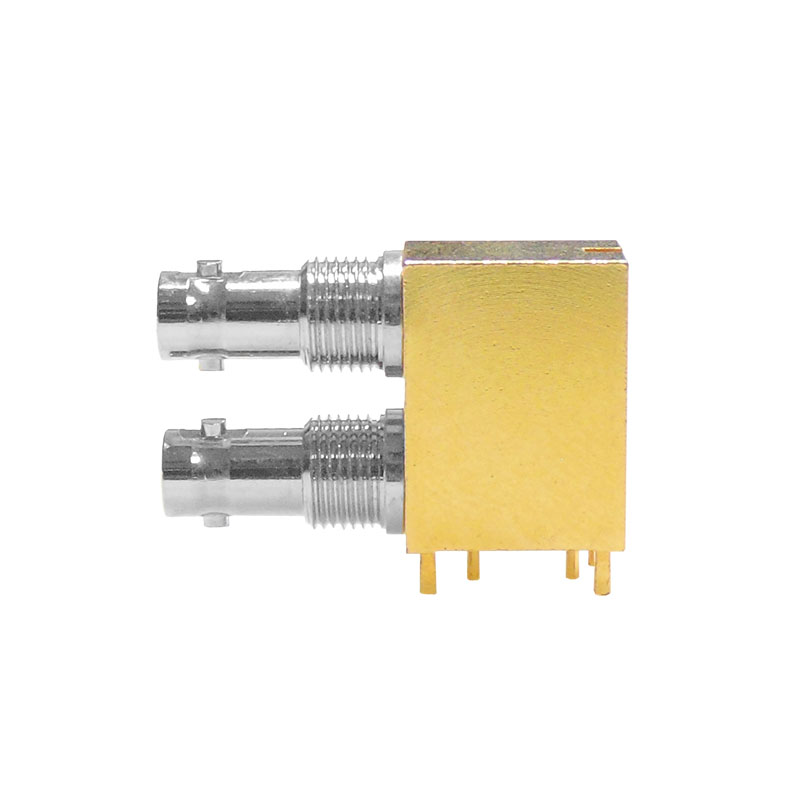

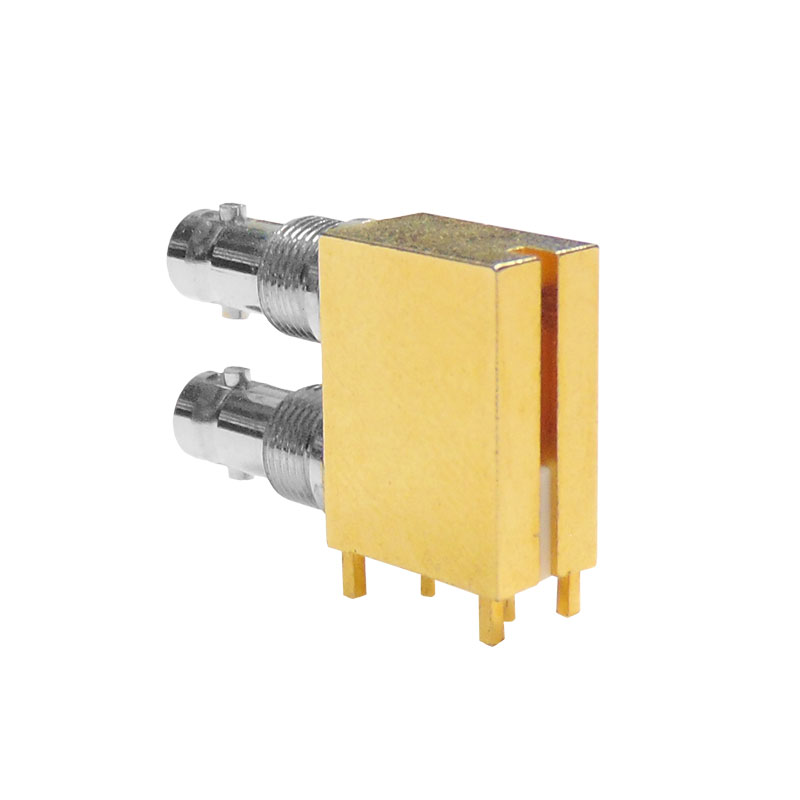

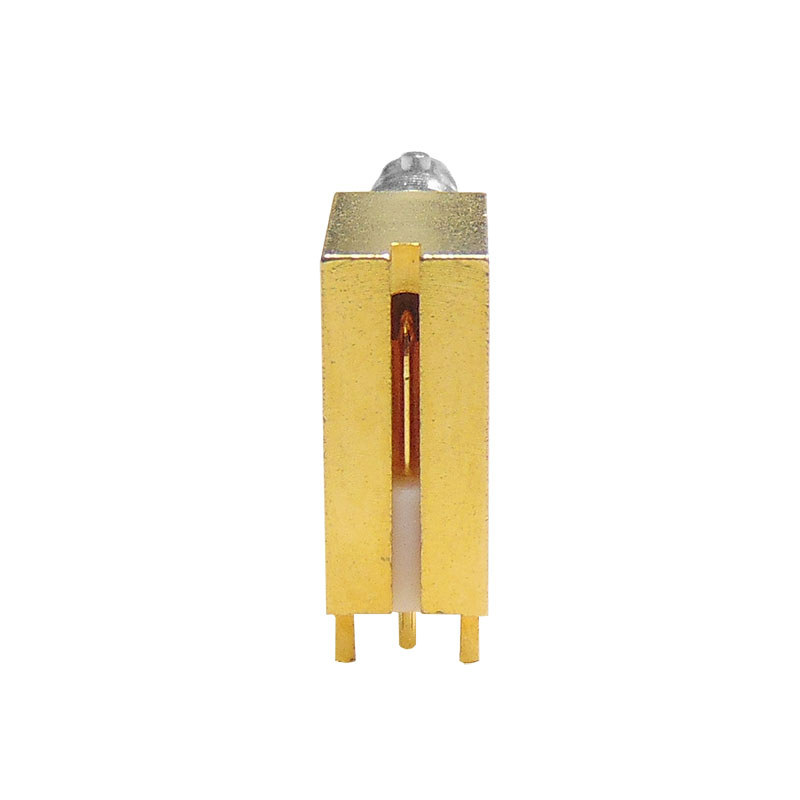

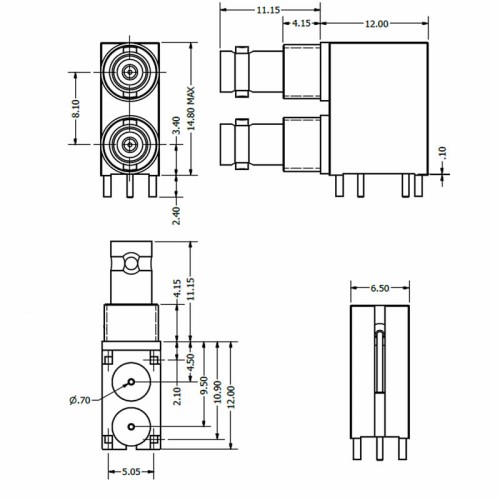

Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications whilst meeting the JIIA CXP-12 CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector. The XPS-12-RB24-GND is a dual port Micro BNC connector, removing the need for PCB mezzanine configurations in high density applications.
| Impedance | 75Ω |
| Frequency Range | 0 – 12GHz |
| Working Voltage | 170Vrms |
| Dielectric Withstanding Voltage | >500Vrms |
| Contact Resistance | Centre contact ≤4.0mΩ Outer contact ≤2.5mΩ |
| Insulation Resistance | ≥1000MΩ |
| Reflection Factor (VSWR) | 1.10 (max) 0-6GHz 1.20 (max) 6-12GHz |
| Connector Type | Female |
| Metal Parts | Brass / Au / Ni |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
This connector is available as:
XPS-12-RB24-GND as the connector only product (formerly C-SX-213)
XPS-12-RB24-GND-BZ when supplied with 2 circular nuts (formerly C-SX-183)
| Mounting Type | Right Angle |
| Leg Length | 2.4mm |
| Hardware | Available separately |
| Processing | Maximum wave and hand soldering temperature 245°C |
| Features | Slim Body |
The ANP-C2-DBN-1.50 is a 2 slot circular Micro BNC nut which is 1.5mm thick and made from brass with a nickel plating. This part is made for dual port Micro BNC’s and has a thread size of M6x0.5- 6H.
This part was previously sold under part number 71X-0069-33.
