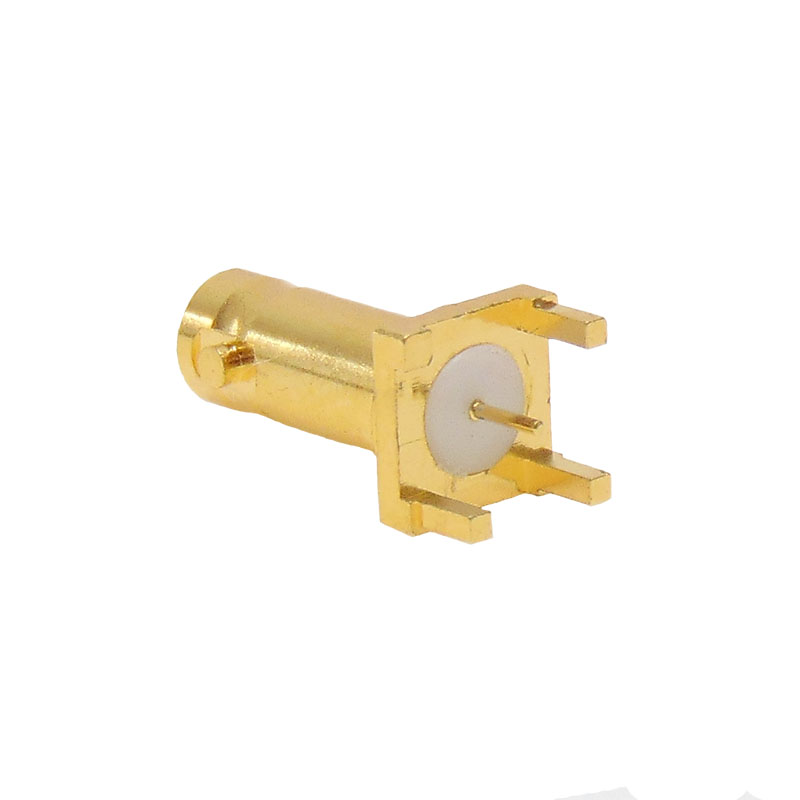

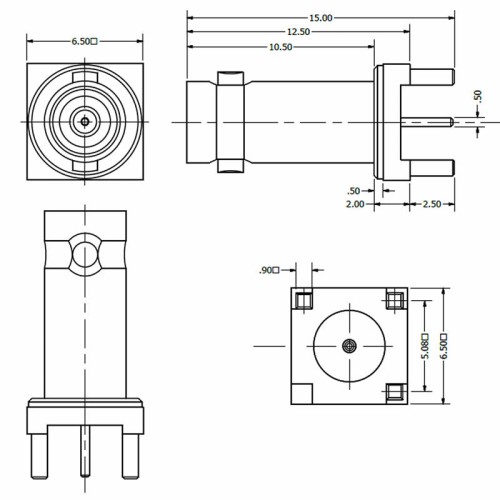

Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications whilst meeting the JIIA CXP-12 CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector. The XPS-12-TE25-GGIL connector is a PCB top entry Micro BNC bulkhead which features 3 mounting pins and has a long body profile. The connector is suitable for PCB’s up to 2.4mm thick.

This connector was formerly sold as:
C-SX-153
