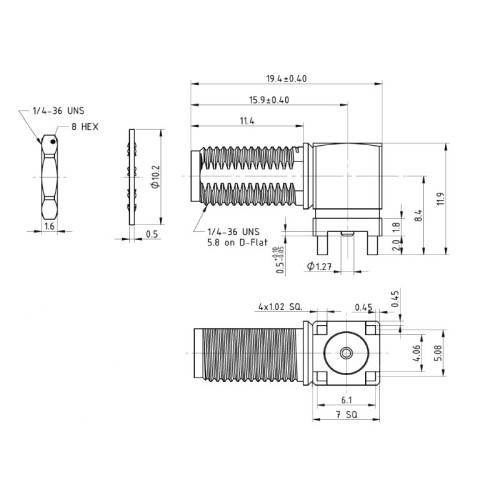

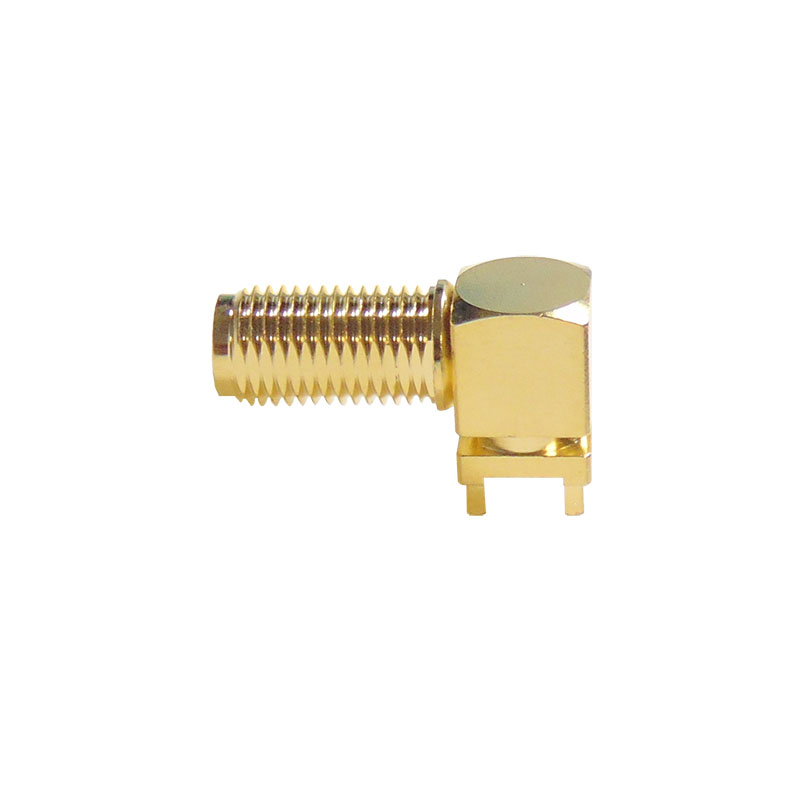

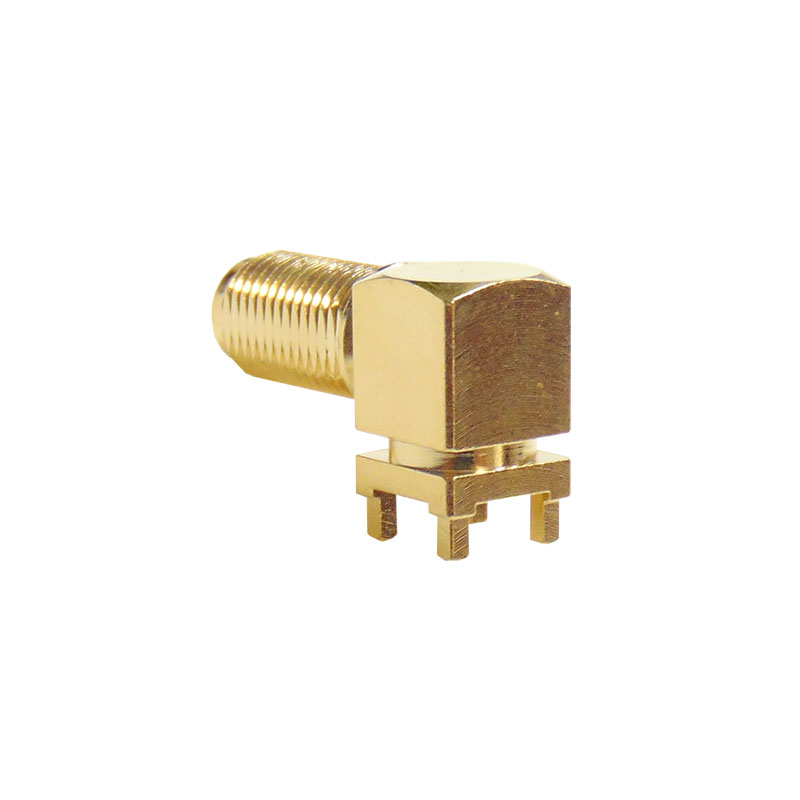

The ZCS-06-RB20-GGLN is a right angled bulkhead SMA socket which features a long thread to the front interface. The connector works up to a speed of 6GHz. The connector also features a surface mounted pin.
| Impedance | 50Ω |
| Frequency Range | 0 – 6 GHz |
| Metal Parts | Brass / Au |
| Centre Pin | Phosphor Bronze / 2µ Au |
| Insulators | PTFE |
| Mounting Type | Right Angled |
| Processing | Hand or wave soldering |
