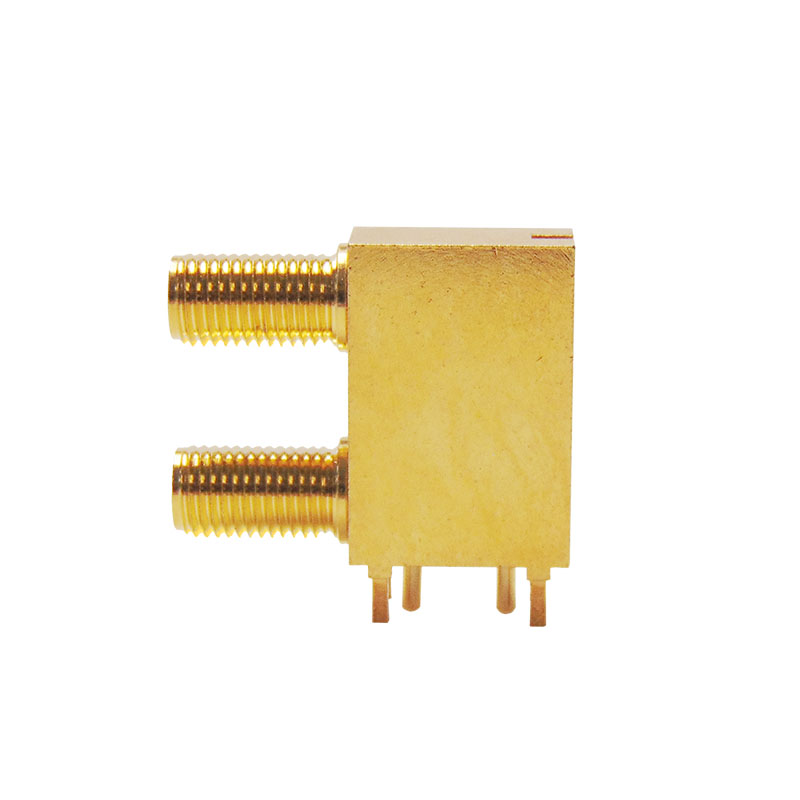

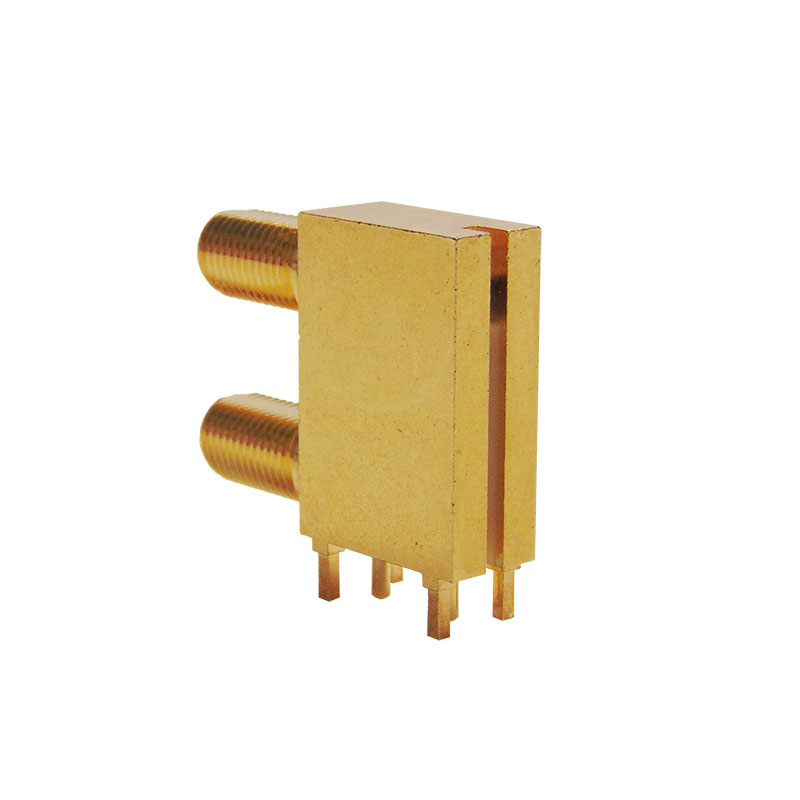

The ZCS-12-RB32-GGD is a dual port right angle PCB bulkhead mounted SMA connector which operates up to frequencies of 12GHz over a single channel. The connector has a dual through hole contacts and a 3.3mm leg length. The connector is supplied with nuts and washers.
This connector was formerly sold as:
C-SX-241 as a connector only product
| Impedance | 50Ω |
| Frequency Range | 0 -12GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1000Vrms |
| Contact Resistance | Centre contact 3.0mΩ Outer contact 2.0mΩ |
| Metal Parts | Brass / Au plated |
| Centre Pin | BeCu / Au Plated |
| Insulators | PTFE |
This connector is available as:
ZCS-12-RB32-GGD-AA when supplied with a hex nut and crinkle washer (formerly C-SX-241).
