C-SX-207 - Dual Port Micro BNC Connector
C-SX-207 - Dual Port Micro BNC Connector

Impedance 75Ω
Frequency Range 0 - 12GHz
Working Voltage 250Vrms
Dielectric Withstanding Voltage 750Vrms
Reflection Factor (VSWR) 1.52 (max) 0 - 12GHz
Contact Resistance Centre contact 4.0mΩ Outer contact 2.5mΩ
Insulation Resistance >1000M Ω
Connector Type Female
Metal Parts Brass / Au / Ni
Centre Pin BeCu / 10µ"Au
Insulators PTFE
Temperature Range -65 to +85°C
Mating Cycles 500
Processing Maximum wave and hand soldering temperature 260°C, with 10-12s dwell time
General Information
Mounting Type Right Angled
Leg Length 2.4mm
Hardware Supplied with 2 x 2 slot circular nuts

C-SX-207 - Dual Port Micro BNC Connector

  • Product Code: C-SX-207

Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVision™ Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The  Micro BNC connectors are mateable with any standard Micro BNC connector, but to achieve optimum performance we recommend using Cambridge Connectors 12GHz CoaxVision™ Micro BNC Connectors in both halves.

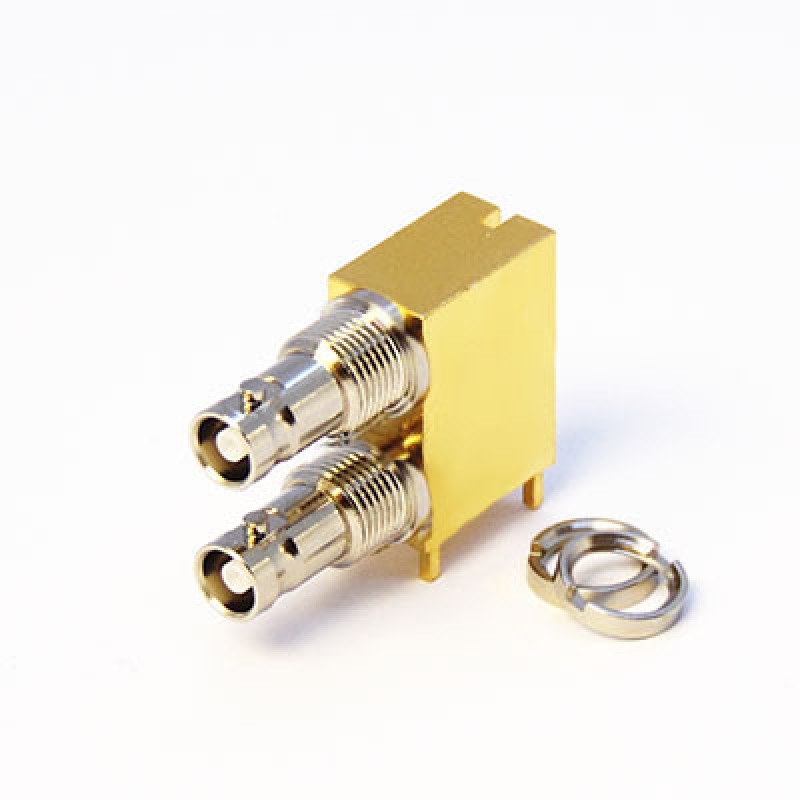

The C-SX-207 is a dual port Micro BNC connector with a through hole pin connector, which features enlarged flanges at their mating parts and the connector body is finished with gold plate. The connector is supplied with two M6 circular nuts. Other finishes are also available.
