A DIN 1.0/2.3 slotted nut driver for M5.5 circular nuts.

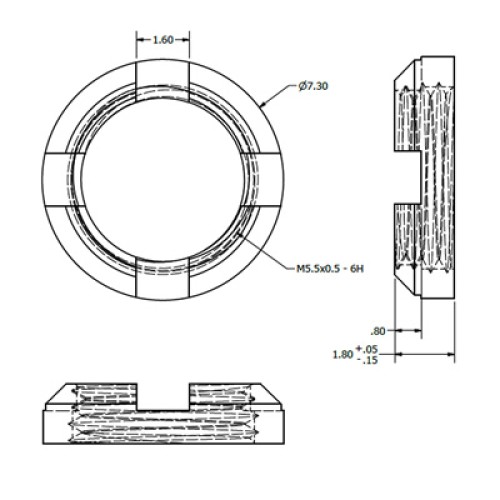

The ANG-C4-BBN-1.80 is a 4 slot circular Din 1.0 / 2.3 nut which is 1.8mm thick and made from Brass with nickel plating.
This part was previously sold under part number 71X-0058-33.
| Body Finish | Brass / Ni |
A DIN 1.0/2.3 slotted nut driver for M5.5 circular nuts.
The XGS-06-RB26-NGU is a right angle PCB bulkhead mounted connector with a protective sleeve to the contact which conforms to the standards of SMPTE ST 2081-1 and CoaXPress 2.0, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch and low profile of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications.
The XGS-06-TB27-NNLU is a top entry PCB bulkhead mounted connector with a protective sleeve over the contact which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications. The connector has a leg length of 2.7mm with a longer body and bulkhead section for panel mounting.
The XGS-06-EB16-GG is a low profile PCB edge mounted connector which conforms to the standard of SMPTE ST 2081-1 , allowing bit-rates of 5.94bit/s over a single coaxial connection. The 8mm pitch of the connector enables high wiring densities and is optimised for use in 6G HD-SDI applications. The connector is gold plated, but can also be purchased as a nickel plated option and is for a PCB thickness of 1.6mm.
The XGS-06-EB16-NN is a low profile PCB edge mounted connector which conforms to the standard of SMPTE ST 2081-1 , allowing bit-rates of 5.94bit/s over a single coaxial connection. The 8mm pitch of the connector enables high wiring densities and is optimised for use in 6G HD-SDI applications. The connector is nickel plated, but can also be purchased as a gold plated option and is for a PCB thickness of 1.6mm.
The XGS-06-EB16-NNL is a low profile PCB edge mounted connector which conforms to the standard of SMPTE ST 2081-1 , allowing bit-rates of 5.94bit/s over a single coaxial connection. The 8mm pitch of the connector enables high wiring densities and is optimised for use in 6G HD-SDI applications. The connector is for a PCB thickness of 1.6mm and features a longer body.
The XGS-06-RB20-NGL precision 75Ω DIN 1.0/2.3 Connector is a right angle PCB mounted bulkhead connector with tall body. This range of connectors meets the SMPTE ST-2081 standard and is ideal for use in industrial process control and data acquisition applications
The XGS-06-RB26-NG is a right angle PCB bulkhead mounted connector which conforms to the standard of SMPTE ST 2081-1 and CXP-6, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch and low profile of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications.
The XGS-06-TB27-GG is a top entry PCB bulkhead mounted connector which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications. The connector has 2.7mm leg length and a bulkhead thread for panel mounting.
This connector replaces the C-SX-099G offering better performance at 3GHz and all frequencies up to 6GHz, whilst also being a cost effective alternative.
The XGS-06-TB27-NN is a top entry PCB bulkhead mounted connector which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications.
The XGS-06-TB27-NNL is a top entry PCB bulkhead mounted connector which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications. The connector has a 2.7mm leg length and a longer body.
Our 6 GHz Precision DIN 1.0/2.3 coaxial connectors comply with SMPTE ST2081.1 and CXP-6 standards, supporting data rates up to 5.94 Gbit/s per channel with superior signal integrity and reliability. For maximum space efficiency, the DIN 1.0/2.3 stacking connectors are engineered for high-density diagonal array configurations within the PCIe standard form factor. They can be manufactured in tall-and-short or short-and-tall combinations, with any number of interfaces integrated into a single connector array, delivering unmatched design flexibility. CEI provides custom array drawings with dedicated part numbers, simplifying system integration.
Each connector features a through-hole pin and is precisely tuned to minimize crosstalk at higher frequencies, ensuring stable performance in demanding applications.
Our 6 GHz Precision DIN 1.0/2.3 coaxial connectors comply with SMPTE ST2081.1 and CXP-6 standards, supporting data rates up to 5.94 Gbit/s per channel with superior signal integrity and reliability. For maximum space efficiency, the DIN 1.0/2.3 stacking connectors are engineered for high-density diagonal array configurations within the PCIe standard form factor. They can be manufactured in tall-and-short or short-and-tall combinations, with any number of interfaces integrated into a single connector array, delivering unmatched design flexibility. CEI provides custom array drawings with dedicated part numbers, simplifying system integration.
Each connector features a through-hole pin and is precisely tuned to minimize crosstalk at higher frequencies, ensuring stable performance in demanding applications
