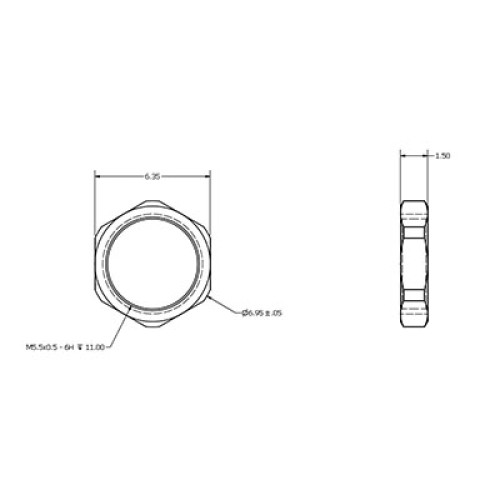

The ANG-H0-BBN-1.50 is a DIN 1.0/2.3 M5.5 Hex Nut which is made from Brass with a nickel plating.
This nut was previously sold as part number 71X-0068-33.
| Body Finish | Brass / Ni |

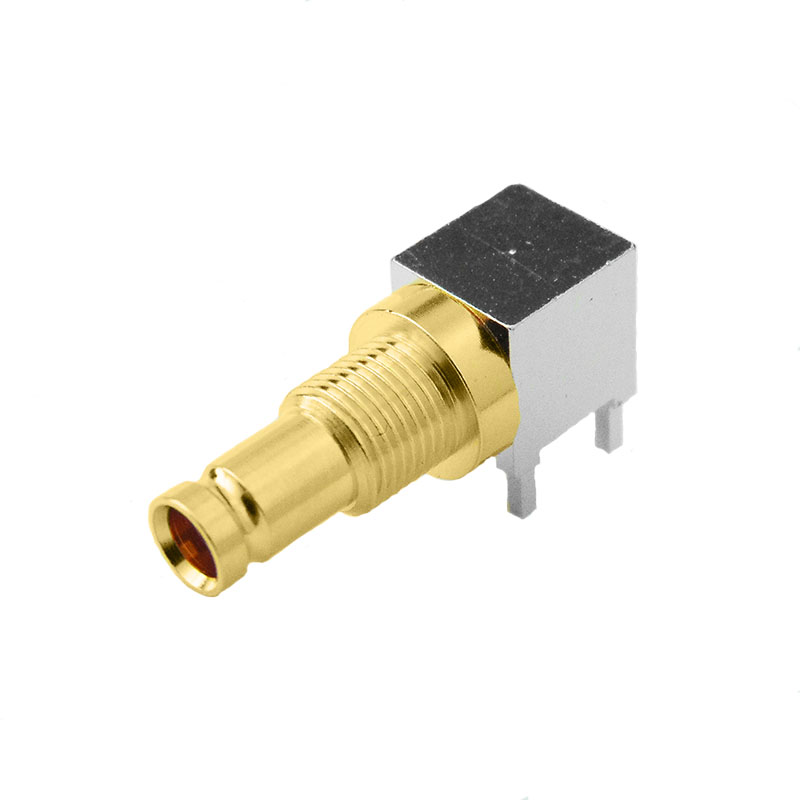

The XGS-06-RB26-NGU is a right angle PCB bulkhead mounted connector with a protective sleeve to the contact which conforms to the standards of SMPTE ST 2081-1 and CoaXPress 2.0, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch and low profile of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications.

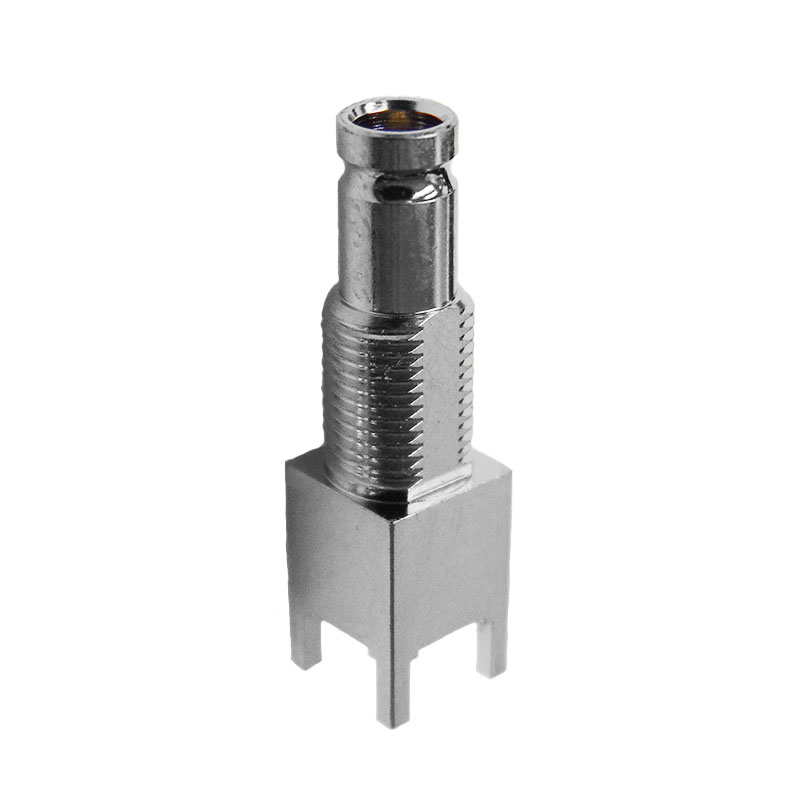

The XGS-06-TB27-NNLU is a top entry PCB bulkhead mounted connector with a protective sleeve over the contact which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications. The connector has a leg length of 2.7mm with a longer body and bulkhead section for panel mounting.
The XGS-06-EB16-GG is a low profile PCB edge mounted connector which conforms to the standard of SMPTE ST 2081-1 , allowing bit-rates of 5.94bit/s over a single coaxial connection. The 8mm pitch of the connector enables high wiring densities and is optimised for use in 6G HD-SDI applications. The connector is gold plated, but can also be purchased as a nickel plated option and is for a PCB thickness of 1.6mm.
The XGS-06-EB16-NN is a low profile PCB edge mounted connector which conforms to the standard of SMPTE ST 2081-1 , allowing bit-rates of 5.94bit/s over a single coaxial connection. The 8mm pitch of the connector enables high wiring densities and is optimised for use in 6G HD-SDI applications. The connector is nickel plated, but can also be purchased as a gold plated option and is for a PCB thickness of 1.6mm.
The XGS-06-EB16-NNL is a low profile PCB edge mounted connector which conforms to the standard of SMPTE ST 2081-1 , allowing bit-rates of 5.94bit/s over a single coaxial connection. The 8mm pitch of the connector enables high wiring densities and is optimised for use in 6G HD-SDI applications. The connector is for a PCB thickness of 1.6mm and features a longer body.
The XGS-06-RB20-NGL precision 75Ω DIN 1.0/2.3 Connector is a right angle PCB mounted bulkhead connector with tall body. This range of connectors meets the SMPTE ST-2081 standard and is ideal for use in industrial process control and data acquisition applications
The XGS-06-RB26-NG is a right angle PCB bulkhead mounted connector which conforms to the standard of SMPTE ST 2081-1 and CXP-6, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch and low profile of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications.
The XGS-06-TB27-NN is a top entry PCB bulkhead mounted connector which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications.

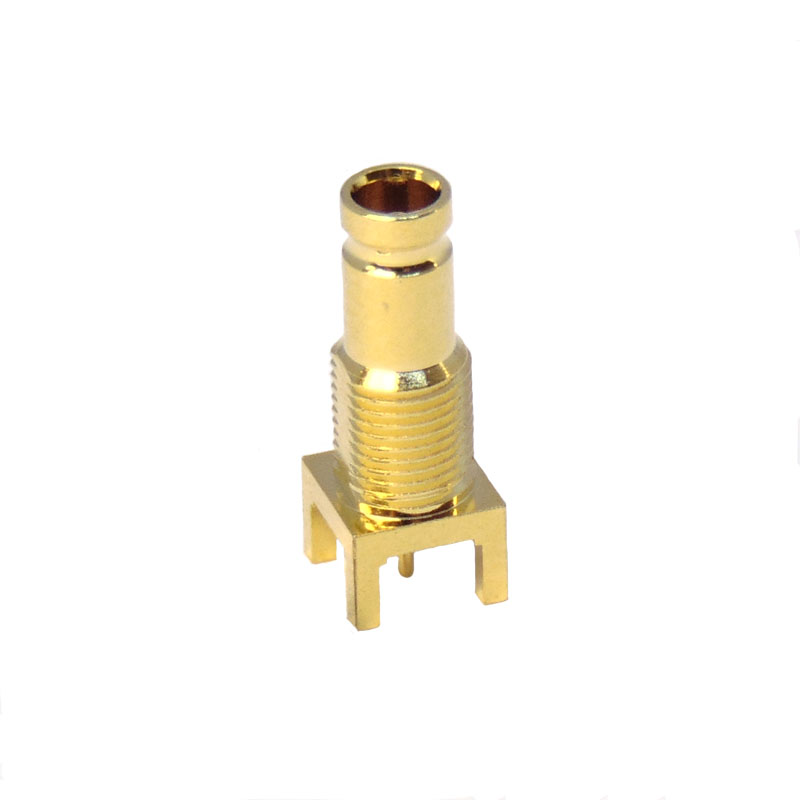

The XGS-06-TB27-GG is a top entry PCB bulkhead mounted connector which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications. The connector has 2.7mm leg length and a bulkhead thread for panel mounting.
This connector replaces the C-SX-099G offering better performance at 3GHz and all frequencies up to 6GHz, whilst also being a cost effective alternative.

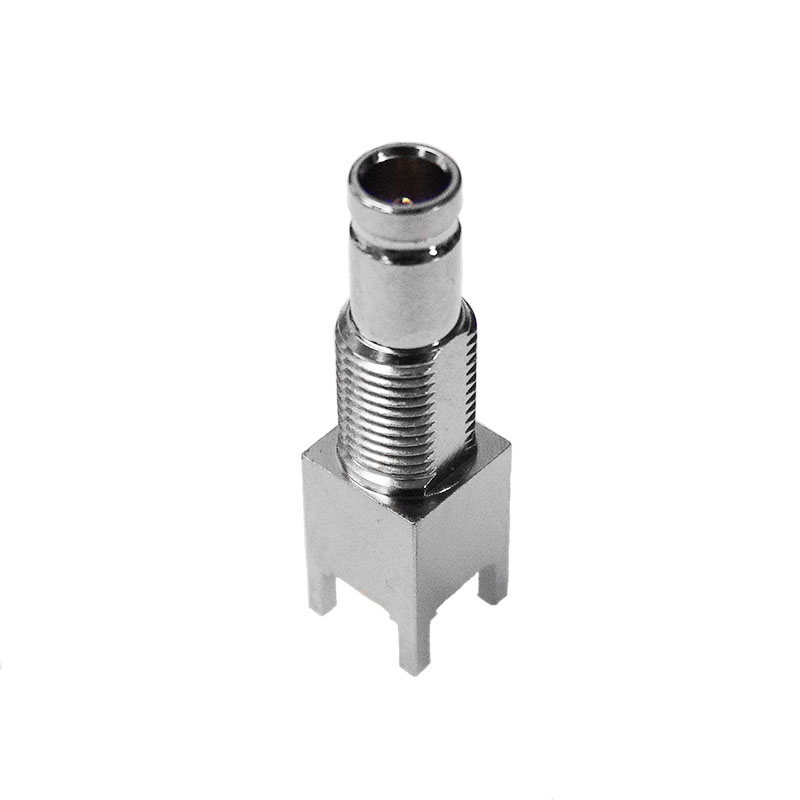

The XGS-06-TB27-NNL is a top entry PCB bulkhead mounted connector which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications. The connector has a 2.7mm leg length and a longer body.
