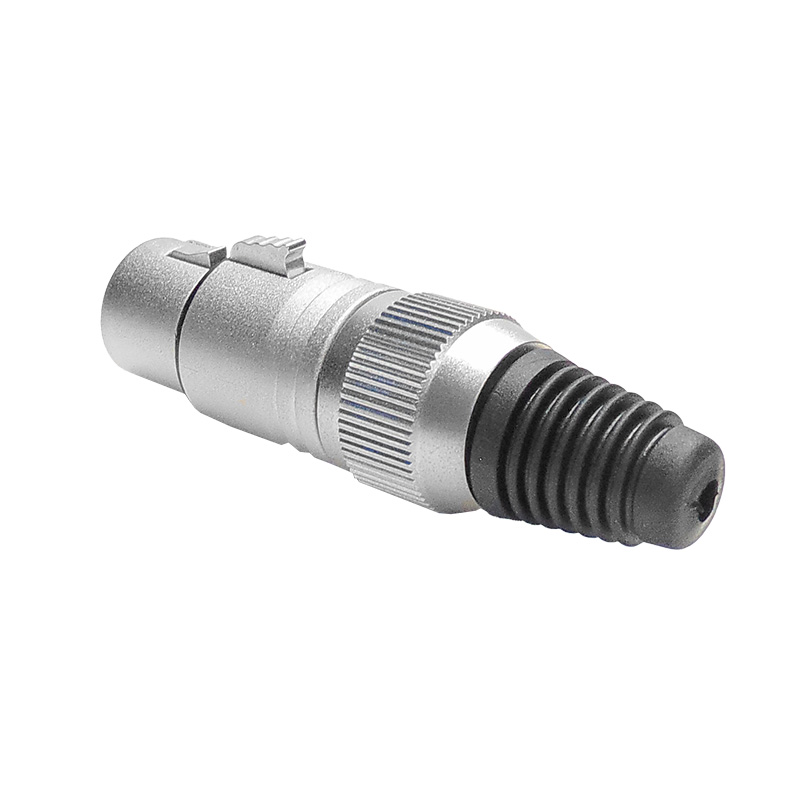

This high quality cable mounted socket is designed for professional microphone and audio-visual equipment wiring. Fully compliant with IEC 61076-2-103, it delivers outstanding electrical performance and long term reliability in demanding environments.
The connector body is manufactured from precision die cast zinc alloy, lathe finished for consistency, and black chrome plated to ensure durability and an attractive surface finish. A high strength, temperature resistant PBT insulator provides excellent electrical insulation and high voltage resistance.
The contact pins are produced from phosphor bronze and plated in nickel to ensure efficient conductivity and extended mating life. Plastic gland and cable clamps accommodate cable diameters up to 4.7mm, providing secure strain relief during installation.
Available in different pin variations:
AXCS-3S-ZBPN1-B – 3 Pin
AXCS-4S-ZBPN1-B – 4 Pin
AXCS-5S-ZBPN1-B – 5 Pin
Key Features:
- Precision die-cast zinc alloy body, lathe-finished and black chrome plated
- PBT engineering-grade insulator with excellent electrical and high-voltage resistance
- Phosphor bronze contact pins with nickel plating for superior conductivity and long service life
- Plastic gland and cable clamps supports up to 4.7mm cable diameters and provide reliable strain relief
- Available as a standalone connector or as part of a complete cable assembly
