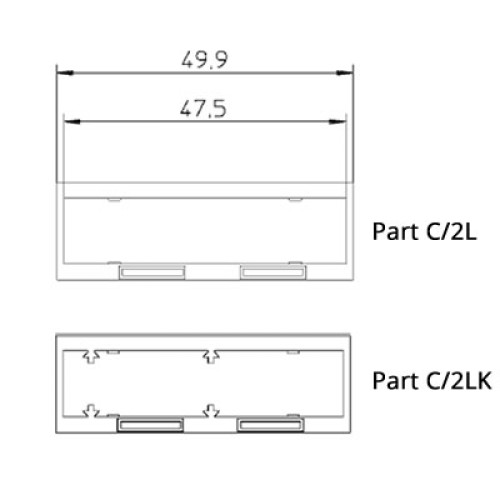

The DIN 41612 C/2 type body offers an array of contact arrangements over 3 rows but is half the length of the standard C body at  a maximum width of 55mm.It is available in both male and female connection types.

This is a PCB mounted connector and is offered with right angle and straight solder tails for 1.6mm PCB thicknesses. For PCB boards of 2.4mm thick or if press-in termination is required for 1.5 to 4.0mm depth, then a  longer straight solder tail specification is available. Wire wrap tail and hand solder eyelets are also available.

Each DIN 41612 connector is offered with a number of different contact and termination finishes.
