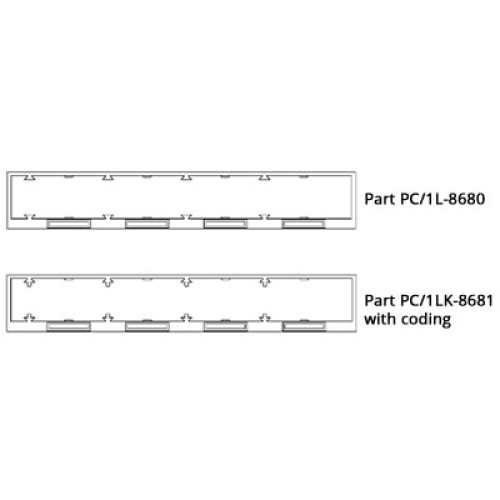

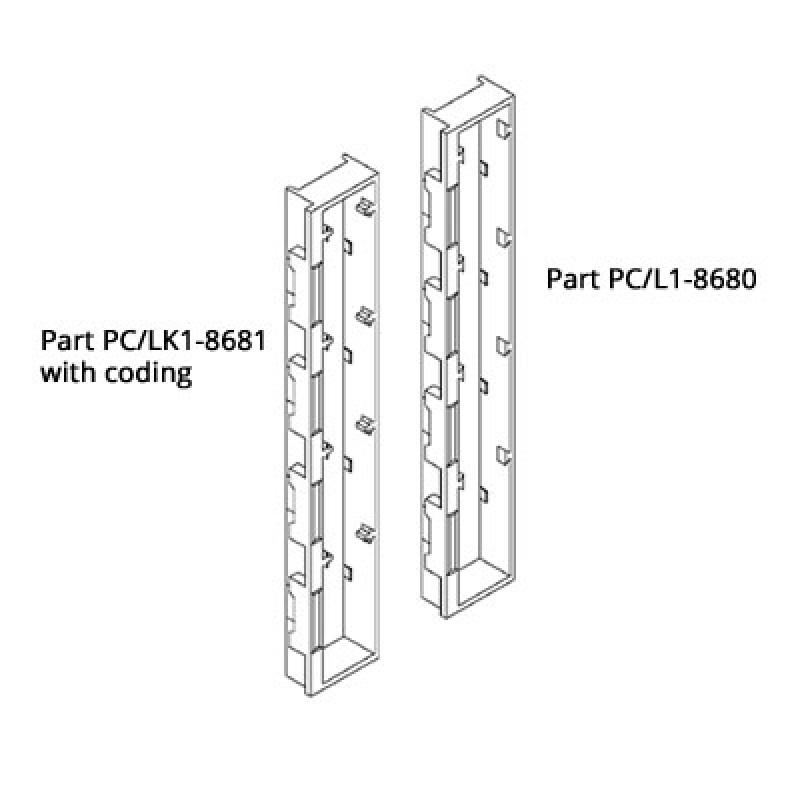

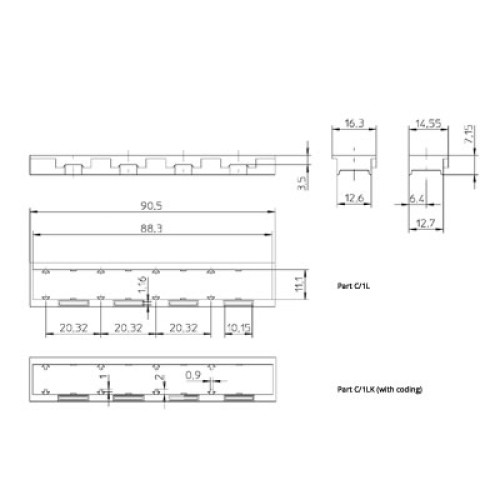

C Body Locking Frame

C Body DIN 41612

The DIN 41612 C type body offers an array of contact arrangements over 3 rows. The standard C body has an overall size of 95mm and can be in both male and female connection types.

This is a PCB mounted connector and is offered with right angle and straight solder tails for 1.6mm PCB thicknesses .For PCB boards of 2.4mm thick or if press-in termination is required for 1.5 to 4.0mm depth, then a longer straight solder tail specification is available. Wire wrap tail and hand solder eyelets are also available.

Each DIN 41612 connector is offered with a number of different contact and termination finishes.

Latch

The PCL is a glass fibre filled polyester latch for use with the DIN 41612 locking frames.

Shroud For C Body Locking Frames

The PCS range are shrouds for use with the C/1L and PC/1L locking frames for C body DIN 41612. The shroud is available in 2 sizes, PCS5.5 for pin lengths of 13mm and PCS12.5 for pin lengths of 20mm. Both are suitable for use with a 2.4mm PCB thickness.
