CC16-XXP-FA-PMX – M16 Front Fastening Plug (A Code)
CC16-XXP-FA-PMX – M16 Front Fastening Plug (A Code)

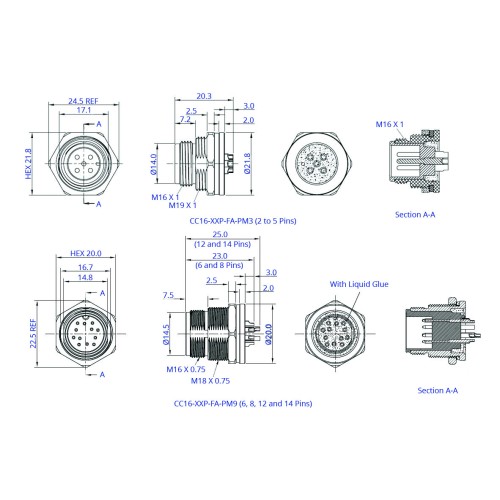

Download Engineering Drawing
Download Full Datasheet
Request 3D Model / Engineering Data
Request Quotation / Sample

CC16-XXP-FA-PMX – M16 Front Fastening Plug (A Code)

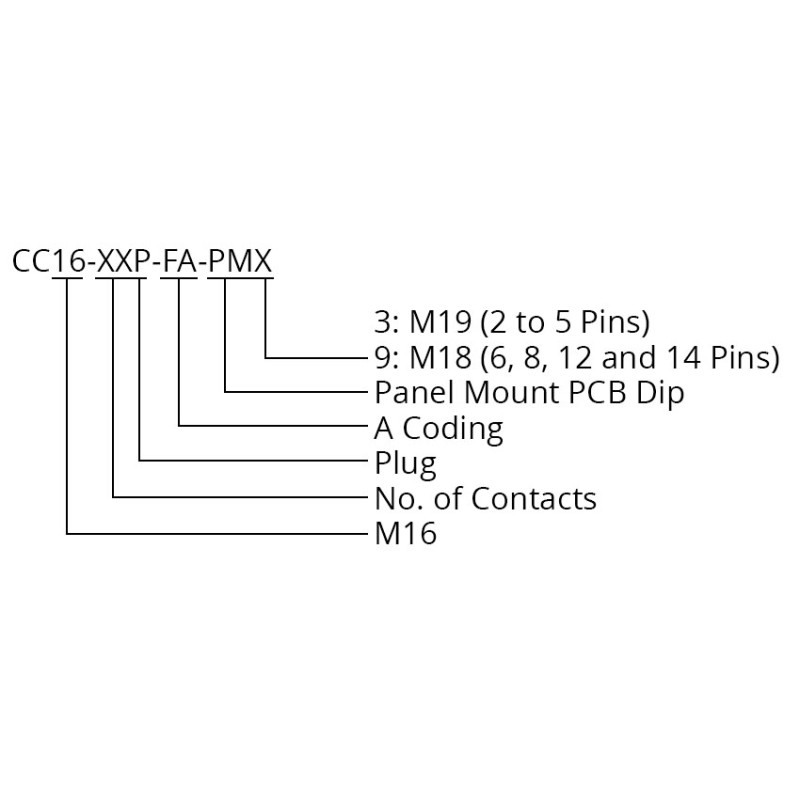

Product Code: CC16-XXP-FA-PMX

The CC16-XXP-FA-PMX is a M16 circular plug connector which is available with 2 to 14 pin options in an A coding. The connector is front fastening panel mounted and features solder buckets to the rear for mounting on cable. The connector can be purchased as a single connector or as part as a standard cable assembly (part number SCA16-XXPFAX-XXXX) or a bespoke cable assembly with different termination options.

Features

  • Solder buckets for cable mounting
  • Available in A coding
  • 2 to 6, 8, 12 and 14 Pins
Withstanding Voltage 500V AC/Minute
Contact Resistance ≤5mΩ
Insulation Resistance ≥100MΩ
Current Rating 10A AC/DC (2 to 5 Pins), 5A AC/DC (6 and 8 Pins), 3A AC/DC (12 and 14 Pins)
Voltage Rating 60V AC/DC
Insulators UL94V-0 Black
Contacts Brass Gold Plated
Connector Body Brass Nickel Plated
Nut Brass Nickel Plated
Waterproof Rating IP67
Operating Temperature -40 to 100oC
Mounting Type Cable
Coding A

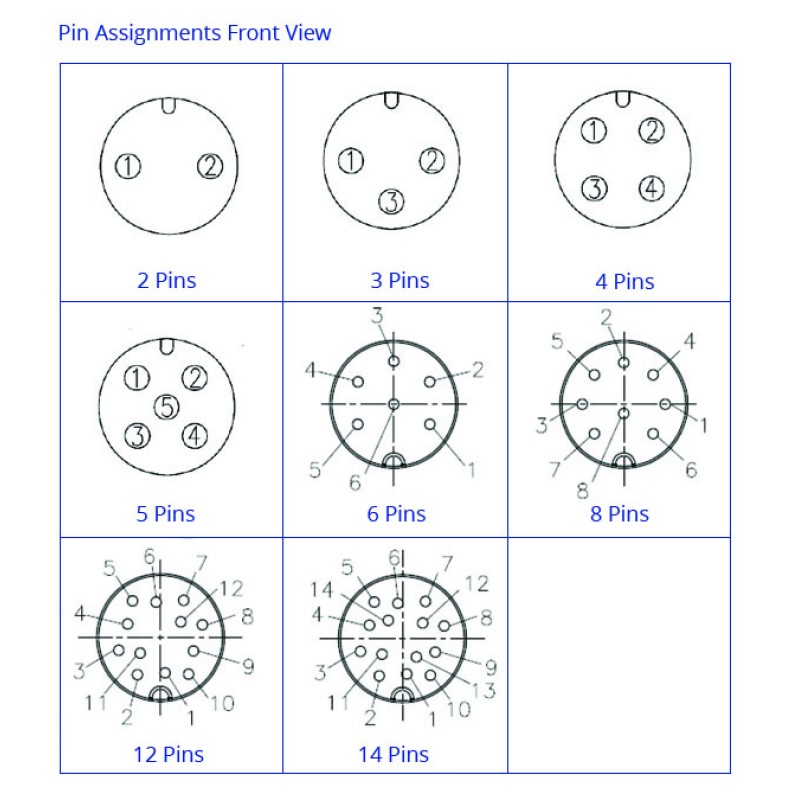

Contact 2, 3, 4, 5, 6, 8, 12, 14
