TLG110 - Hand Crimp Tool for Coaxial Connectors (Green)

XBT-1068-BGXX – BNC Plug for 12G Applications (Professional Version)

Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVision™ Brand name, while
meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve peak design performance we recommend using Cambridge Connectors 12GHz CoaxVision™ BNC plug and socket.

The XBT-1068-BGXX connector is an cable mounted plug which can be used with Belden cables types 1694A, 4694R, 4855R, 4505R and 4794R.

The following tools are recommended for use with this connector:
XBT-1068-BGAS = TLG 110

XBT-1069-NGXX – BNC Plug for 12G Applications (Standard Version)

The XBT-1069-NGXX connector is a cable mounted plug which can be used with Belden cable types 1694A, 4694R, 4855R, 4505R and 4794R.

The following tools are recommended for use with this connector:
XBT-1069-NGAB = TLG 109
XBT-1069-NGAS = TLG 124
XBT-1069-NGBA = TLG 109 or TLG 110
XBT-1069-NGDE = TLG 109 or TLG 110

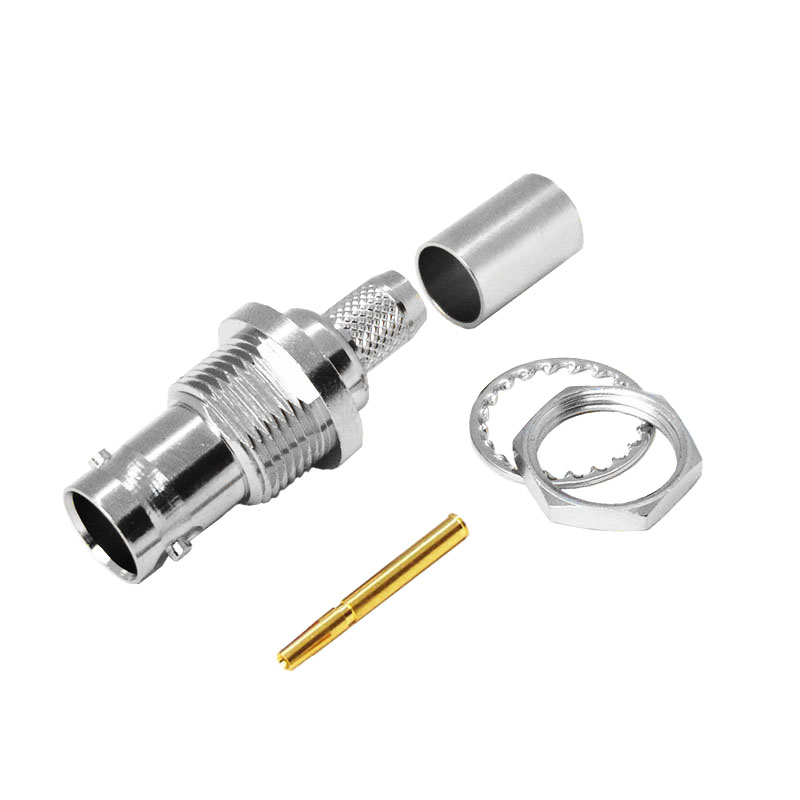

XBT-1064-NGXX – BNC Bulkhead Cable Mounted Socket

Cambridge Connectors range of three part cable terminating connectors feature precision 75Ω BNC connectors, available in male and female connection types and for a wide range of cable styles., including Belden 1505A, 1694A, 1855A and RG179.

The XBT-1064-NGxx features a BNC bulkhead socket.

The following Crimp Tools are advised for this connector type:
XBT-1064-NGAS = TLG 110 and TLG 111
XBT-1064-NGBA = TLG 111

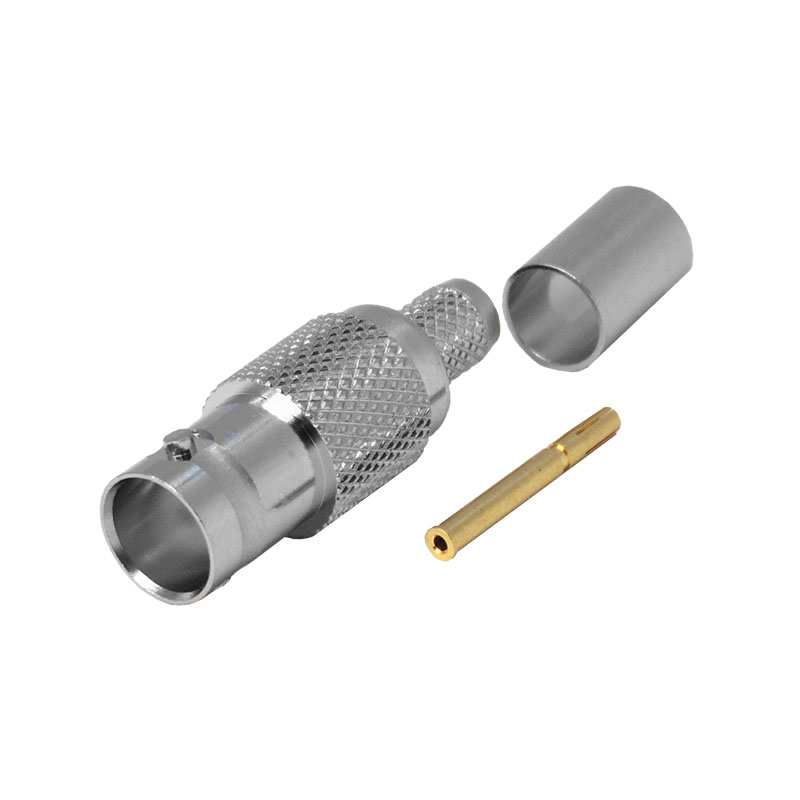

XBT-1066-NGXX – BNC Free Cable Socket

The XBT-1066-NGxx features a BNC free cable socket.

The following tools are recommended for use with this connector:
XBT-1066-NGAS = TLG 110 and TLG 111
XBT-1066-NGBA = TLG 111

XBT-1062-NGXX – BNC Free Cable Mounted Plug

The XBT-1062-NGXX is a precision 75Ω BNC plug. The connector is available for several cable types including Belden 1505A, 1694A, 1855A and RG179.

The following tools are recommended for this connector:
XBT-1062-NGAB = TLG 110
XBT-1062-NGAF = TLG 116 and TLG 110
XBT-1062-NGAS = TLG 110
XBT-1062-NGBA = TLG 110

C-SX-159 – Cable Mounted Non Latching Connector

The C-SX-159 is part of our legacy range and is available to new and existing customers, as a manufactured to order part. For new designs, our XGT-8013-NGXX offers all frequencies up to 6GHz with improved performance at the lower frequencies and is a cost-effective option when compared to the 3GHz options.

The C-SX-159 precision 75Ω DIN 1.0/2.3 Connector is a cable mounted non latching connector. This range of connectors meets the SMPTE 424M standard and is ideal for use in applications where quick release is a requirement.

The following tools are recommended for use with this connector:
C-SX-159 = TLG 109 or TLG 110

XGT-8012-NGXX – DIN 1.0 / 2.3 Free Cable Socket

The XGT-8012-NGXX is a cable-mounted socket for frequencies up to 6GHz, depending on the cable type selected. Made for cable of 75Ω rating, the connector is suitable for cable groups AF (RG179B/U) and BA (1855A, 4855R and mini RG59) and BG (UHD 0.6/2.6 B1855A & B4855R & B1855ENH).

The following tools are recommended for use with this connector:
XGT-8012-NGAF = TLG 116
XGT-8012-NGBA = TLG 109 or TLG 110
XGT-8012-NGBG = TLG 116

XGT-8015-NGBA – DIN 1.0 / 2.3 Screw On Cable Mounted Plug

The XGT-8015-NGBA is a cable mounted DIN 1.0 / 2.3 which features a screw on locking system. The connector is suitable for cables in the BA group of cables including 1855A, 4855R and mini RG59. This a precision 75Ω connector which meets the STMPE ST 2081 standard, which allows 6Gbits/s speed to be acheived over a single connection.

The following tools is recommended for use with this connector:
XGT-8015-NGBA = TLG 109 or TLG 110

XBT-1070-NGBA – BNC Socket for 12G Applications

The XBT-1070-NGBA cable mounted BNC free socket, suitable for cables in the group BA, which includes Belden 1855A, 4855R and mini RG59. The connector provides a high reliability low cost option, while still providing speeds of 12Gbits/s over a single channel and meeting the SMPTE ST-2082 12G-SDI specification.

The following tools are recommended for use with this connector:
XBT-1070-NGBA = TLG 109 or TLG 110

XBT-1071-NGBA – BNC Bulkhead Cable Mounted Socket

Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and meeting the JIIA CoaXPress specification. These high
performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 12GHz BNC plugs, designed for use with in the BA cable group such as Belden 1855A and 4855R.

The XBT-1071-NGBA connector is a cable mounted BNC plug, which can be used with Belden cables for 12G applications.

The following tool is recommended for this connector:
XBT-1071-NGBA = TLG 109 or TLG 110

XGT-8004-NGBA – Right Angle Cable Mounted 1.0 / 2.3 Plug

The XGT-8004-NGBA is a right angle cable mounted plug, which is suitable for frequencies up to 6GHz and is designed for cables in the BA group which includes Mini RG59 and Belden 1855A.

The following tools are recommended to use with this connector:
XGT-8004-NGBA = TLG 109 or TLG 110

XPT-D002-NGBA – Micro BNC Cable Terminated Free Socket for 12G Applications

Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are
mateable with any standard Micro BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 12GHz Micro BNC plugs, designed for use with 12GHz cable (such as Belden 1855A).

The XPT-D002-NGBA connector is a cable mounted Micro BNC free socket, which can be used with Belden cables for 12G applications and has a bayonet coupling.

The following tools are recommended for use with this connector:
XPT-D002-NGBA = TLG 109 or TLG 110

XPT-D003-NGBA – Micro BNC Cable Terminated Bulkhead Socket for 12G Applications

The XPT-D002-NGBA connector is a cable mounted Micro BNC bulkhead socket, which can be used with Belden cables for 12G applications and has a bayonet coupling.

The following tools are recommended for use with this connector:
XPT-D003-NGBA = TLG 109 or TLG 110

XPT-D005-NGBA – Micro BNC Cable Terminated Plug for 12G Applications

Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 12GHz Micro BNC plugs.

The XPT-D005-NGBG connector is a cable mounted right angle Micro BNC plug, designed for use with 12GHz cable (such as Belden 1855A B4855R, UHD-0.6/2.6).

The following tools are recommended for use with this connector:
XPT-D005-NGBG = TLG 109 or TLG 110

XGT-8016-NGDH – DIN 1.0 / 2.3 Right Angled Screw On Cable Mounted Plug

The XGT-8016-NGDH is a right-angled cable mounted DIN 1.0 / 2.3 which features a screw-on locking system. The connector is suitable for cables in the DH group of cables including 2.5C-2V Cable. This a precision 75Ω connector which meets the STMPE ST 2081 standard, which allows 6Gbits/s speed to be achieved over a single connection.

The following tool is recommended for use with this connector:
XGT-8016-NGDH = TLG109 or TLG110

TLG 110 – Hand Crimp Tool for Coaxial Connectors (Green)
