The ANB-C20ABN-2.50 is a circular BNC nut which is 2.5mm thick and nickel plated.
This nut was previously sold as 71X-0041-33

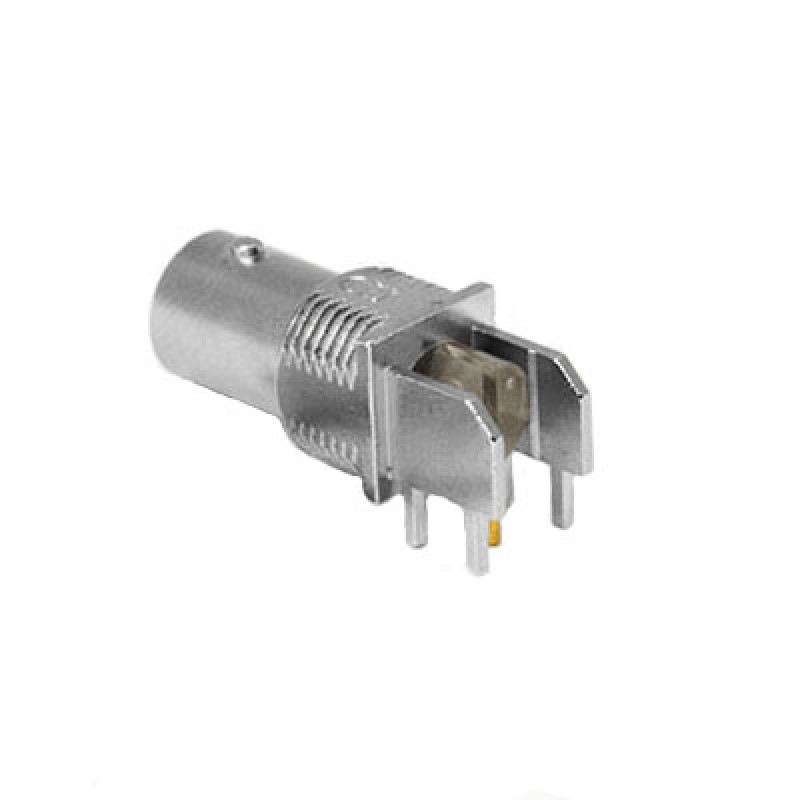

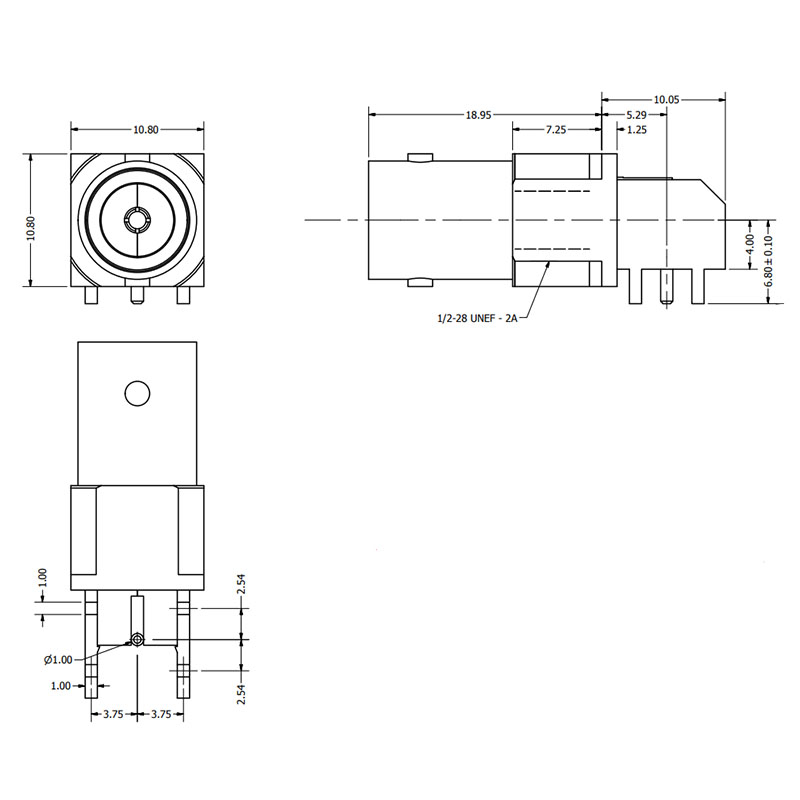

This precision 75Ω BNC Connector is a right angle mounted PCB connector with a selection of different leg lengths available. It also features PathfinderTM light pipe technology which aids port identification. With a centre line of 4mm above the board, its low profile permits closer packing densities of daughter boards, which allows reduction in the bulk of routing and switching equipment.
| Impedance | 75Ω |
| Frequency Range | 0 – 3GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Reflection Factor (VSWR) | 1.06 (max) DC – 1.5GHz 1.33 (max) 1.5 – 3GHz |
| Contact Resistance | Centre contact ≤ 1.5mΩ
Outer contact ≤ 1.0mΩ |
| Insulation Resistance | ≥ 5000mΩ |
| Metal Parts | Die Cast Zinc / Ni |
| Centre Pin | Phosphor Bronze / 10µ Au |
| Insulators | UL94 HB TPX |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 250 |
XBS-03-RB28-NNV is a connector only part (previously C-SX-101)
| Processing | Maximum wave and hand soldering temperature 265°C |
| Mounting Type | Right Angle |
| Leg Length | 2.8mm |
| Hardware | Available separately |
| Features | PathfinderTM |
The ANB-C20ABN-2.50 is a circular BNC nut which is 2.5mm thick and nickel plated.
This nut was previously sold as 71X-0041-33
The ANB-C2-ABG-2.50 is a circular BNC nut which is 2.5mm thick and gold plated.
This nut was previously sold as 71X-0041-36
The ANB-C2-ANO-4.00 is a circular BNC nut which is 4.0mm thick and made from nylon. It is available in other colours.
This part was previously sold under part number 71X-0046-00
The ANB-C4-ASN-2.50 is a 4 slot circular BNC nut which is 2.5mm thick and made from mild steel with a nickel plating. The mild steel material makes this particularly useful with magnetic tools.
This nut was previously sold as part number 71X-0057-33
The ANB-C2-ABN-3.50 is a circular BNC nut which is 3.5mm thick and made from brass with a nickel plating.
This part was previously sold as 71X-0063-33.
The standard hex nut is made from brass with a nickel plating.
This Hex Nut was previously sold as part number 71X-0018-33.
The BNC crinkle washer is made from brass with a nickel plating.
The crinkle washer was formerly sold under part number 71X-0043-33.
