The ANB-C20ABN-2.50 is a circular BNC nut which is 2.5mm thick and nickel plated.
This nut was previously sold as 71X-0041-33

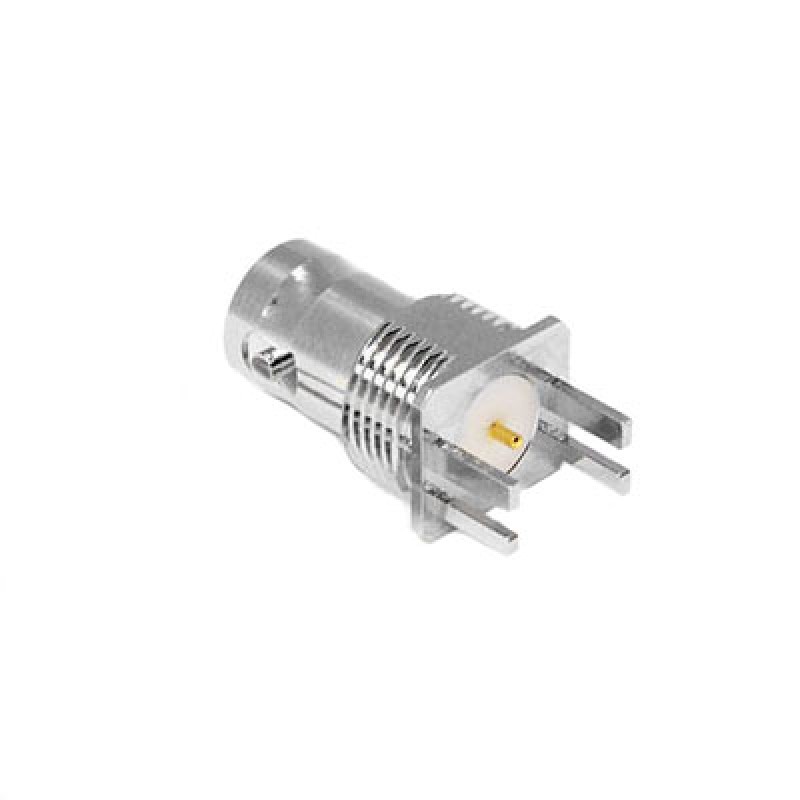

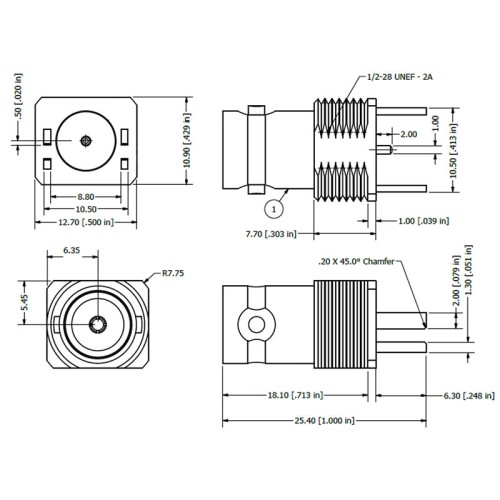

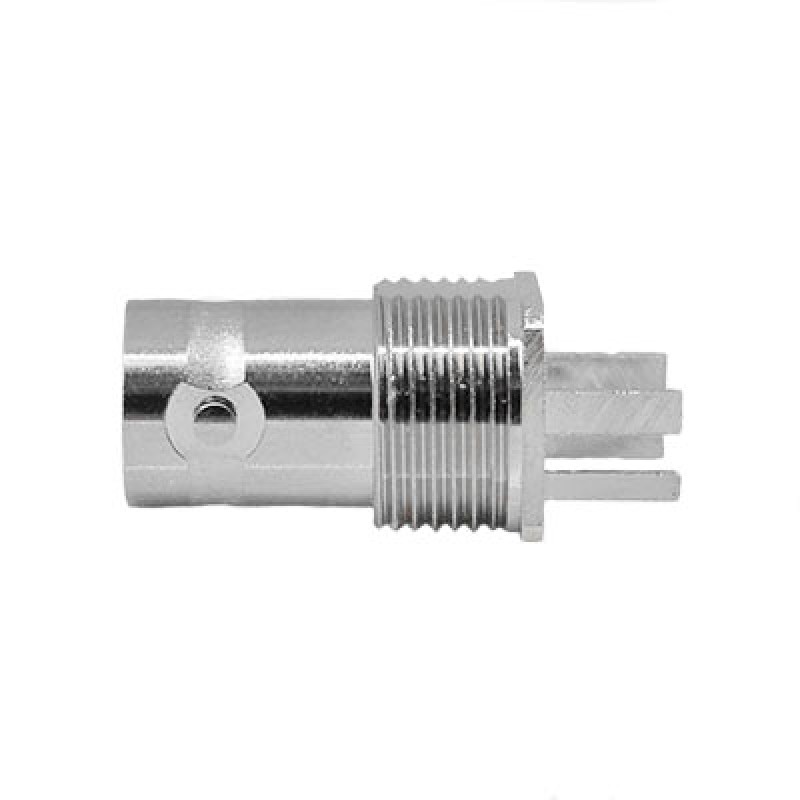

Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one connection. The BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using Cambridge Electronics 12GHz BNC Connectors in both halves. The XBS-12-EB16-NNS connector is an PCB edge mounting BNC socket for PCB thicknesses of 1.6mm
| Impedance | 75 ohm |
| Frequency Range | 0-12 GHz |
| Working Voltage | 500 Vrms |
| Dielectric Withstanding Voltage | 1500 Vrms |
| Centre Contact Resistance | 1.5 mΩ |
| Outer Contact Resistance | 1.0 mΩ |
| Insulation Resistance | 5000mΩ |
| Reflection Factor (VSWR) | 1.12 (max) DC-12 GHz |
| Connector Type | Female |
| Metal Parts | Brass/Nickel |
| Centre Pin | Phosphor Bronze / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85 °C |
| Mating Cycles | 200 |
This connector is available as:
XBS-12-EB16-NNS as a connector only part
XBS-12-EB16-NNS-AA when supplied with a hex nut and crinkle washer (formerly C-SX-141)
XBS-12-EB16-NNS-CA when supplied with a 2 slot circular nut and crinkle washer (formerly C-SX-160)
XBS-12-EB16-NNS-FA when supplied with a magnetic 4 slot circular nut and crinkle washer (formerly C-SX-141FT)
| Mounting Type | Edge Mounted |
| Board Thickness | 1.6mm |
| Hardware | Available separately |
The ANB-C20ABN-2.50 is a circular BNC nut which is 2.5mm thick and nickel plated.
This nut was previously sold as 71X-0041-33
The ANB-C2-ABG-2.50 is a circular BNC nut which is 2.5mm thick and gold plated.
This nut was previously sold as 71X-0041-36
The ANB-C2-ANO-4.00 is a circular BNC nut which is 4.0mm thick and made from nylon. It is available in other colours.
This part was previously sold under part number 71X-0046-00
The ANB-C4-ASN-2.50 is a 4 slot circular BNC nut which is 2.5mm thick and made from mild steel with a nickel plating. The mild steel material makes this particularly useful with magnetic tools.
This nut was previously sold as part number 71X-0057-33
The ANB-C2-ABN-3.50 is a circular BNC nut which is 3.5mm thick and made from brass with a nickel plating.
This part was previously sold as 71X-0063-33.
The standard hex nut is made from brass with a nickel plating.
This Hex Nut was previously sold as part number 71X-0018-33.
The BNC crinkle washer is made from brass with a nickel plating.
The crinkle washer was formerly sold under part number 71X-0043-33.
