Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using Cambridge Electronics 12GHz BNC

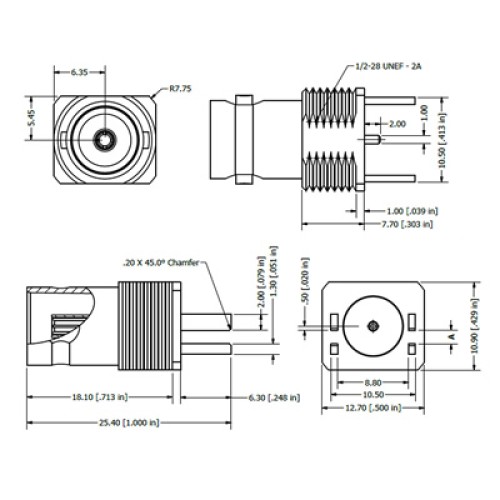

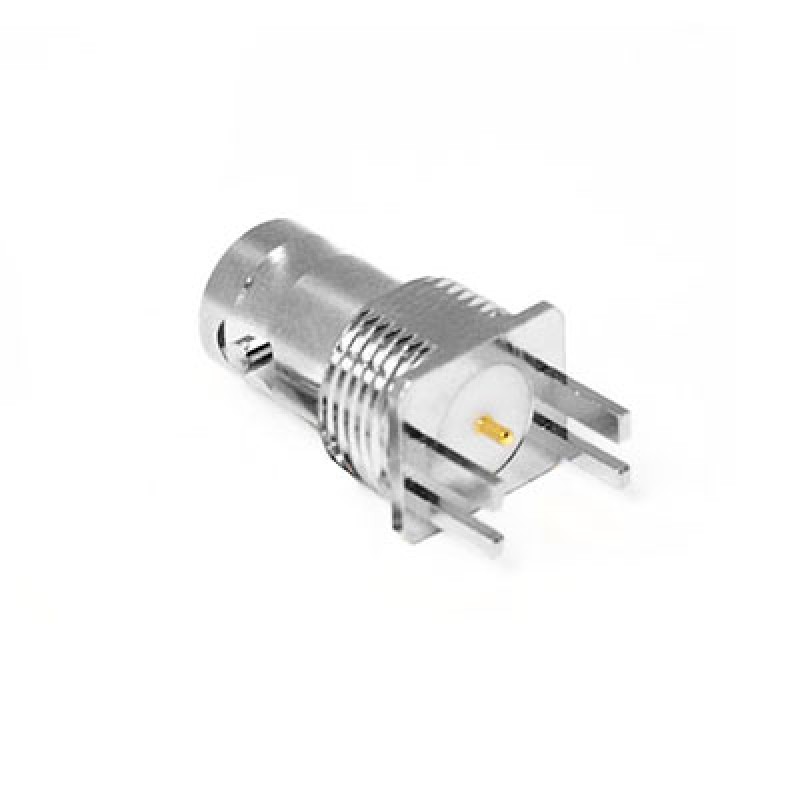

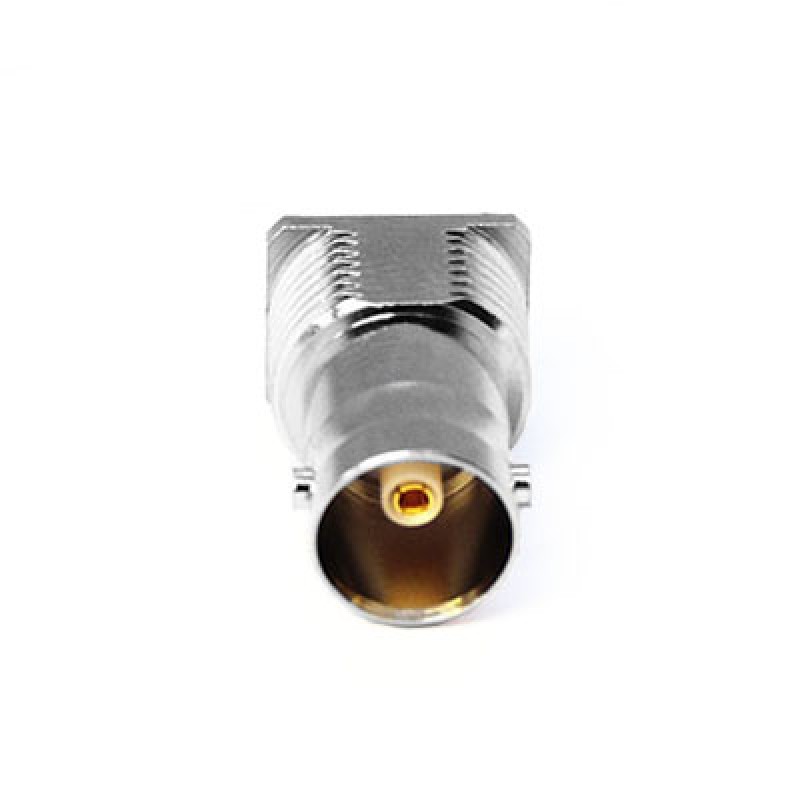

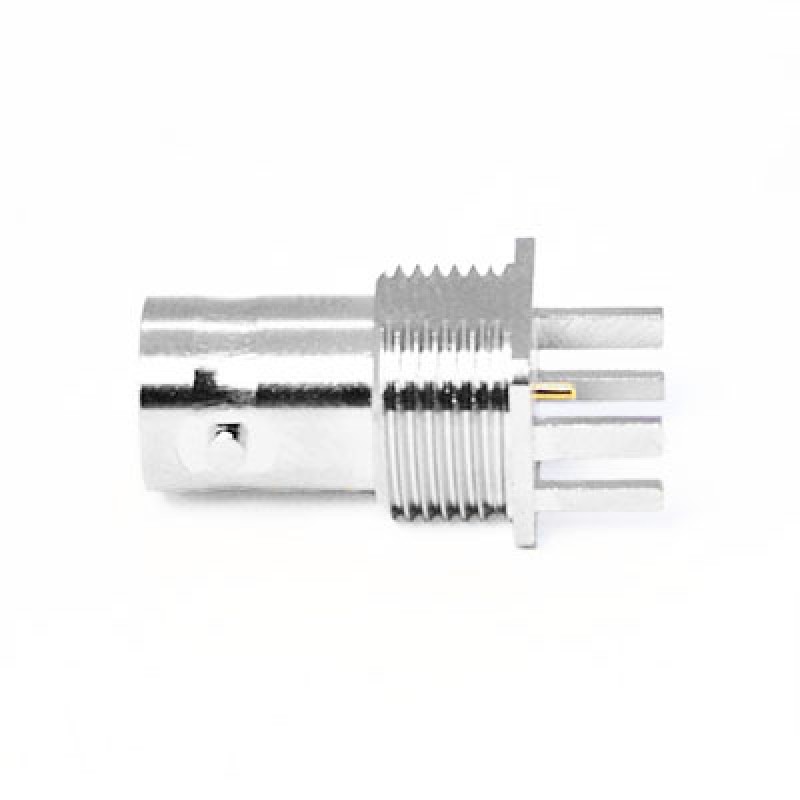

Connectors in both halves. The XBS-12-EB16-NNSU connector is an PCB edge mounting BNC socket for PCB thicknesses of 1.6mm and has a protective sleeve around the centre contact.
| Impedance | 75Ω |
| Frequency Range | 0 -12GHz |
| Working Voltage | 250Vrms |
| Dielectric Withstanding Voltage | 750Vrms |
| Contact Resistance | Centre contact 4.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | 5000mΩ |
| Reflection Factor (VSWR) | 1.19 (max) DC – 12GHz |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 200 |
This connector is available as:
XBS-12-EB16-NNSU as a connector only product
XBS-12-EB16-NNSU-AA when supplied with a hex nut and crinkle washer (formerly C-SX-158)
| Mounting Type | Edge Mounted |
| Board Thickness | 1.6mm |
| Hardware | Available separately |
| Processing | Maximum hand soldering temperature 265°C |
