Cambridge Connectors range of three part cable terminating connectors feature precision 75Ω BNC connectors, available in male and female connection types and for a wide range of cable styles., including Belden 1505A, 1694A, 1855A and RG179.

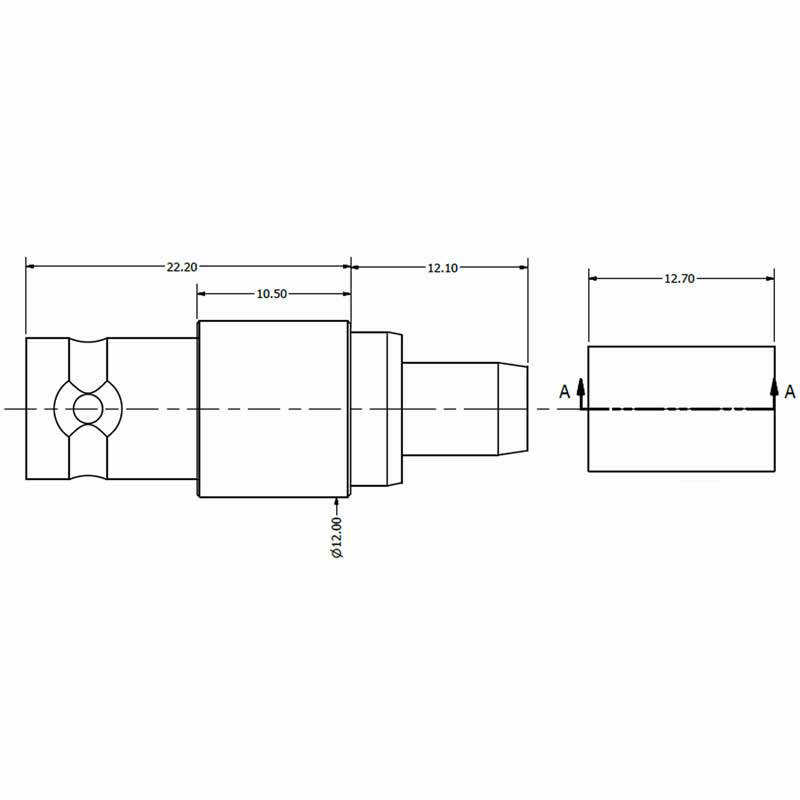

The XBT-1066-NGxx features a BNC free cable socket.
The following tools are recommended for use with this connector:
XBT-1066-NGAS = TLG 110 and TLG 111
XBT-1066-NGBA = TLG 111
| Impedance | 75Ω |
| Frequency Range | 0 – 6GHz |
| Mounting Type | Cable Mounted |
| Cable Types | Cable Group AS (RG6 – 1694A – 4694R) Cable Group BA (1855A – mini RG59 – 4855R – RG180BU) |
The CA-BCJHBP-MO-XXXXX is a BNC socket to Micro BNC plug coaxial cable assembly, which is suitable for frequencies up to 3GHz. The XXXXX in the part number denotes the length in mm and as these cables are made in-house, they can made to any length required. The patch cable uses Belden 1855A cable, which is rated at 75Ω impedance.
These cable assemblies are designed to meet the requirements of 3G-SDI Broadcast standards as well as the machine vision (CoaXpress) CXP-3 standard.
The CA-BCJHBP-MO-XXXXX is a BNC socket to DIN 1.0/2.3 plug coaxial cable assembly, which is suitable for frequencies up to 3GHz. The XXXXX in the part number denotes the length in mm and as these cables are made in-house, they can made to any length required. The patch cable uses Belden 1855A cable, which is rated at 75Ω impedance.
These cable assemblies are designed to meet the requirements of 3G-SDI Broadcast standards as well as the machine vision (CoaXpress) CXP-3 standard.
The TLG110 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XBT-1062-NGAB
XBT-1062-NGBA
XBT-1062-NGAS
XBT-1068-NGAS
The TLG111 is a crimp tool specifically designed to allow a wide range of cable styles to be easily terminated to the following Cambridge Electronic Industries parts:
XBT-1066-NGBA
XBT-1064-NGBA
XGT-8000-NGAS
