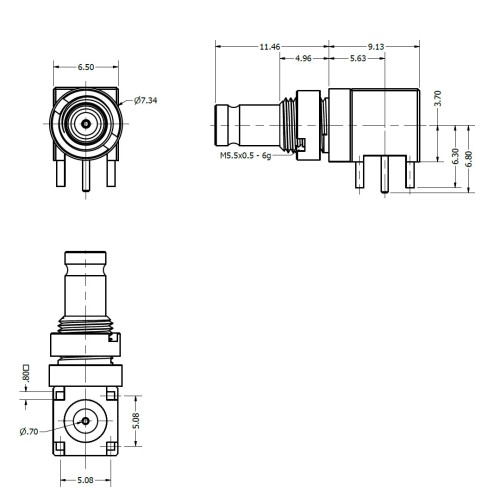

The XGS-06-RB26-NGU is a right angle PCB bulkhead mounted connector with a protective sleeve to the contact which conforms to the standards of SMPTE ST 2081-1 and CoaXPress 2.0, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch and low profile of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications.
| Impedance | 75Ω |
| Frequency Range | 0 – 6GHz |
| Working Voltage | 250Vrms |
| Dielectric Withstanding Voltage | 750Vrms |
| Contact Resistance | Centre contact 4.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | 1000MΩ |
| Reflection Factor (VSWR) | 1.15 (max) DC – 3GHz 1.30 (max) 3 – 6GHz |
| Connector Type | Female |
| Metal Parts | Brass / Ni / Au |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE (UL 94 V-0) |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
The connector is available as:
XGS-06-RB26-NGU as a connector only product
XGS-06-RB26-NGU-AZ when supplied with a 2 slot circular nut
| Mounting Type | Right Angled |
| Leg Length | 2.6mm |
| Hardware | Available separately |
| Processing | Please see datasheet for full details |
