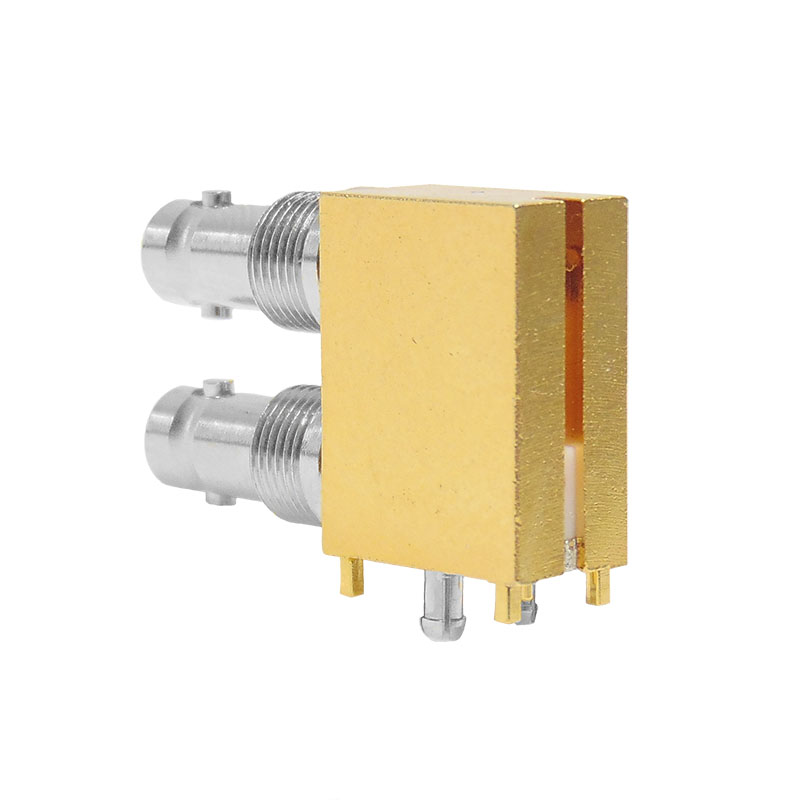

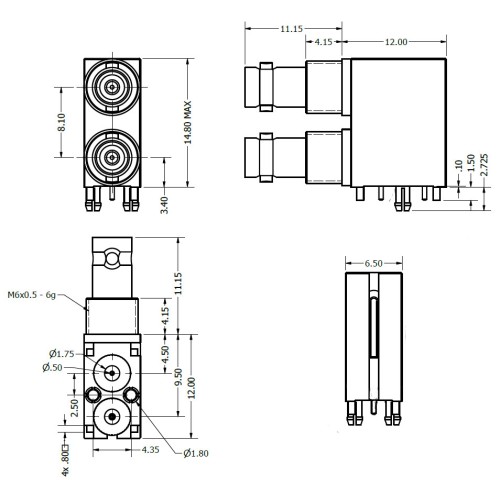

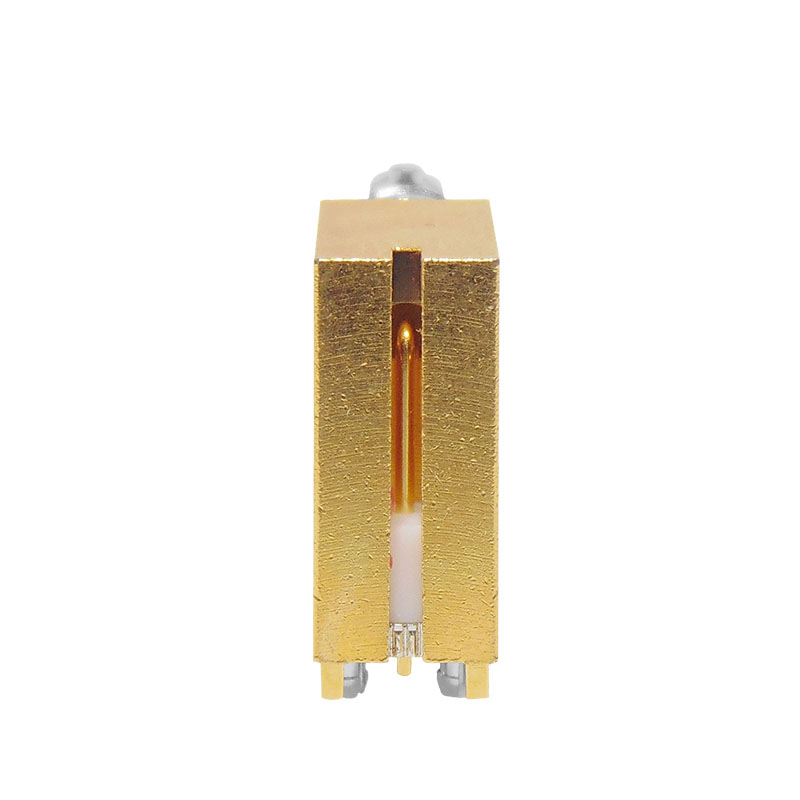

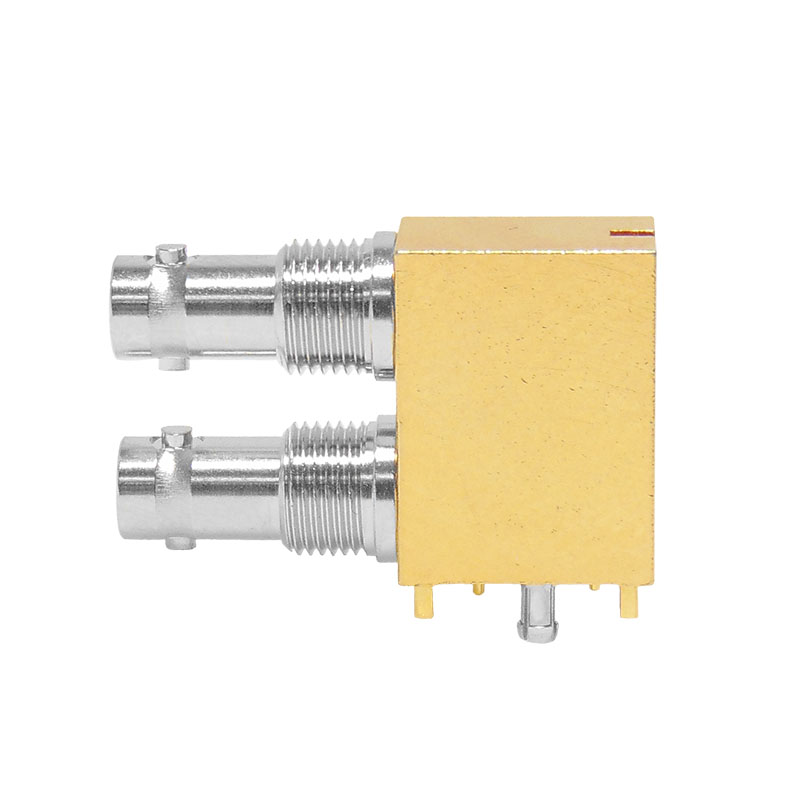

The design of this dual port connector allows for optimum signal integrity at 12GHz. It complies with the 4K/Quad HD and Ultra HD broadcast standards as well as the JIIA CXP-12 CoaXPress specification. The XPS-12-RB15-GNDHP features harpoons to assist with placement of the connector on the PCB, but contacts and ground pins of a shorter length, that are housed within the board (sub-terrain), which reduces the possibility for the signal to create either an antenna or crosstalk to other components on the board at the higher frequency range.
| Impedance | 75Ω |
| Frequency Range | 0 – 12GHz |
| Working Voltage | 250Vrms |
| Dielectric Withstanding Voltage | 750Vrms |
| Contact Resistance | Centre contact 4.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | 1000MΩ |
| Reflection Factor (VSWR) | 1.3 (max) 0 – 12GHz |
| Connector Type | Female |
| Metal Parts | Brass / Au / Ni |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
| Mounting Type | Right Angled |
| Hardware | Available separately |
| Processing | Maximum wave and hand soldering temperature 245°C |
The ANP-C2-DBN-1.50 is a 2 slot circular Micro BNC nut which is 1.5mm thick and made from brass with a nickel plating. This part is made for dual port Micro BNC’s and has a thread size of M6x0.5- 6H.
This part was previously sold under part number 71X-0069-33.
