The ANG-C2-BBN-2.30 is a standard 1.0 / 2.3 nut which is 2.30mm thick and made from Brass with nickel plating.
This nut was previously sold as part number 71X-0048-33.

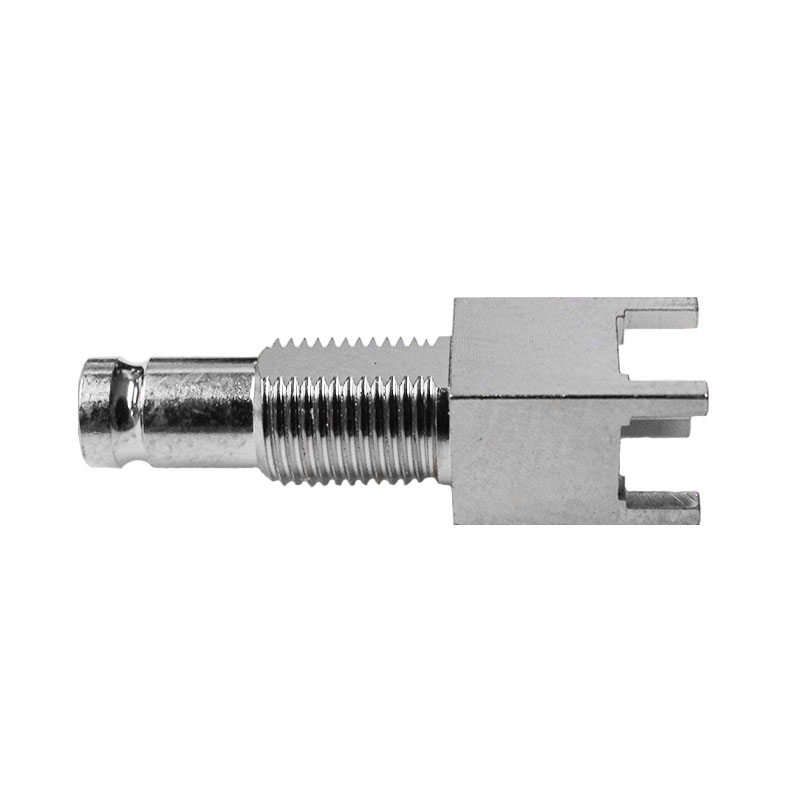

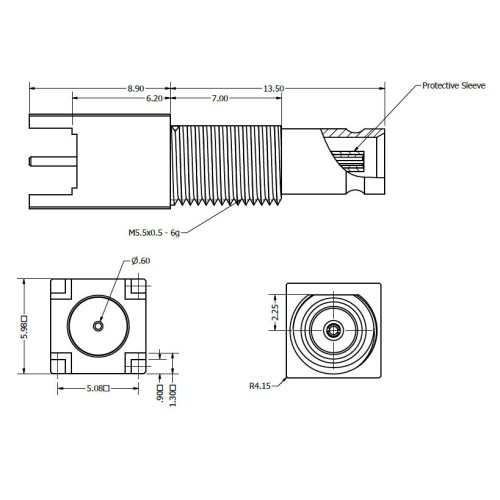

The XGS-06-TB27-NNLU is a top entry PCB bulkhead mounted connector with a protective sleeve over the contact which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications. The connector has a leg length of 2.7mm with a longer body and bulkhead section for panel mounting.
| Impedance | 75Ω |
| Frequency Range | 0 – 6GHz |
| Working Voltage | 250Vrms |
| Dielectric Withstanding Voltage | 750Vrms |
| Contact Resistance | Centre contact 4.0mΩ Outer contact 2.5mΩ |
| Reflection Factor (VSWR) | 1.3 (max) DC – 3.0GHz 1.58 (max) 3.0 – 6.0GHz |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | BeCu / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
The connector is available as:
XGS-06-TB27-NNLU a connector only product
XGS-06-TB27-NNLU-BZ when supplied with a slim 2 slot circular nut
| Mounting Type | Top Entry |
| Leg Length | 2.7mm |
| Hardware | Available separately |
| Processing | Maximum wave and hand soldering temperature 265°C |
The ANG-C2-BBN-2.30 is a standard 1.0 / 2.3 nut which is 2.30mm thick and made from Brass with nickel plating.
This nut was previously sold as part number 71X-0048-33.
The ANG-C2-BBN-1.80 is a circular DIN 1.0 / 2.3 nut which is 1.8mm thick and made from Brass with nickel plating.
This part was previously sold as part number 71X-0053-33.
The ANG-C4-BBN-1.80 is a 4 slot circular Din 1.0 / 2.3 nut which is 1.8mm thick and made from Brass with nickel plating.
This part was previously sold under part number 71X-0058-33.
The ANG-H0-BBN-1.50 is a DIN 1.0/2.3 M5.5 Hex Nut which is made from Brass with a nickel plating.
This nut was previously sold as part number 71X-0068-33.
