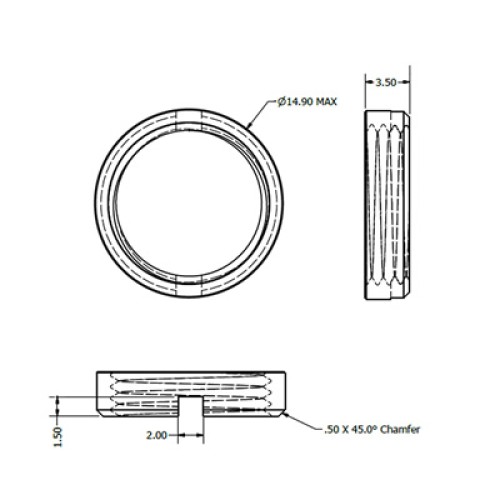

The ANB-C2-ABN-3.50 is a circular BNC nut which is 3.5mm thick and made from brass with a nickel plating.
This part was previously sold as 71X-0063-33.
| Body Finish | Brass / Ni |
A BNC Slimline nut driver with 0.25 inch HEX driver.
This precision 75Ω BNC Connector is a right angle mounted PCB connector with a selection of different leg lengths available. It also features PathfinderTM light pipe technology which aids port identification. With a centre line of 4mm above the board, its low profile permits closer packing densities of daughter boards, which allows reduction in the bulk of routing and switching equipment.
This connector was formerly sold as C-SX-101

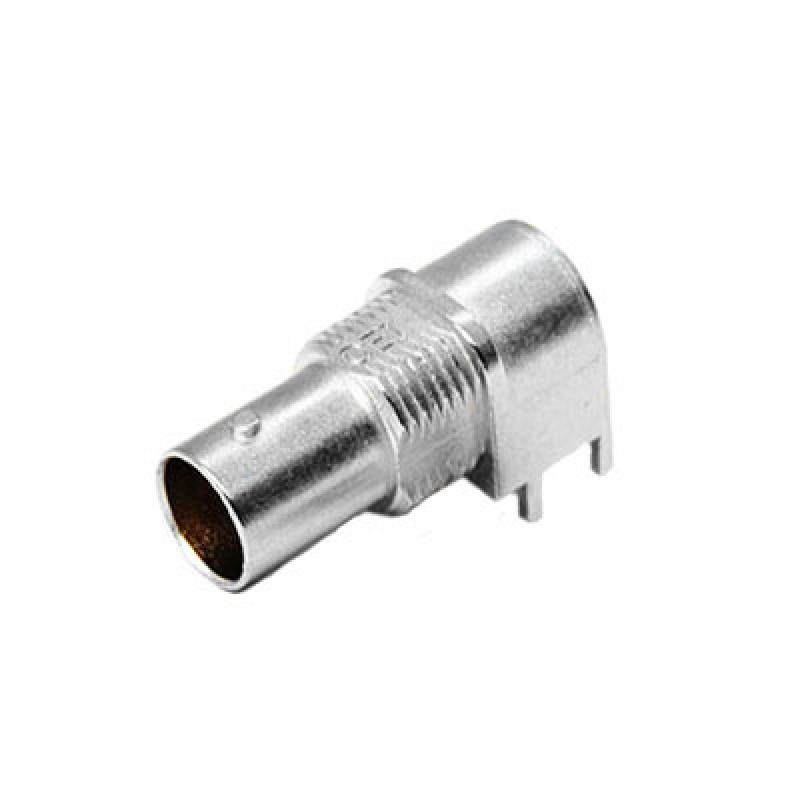

The XBS-03-RB33-NNB precision 75Ω BNC Connector is a right angle mounted PCB connector working at frequencies up to 3GHz. It features PathfinderTM light pipe technology with the viewport located in the bottom of the connector, to aid port identification even when mated.
The XBS-03-RB33-NNNV precision 75Ω BNC Connector is a right angle mounted PCB connector for surface mount applications. It also features PathfinderTM light pipe technology which aids port identification, while also meeting the requirements of the SMPTE ST 2081-1 for 3G-SDI.
The XBS-03-RB33-NNT precision 75Ω BNC Connector is a right angle mounted PCB connector. It also features PathfinderTM light pipe technology with the viewport located in the top of the connector to allow for port identification even when the connector is mated.
This precision 75Ω BNC Connector is a right angle mounted PCB connector with a selection of different leg lengths available. It also features PathfinderTM light pipe technology which aids port identification. With a centre line of 4mm above the board, its low profile permits closer packing densities of daughter boards, which allows reduction in the bulk of routing and switching equipment.

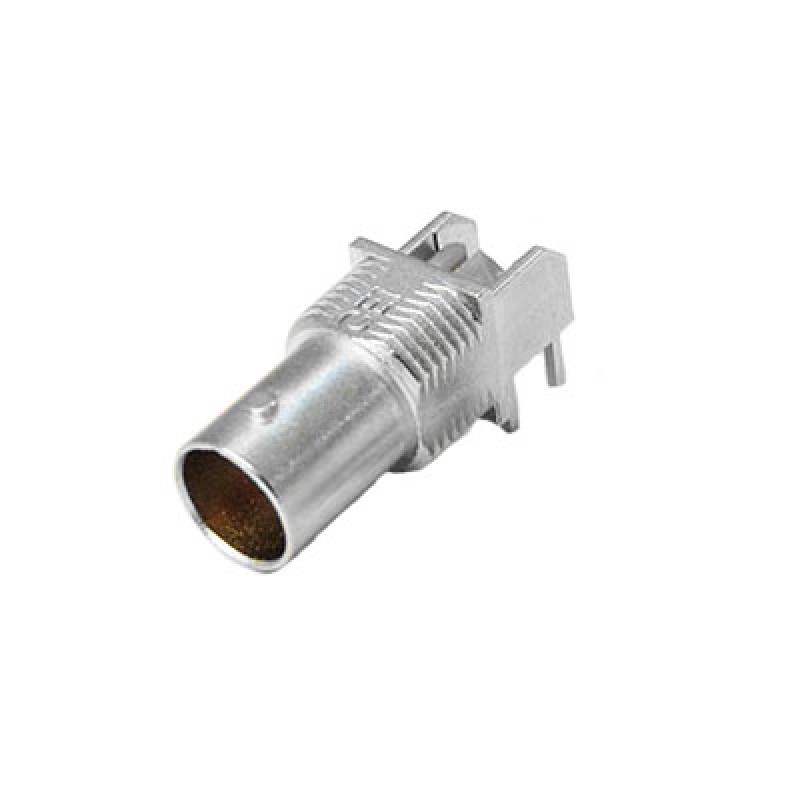

This precision 75Ω BNC Connector is a right angle mounted PCB connector for surface mount applications. It also features PathfinderTM light pipe technology which aids port identification. With a centre line of 4mm above the board, its low profile permits closer packing densities of daughter boards, which allows reduction in the bulk of routing and switching equipment. The XBS-03-RB40-NNNV is a right angle surface mount BNC Connector.
This precision 75Ω BNC Connector is a right angle mounted PCB connector for surface mount applications. It also features PathfinderTM light pipe technology which aids port identification. With a centre line of 4mm above the board, its low profile permits closer packing densities of daughter boards, which allows reduction in the bulk of routing and switching equipment.
The XBS-06-RB22-NNV precision is a bulkhead mounting BNC connector which can be used in PCI® Express applications. It features a PathfinderTM light pipe which aids port identification and status.
The connector has a shorter leg length of 2.2mm. It also has a built in flange which provides additional EMI shielding and is optimised for 6G HD-SDI environments.
This connector was formerly sold as:
C-SX-156 as a connector only product

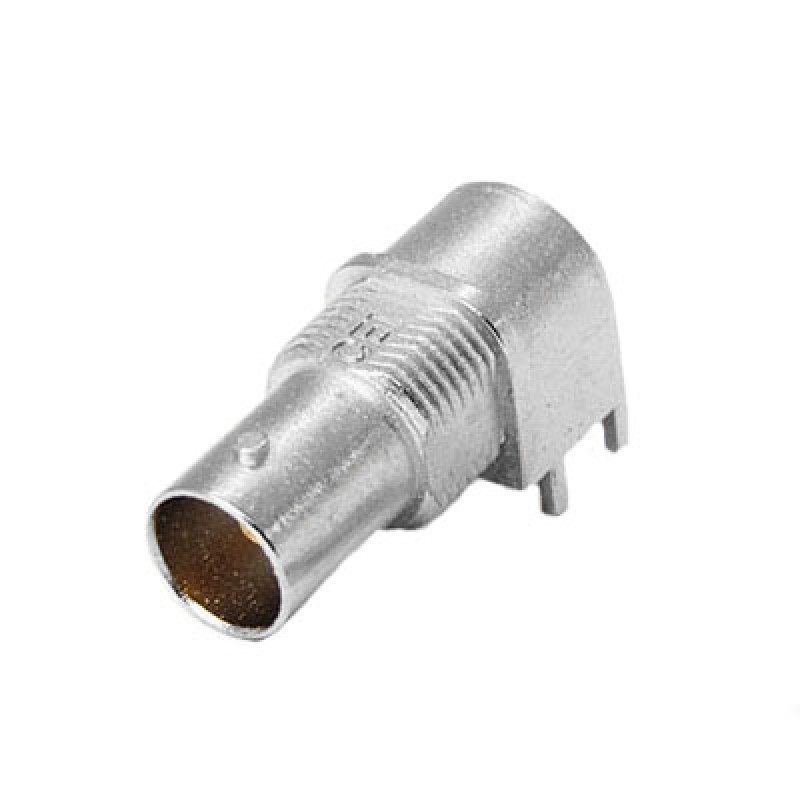

The XBS-06-RB25-NNCV is a bulkhead mounting BNC connector which can be used in PCI® Express applications. It features a PathfinderTM light pipe which aids port identification and status. The XBS-06-RB25-NNCV has a centre line of 7mm, which is taller than other connectors in this range. It also has a built in flange which provides additional EMI shielding and is optimised for 6G HD-SDI environments.
This connector was formerly sold as:
C-SX-126 as a connector only product
The XBS-06-RB33-NNV is a bulkhead mounting BNC coaxial connector which can be used in PCI® Express applications. It features a PathfinderTM light pipe which aids port identification and status. It also has a built-in flange which provides additional EMI shielding and is optimised for 6G HD-SDI environments.

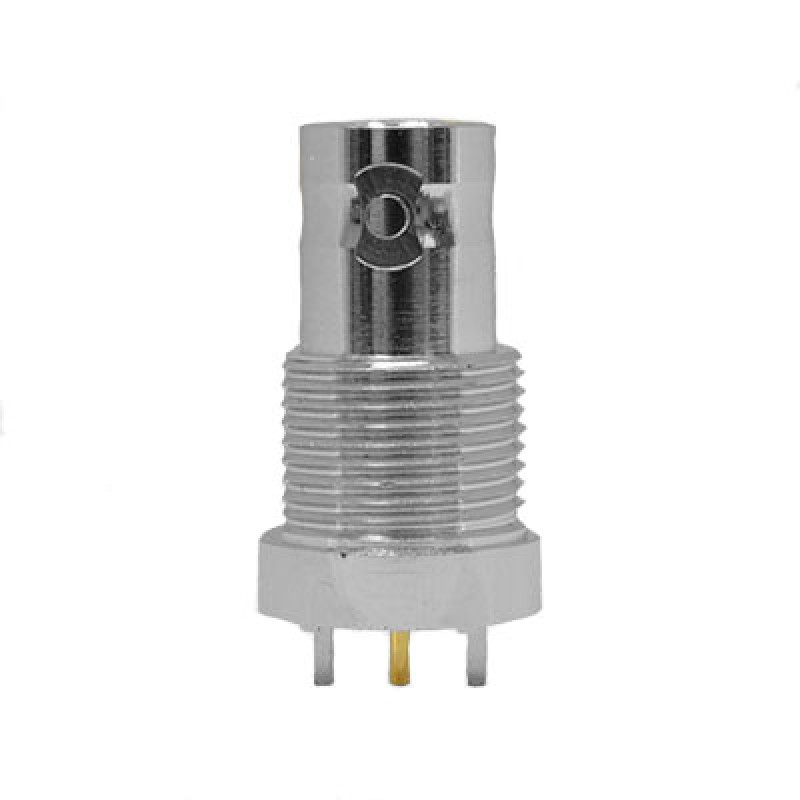

The XBS-06-TB35-NN is a top entry three pin bulkhead mounting BNC connector. This BNC connector is suitable for high speed video applications such as 6G HD- SDI digital broadcast and CoaXPress machine vision.

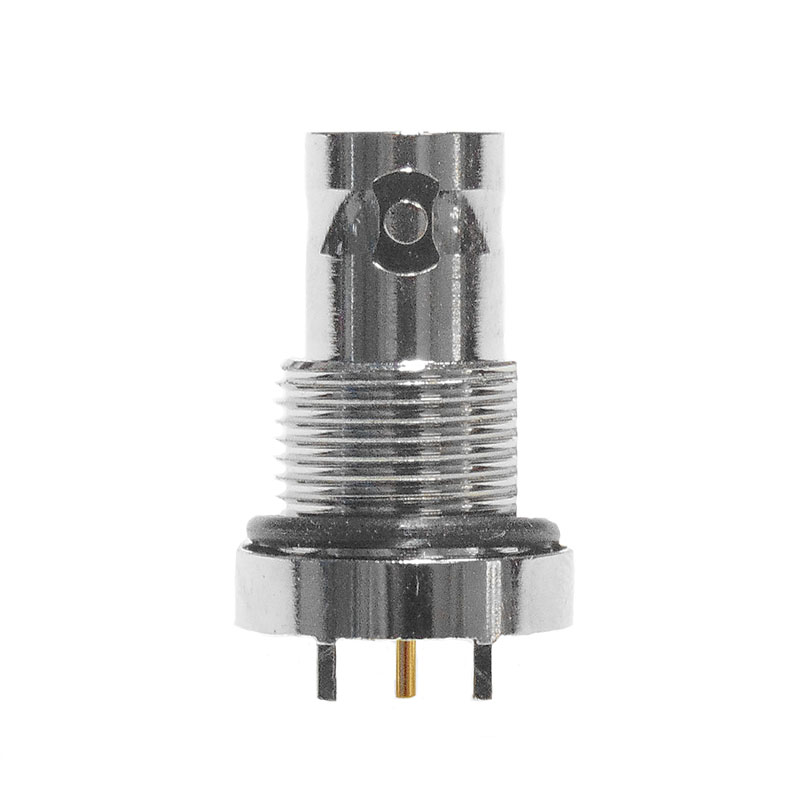

The XBS-06-TB38-NNW is a top entry three pin bulkhead mounting BNC connector. This BNC connector is suitable for high speed video applications such as 6G HD- SDI digital broadcast and CoaXPress machine vision. The connector features a waterproof seal.
Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one connection. The BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using Cambridge Electronics 12GHz BNC Connectors in both halves. The XBS-12-EB16-NNS connector is an PCB edge mounting BNC socket for PCB thicknesses of 1.6mm
Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using Cambridge Electronics 12GHz BNC
Connectors in both halves. The XBS-12-EB16-NNSU connector is an PCB edge mounting BNC socket for PCB thicknesses of 1.6mm and has a protective sleeve around the centre contact.
Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using Cambridge Electronics 12GHz BNC Connectors in both halves. The XBS-12-EB19-NNS connector is an PCB edge mounting BNC socket for PCB thicknesses of 1.9mm.
With a light weight construction and flat top surface this 12 GHz surface mount BNC Coaxial Connector is specifically designed to aid automated placement techniques universally adopted in volume production processes. This End Launch Surface Mounting BNC connector from Cambridge Electronic Industries facilitates transmission rates over a single channel of up to 12Gbits/s thus permitting significantly increased wiring densities.
Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using Cambridge Electronics 12GHz BNC Connectors in both halves.
Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using Cambridge Electronics 12GHz BNC Connectors in both halves. This connector has a surface mounted pin.

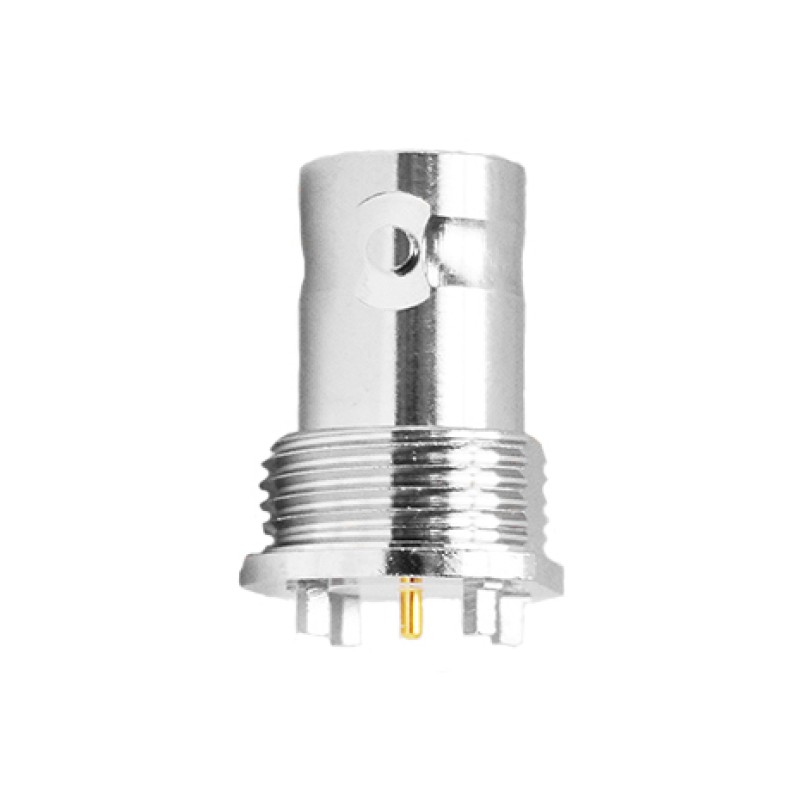

Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The XBS-12-TB19-NNU connector is a top entry, five pin connector which features a protective sleeve and a short bulkhead thread. It is designed for a board thickness of 1.6mm.
Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The XBS-12-TB41-NN connector is a top entry, five pin connector for bulkhead mounting. It is designed for a board thickness of up to 4.0mm.
