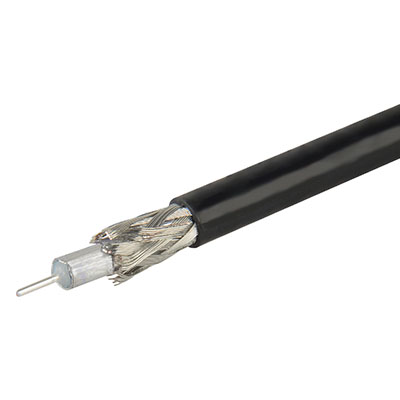

Belden 4855R Cable
General Information:
12 GHz, 4K UHD Precision Video Cable, Mini RG-59, 75 Ohm 23 AWG solid 0.023" silver-plated copper conductor, gas-injected foamed high-density polyethylene insulation, Duofoil® bonded to the core + tinned copper braid shield (95% coverage), PVC Jacket
Suitable Applications:
Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p
Belden Cables are available in a range of colours to special order, with black as a standard colour.
We are able to offer cable assemblies or cable connectors to suit applications using this cable type. You can see more information about cable connectors on the links below and if you have a cable assembly you would like us to manufacture, please send more details to; sales@cambridgeelectronics.com
| Cable Type | Cable Group | Operating Frequency | Impedance | Jacket Material / Size | Dielectric Material / Size | Centre Conductor Material / Size | Conductor Type | Shielding Outer Conductor |
| Belden 4855R | BA/BG | DC-12GHz | 75 ohms | PVC / 4.09mm | FHDPE / 2.59mm | Silver Plated Copper / 0.58mm | Solid | Tinned Copper Braid & Foil |
