C-SX-185 - Right Angle Micro BNC Bulkhead Socket
C-SX-185 - Right Angle Micro BNC Bulkhead Socket  C-SX-185 - Right Angle Micro BNC Bulkhead Socket  C-SX-185 - Right Angle Micro BNC Bulkhead Socket

Electrical
Impedance 75Ω
Frequency Range 0 - 12GHz
Working Voltage 170Vrms
Dielectric Withstanding Voltage 500Vrms
Reflection Factor (VSWR) 1.2 (max) DC - 12.0GHz
Contact Resistance Centre contact 5.0mΩ Outer contact 2.5mΩ
Insulation Resistance 1000MΩ
Connector Type Female
Material
Metal Parts Brass / Au
Centre Pin BeCu / 10µ Au
Insulators PTFE
Environmental
Temperature Range -65 to +85°C
Mechanical
Mating Cycles 500
Processing
Processing Maximum hand or wave soldering temperature 265°C
General Information
Mounting Type Right Angled
Leg Length 4.2mm
Hardware Supplied with 2 slot circular nut

C-SX-185 - Right Angle Micro BNC Bulkhead Socket

  • Product Code: C-SX-185

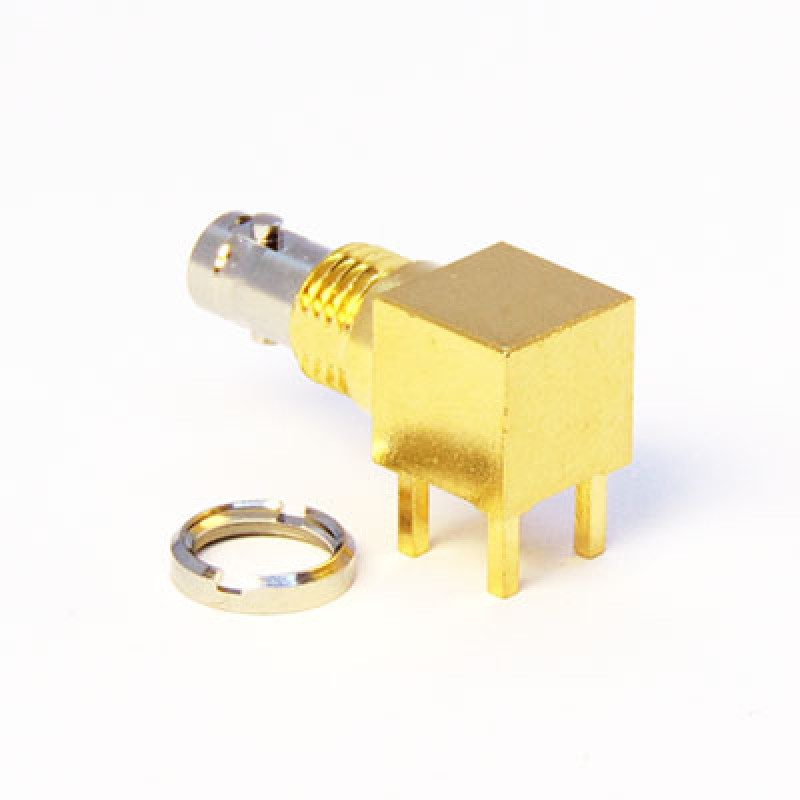

Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using Cambridge Connectors 12GHz CoaxVisionTM BNC Connectors in both halves. The C-SX-185 connector is a  right angle PCB mounting Micro BNC bulkhead socket and is supplied with circular nut.
