CC08-XXP-RX-PM - M8 Rear Fastening Plug (A and B Code)
CC08-XXP-RX-PM - M8 Rear Fastening Plug (A and B Code)  CC08-XXP-RX-PM - M8 Rear Fastening Plug (A and B Code)

Specification
Coding A, B
Contact 2, 3, 4, 5, 6, 8
Shielded No
Electrical
Withstanding Voltage 500V AC/Minute (2 to 5 Pins), 250V AC/Minute (6 to 8 Pins)
Current Rating 3A AC/DC (2 to 5 Pins), 1.5A AC/DC (6 to 8 Pins)
Voltage Rating 60V AC/DC (2 to 3 Pins), 30V AC/DC (4 to 8 Pins)
Contact Resistance ≤5mΩ
Insulation Resistance ≥100MΩ
Material
Contacts Brass Gold Plated
Insulators UL94V-0 Black
Connector Body Brass Nickel Plated
Seal Silicone
Nut Brass Nickel Plated
Environmental
Operating Temperature -40 to 85oC
Waterproof Rating IP67
General Information
Mounting Type Cable

CC08-XXP-RX-PM - M8 Rear Fastening Plug (A and B Code)

  • Product Code: CC08-XXP-RX-PM

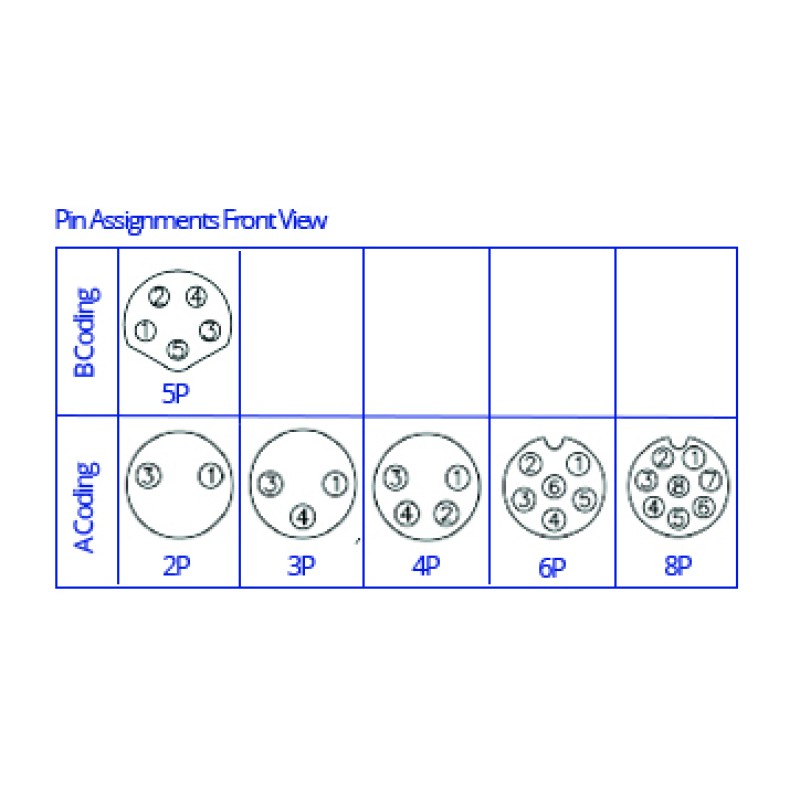

The CC08-XXP-RX-PM is an M8 rear fastening panel plug. This circular connector is available in A and B coding, with a 2 to 8 way pin assignment option and features solder buckets to the rear. This M8 connector is rated to IP67, to provide protection from water or dust ingress into your application. The connector can be mounted to wires and is also available as a ready-made cable assembly as SCA08-XXPRX-XXXX and to your required length.

Features

  • Solder buckets for cable mounting
  • Available in A and B coding
  • 2 to 8 Pins
  • Available as a ready-made or bespoke cable assembly
