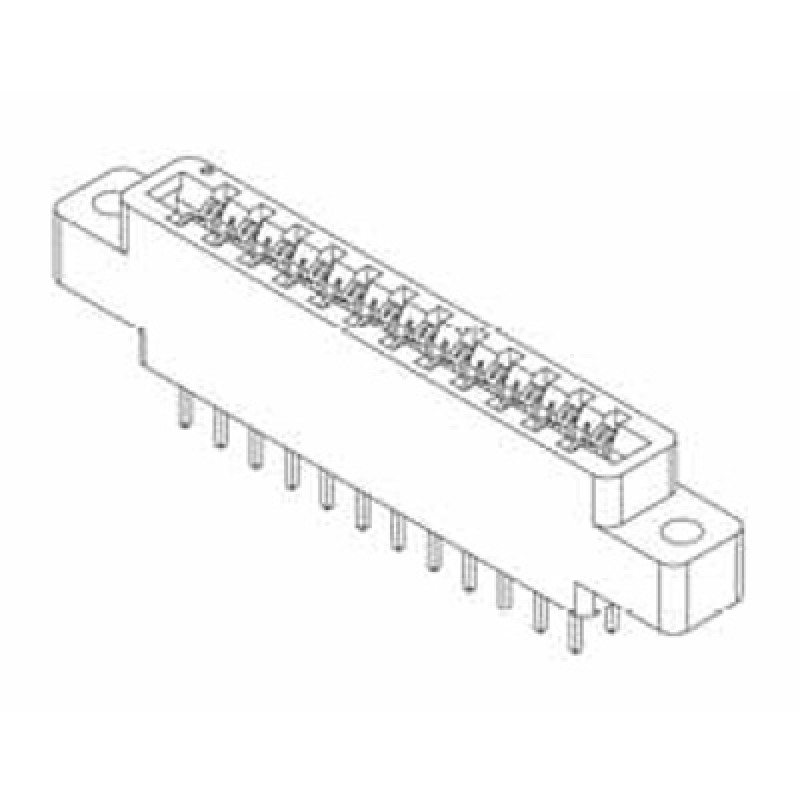

![Card Edge Header 3.18mm [.150"] Contact Centres, 13.97mm [.550"] Insulator Height](https://www.cambridgeelectronics.com/image/cache/catalog/EBJ26DMCH-1-800x800.jpg "Card Edge Header 3.18mm [.150\"] Contact Centres, 13.97mm [.550\"] Insulator Height")

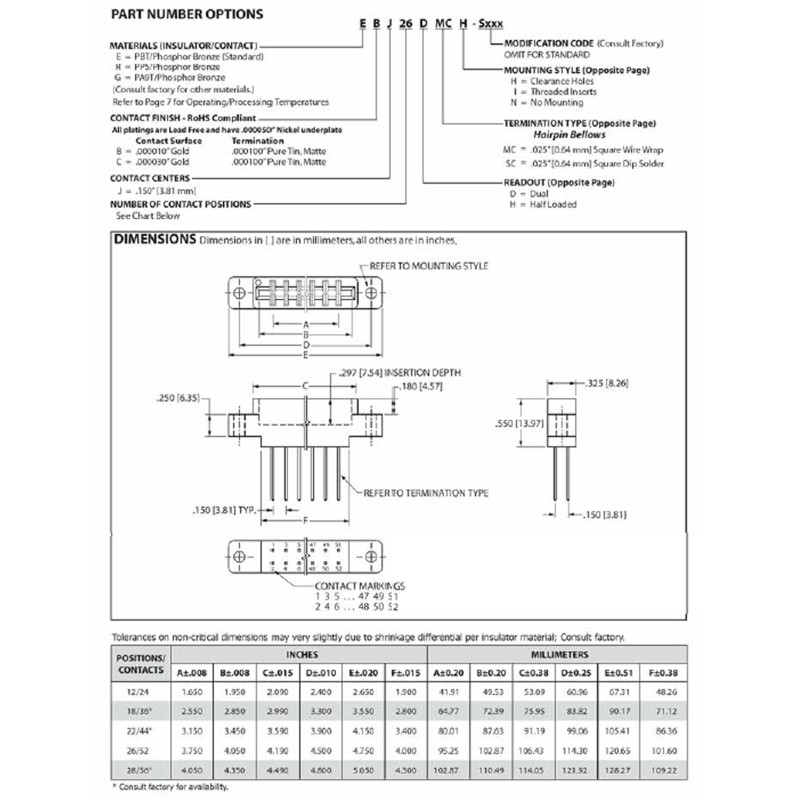

![Card Edge Header 3.18mm [.150"] Contact Centres, 13.97mm [.550"] Insulator Height](https://www.cambridgeelectronics.com/image/cache/catalog/EBJ26DMCHdog-800x800.jpg "Card Edge Header 3.18mm [.150\"] Contact Centres, 13.97mm [.550\"] Insulator Height")
| Electrical | |
| Current Rating | 3A rating per contact |
| Material | |
| Contact Plating | B = .000010" Gold with .000100" pure tin matte terminations C = .000030" Gold with .000100" pure tin matte terminations |
| Contacts | E = Phosphor Bronze R = Phosphor Bronze G = Phosphor Bronze |
| Insulators | E = PBT R = PPS G = PA9T |
| Environmental | |
| Flammability | UL94V-O |
| Mechanical | |
| Board Size | 1.57mm [.062"] |

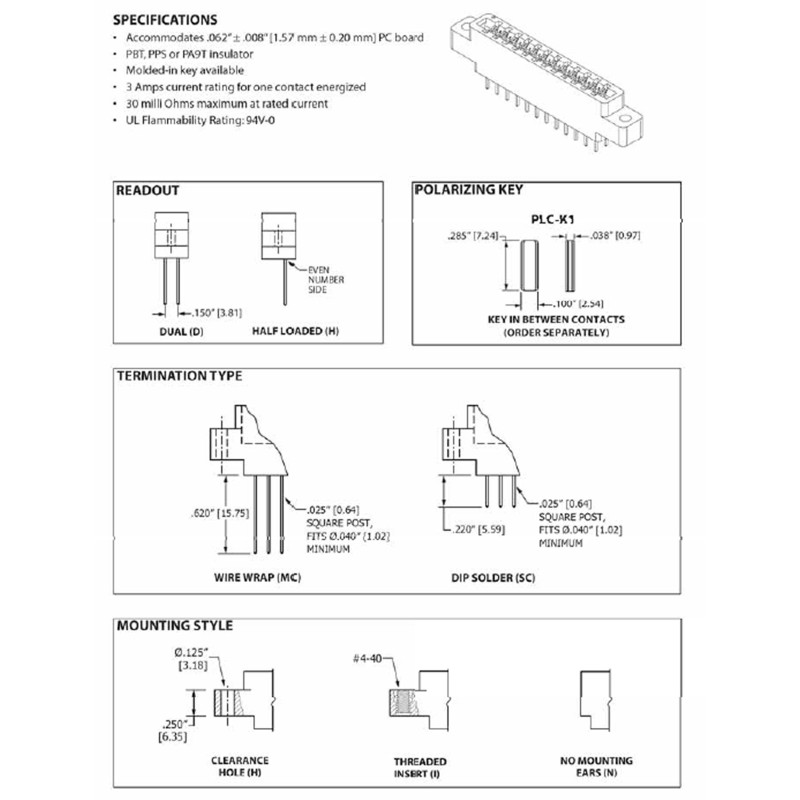

![Card Edge Header 3.18mm [.150"] Contact Centres, 13.97mm [.550"] Insulator Height](https://www.cambridgeelectronics.com/image/cache/catalog/EBJ26DMCHdrawing-800x800.jpg "Card Edge Header 3.18mm [.150\"] Contact Centres, 13.97mm [.550\"] Insulator Height")
