Electrical
Current Rating	1A rating per contact
Material
Contact Plating	B = .000010" Gold C = .000030" Gold M = .000030" Gold with gold terminations
Contacts	R = Phosphor Bronze G = Phosphor Bronze A = Beryllium Copper j = Beryllium Copper F = Splinodal
Insulators	R = PPS G = PA9T A = PPS J = PA9T F = PPS
Environmental
Flammability	UL94V-O
Mechanical
Board Size	0.79mm [.031"] 1.57mm [.062"] 2.36mm [.093"]

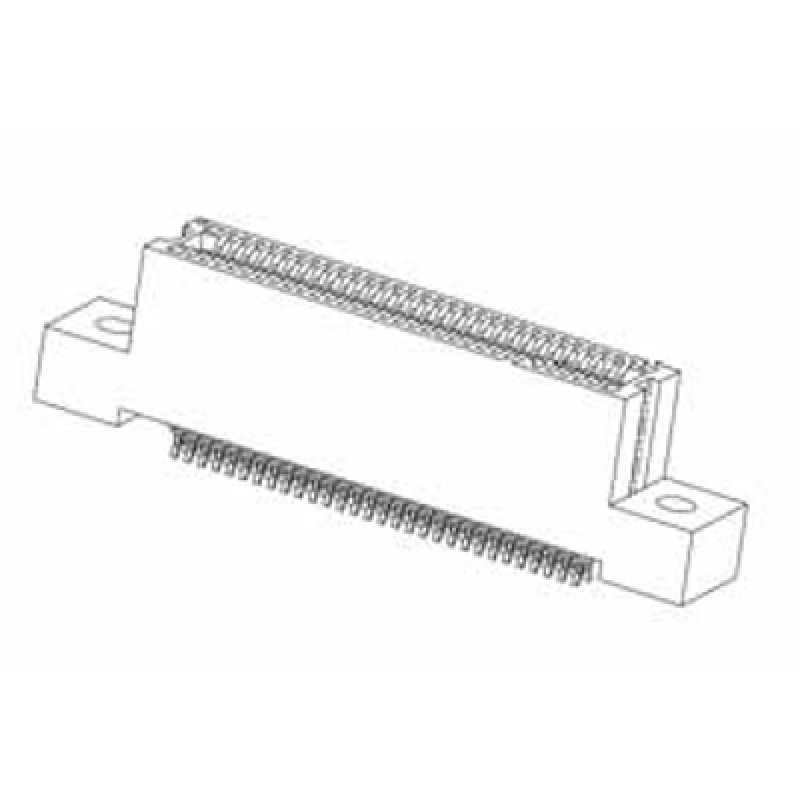

Card Edge Header 1.27mm [.050"] Contact Centres, 15.49 [.610"] Insulator Height

Product Code: GBB40DHHD

The GBB40DHHD is a female card edge header that can accommodate a 0.79mm, 1.57mm or a 2.36mm thick PC board. The connectors is available in a number of options including Insulator and contact materials, contact finish and termination type.
