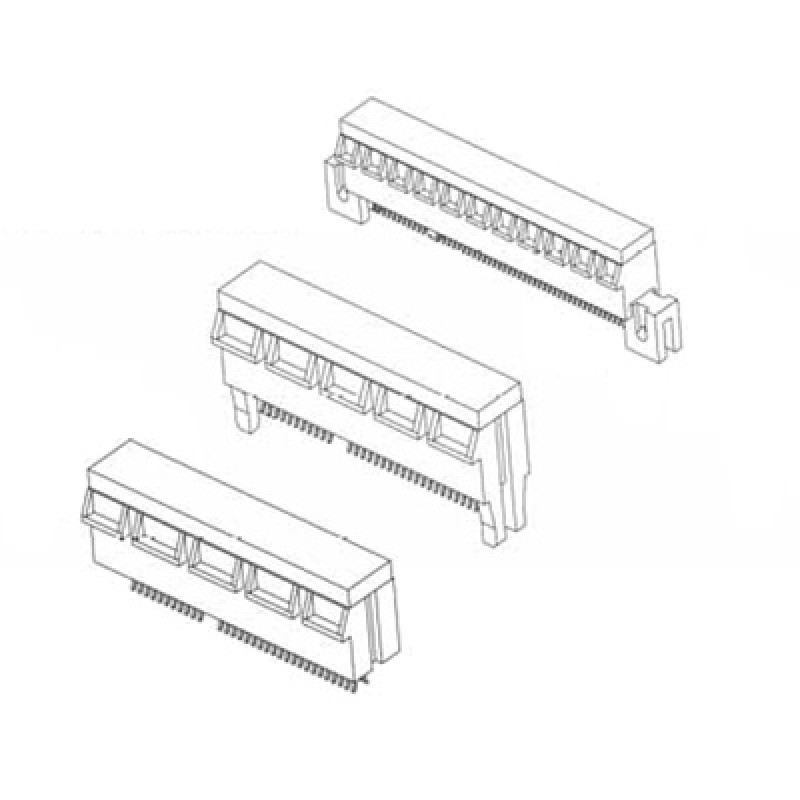

![Card Edge Header 1.00mm [.039"] Contact Centres, PCI Express](https://www.cambridgeelectronics.com/image/cache/catalog/GBE18DHRN-T9410-1-800x800.jpg "Card Edge Header 1.00mm [.039\"] Contact Centres, PCI Express")

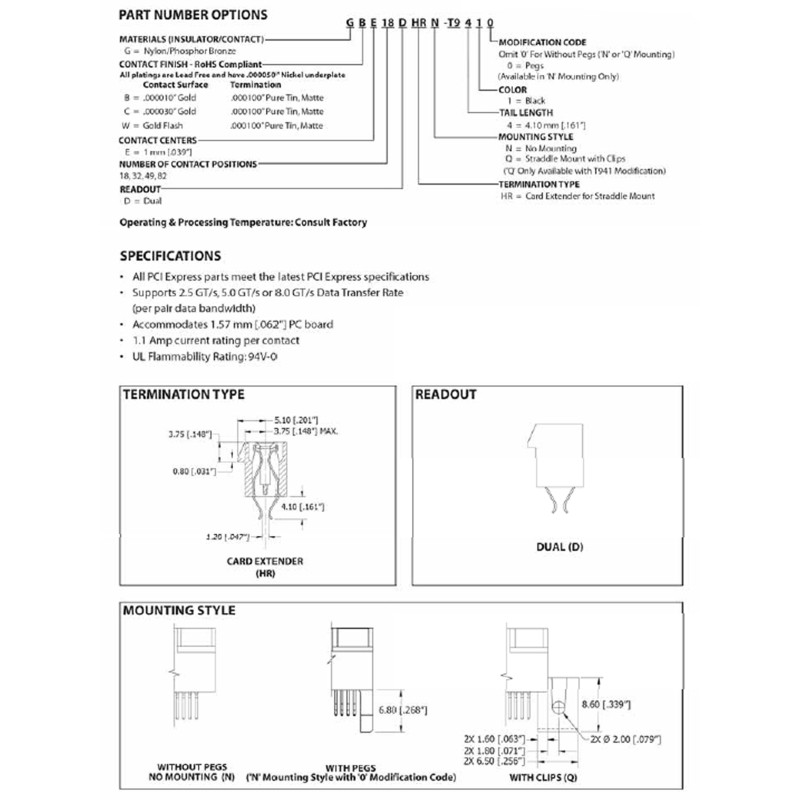

![Card Edge Header 1.00mm [.039"] Contact Centres, PCI Express](https://www.cambridgeelectronics.com/image/cache/catalog/GBE18DHRN-T9410dog-800x800.jpg "Card Edge Header 1.00mm [.039\"] Contact Centres, PCI Express")
| Electrical | |
| Current Rating | 1.1A rating per contact |
| Material | |
| Contact Plating | B = .000010" Gold C = .000030" Gold W = Gold Flash |
| Contacts | G = Phosphor Bronze |
| Insulators | G = Nylon |
| Environmental | |
| Flammability | UL94V-O |
| Mechanical | |
| Board Size | 1.57mm [.062"] |
Card Edge Header 1.00mm [.039"] Contact Centres, PCI Express
- Product Code: GBE18DHRN-T9410
The GBE18DHRN-T9410 is a female card edge header that accommodates a 1.57mm thick PC board and supports 2.5, 5.0 or 8.0 GT/s transfer rate. This connector is for straddle mounting and PCI express parts meets the latest PCI Express specifications.

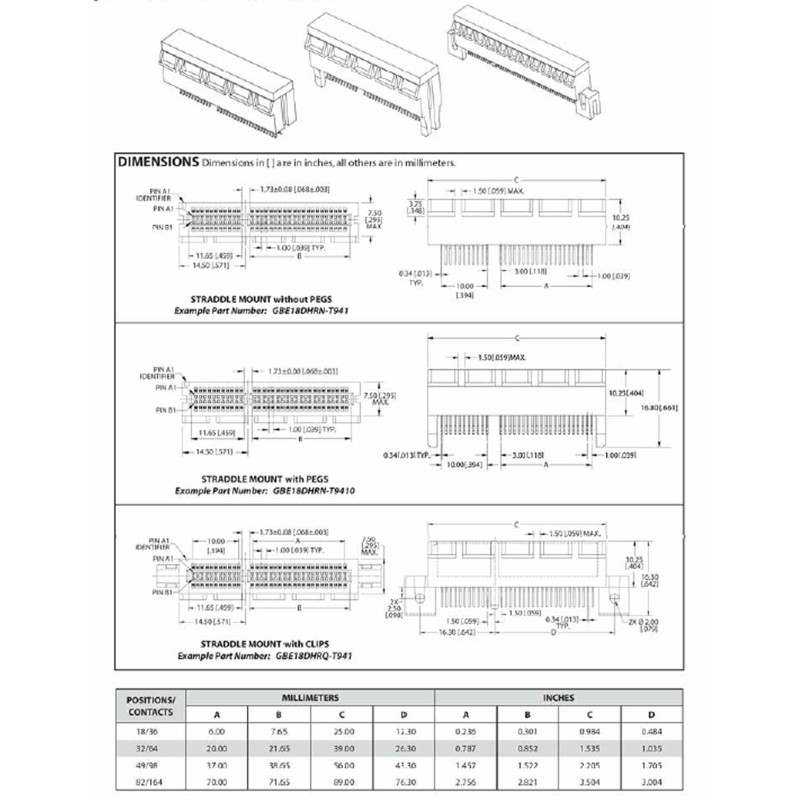

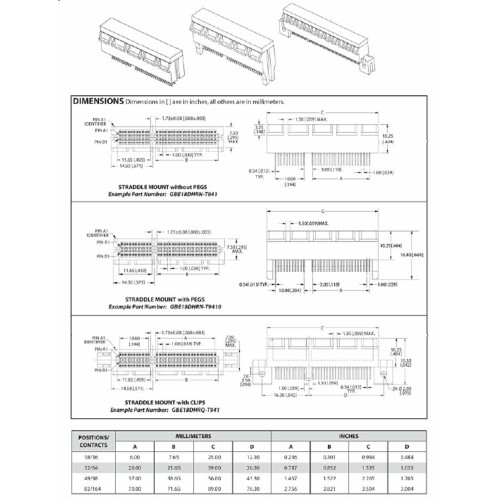

![Card Edge Header 1.00mm [.039"] Contact Centres, PCI Express](https://www.cambridgeelectronics.com/image/cache/catalog/GBE18DHRN-T9410drawing-800x800.jpg "Card Edge Header 1.00mm [.039\"] Contact Centres, PCI Express")
