Electrical
Current Rating	1A rating per contact for contact fully energized
Material
Contact Plating	B = .000010" Gold C = .000030" Gold
Contacts	G = Phosphor Bronze R = Phosphor Bronze J = Beryllium Copper A = Beryllium Copper
Insulators	G = PA9T R = PPS J = PA9T A = PPS
Environmental
Flammability	UL94V-O
Mechanical
Board Size	1.57mm [.062"]

Card Edge Header 1.00mm [.039"] Contact Centres, 21.84mm [.860"] Insulator Height

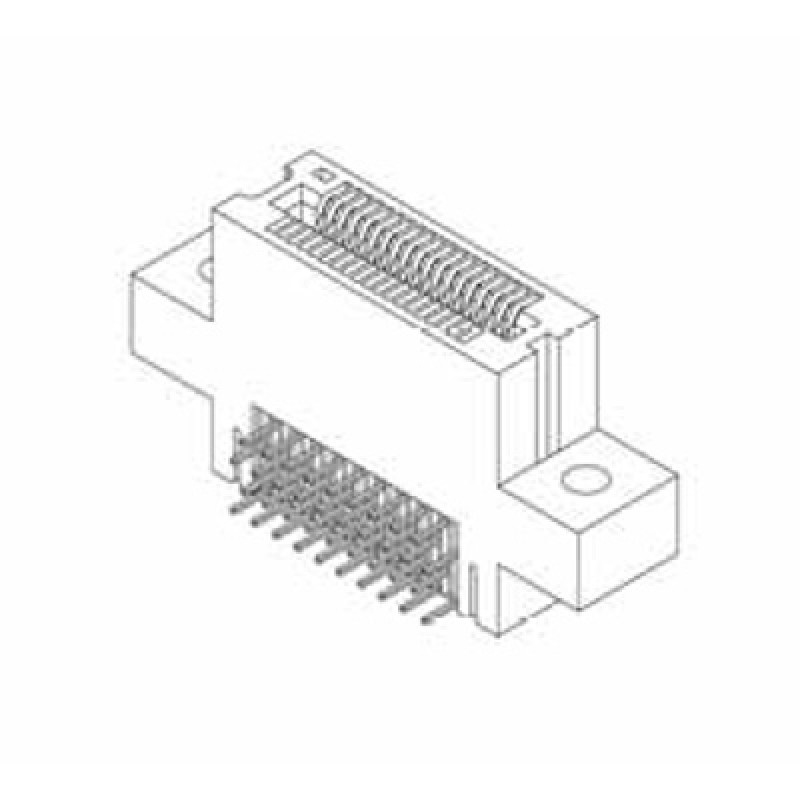

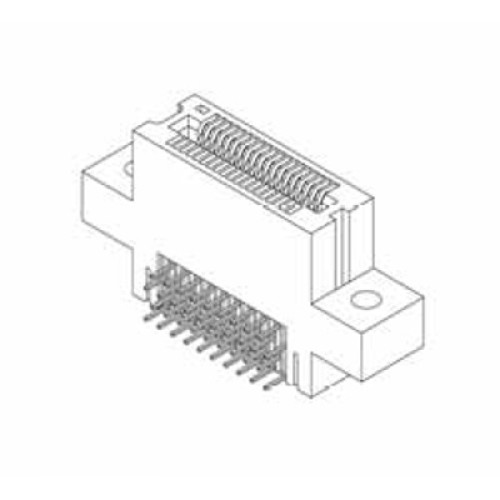

Product Code: GBE50DHAD

The GBE50DHAD is a female card edge header that accommodates a 1.57mm thick PC board. Each connector is available with a number of options including number of positions and contacts, insulator and contact material options, contact finish, termination type and mounting style.
