| Specification |
| Coding |
A, D |
| Contact |
2, 3, 4, 5 |
| Shielded |
No |
| Electrical |
| Withstanding Voltage |
500V AC/Minute |
| Current Rating |
4A AC/DC |
| Voltage Rating |
250V AC/DC |
| Contact Resistance |
≤10mΩ |
| Insulation Resistance |
≥100MΩ |
| Material |
| Solder Tails |
Nickel, Matte Tin Plated, Nickel, Matte Tin Plated |
| Metal Tab |
Brass, Nickel, Matte Tin Plated, Brass, Nickel, Matte Tin Plated |
| Contacts |
Phosphor Bronze Gold Plated |
| Insulators |
UL94V-0 Black |
| Environmental |
| Operating Temperature |
-40 to 85oC |
| General Information |
| Mounting Type |
PCB |

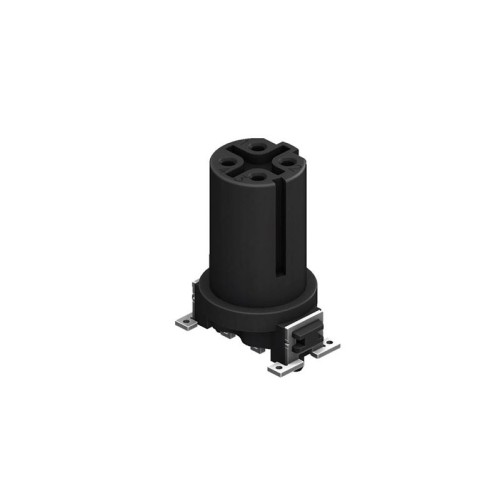

CC12-XXS-X-SMXX-TR - M12 surface Mount Receptacle (A and D Code)
- Product Code: CC12-XXS-X-SMXX-TR
The CC12-XXS-X-SMXX-TR is an M12 receptacle available in both A and D coding. The receptacle is a surface-mounted connector with polarising pins to ensure correct deployment. The connector is available in 3 to 5 pin options and comes in tape and reel packaging for machine placement. The contacts can be ordered with either a 1μ” or 30μ” gold plating option.
Features
- Surface-mounted pins with polarising pins for correct deployment
- Available in A and D coding
- 2 to 5 Pins
- Can be used in high power applications up to 1kW per pin
