SCM08-XXPXR-XXXX - M8 Right Angle Over-moulded Plug Cable Assembly (A or B Code)
SCM08-XXPXR-XXXX - M8 Right Angle Over-moulded Plug Cable Assembly (A or B Code)  SCM08-XXPXR-XXXX - M8 Right Angle Over-moulded Plug Cable Assembly (A or B Code)

Specification
Coding A, B
Contact 2, 3, 4, 5, 6, 8
Electrical
Current Rating 3A AC/DC (2 to 5 Pins), 1.5A AC/DC (6 to 8 Pins)
Voltage Rating 60V AC/DC (2 to 3 Pins), 30V AC/DC (4 to 8 Pins)
Contact Resistance ≤5mΩ
Insulation Resistance Connector ≥100MΩ, Cable ≥10MΩ
Connector Type Male
Environmental
Operating Temperature -40 to 80oC
Waterproof Rating IP67
General Information
Connector Part Number CC08-XXP-X-MM
Mounting Type Cable

SCM08-XXPXR-XXXX - M8 Right Angle Over-moulded Plug Cable Assembly (A or B Code)

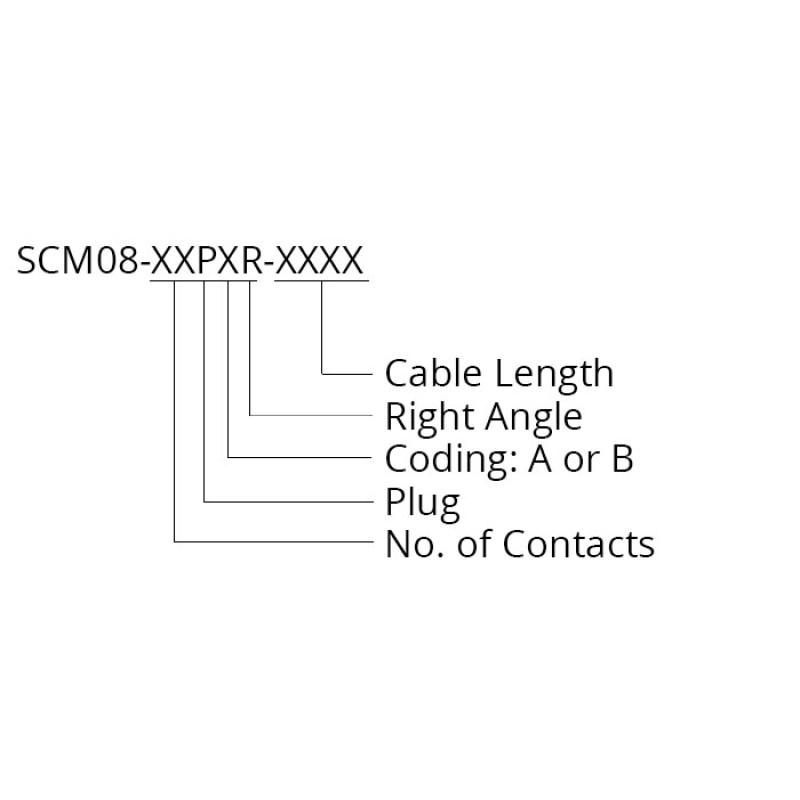

  • Product Code: SCM08-XXPXR-XXXX

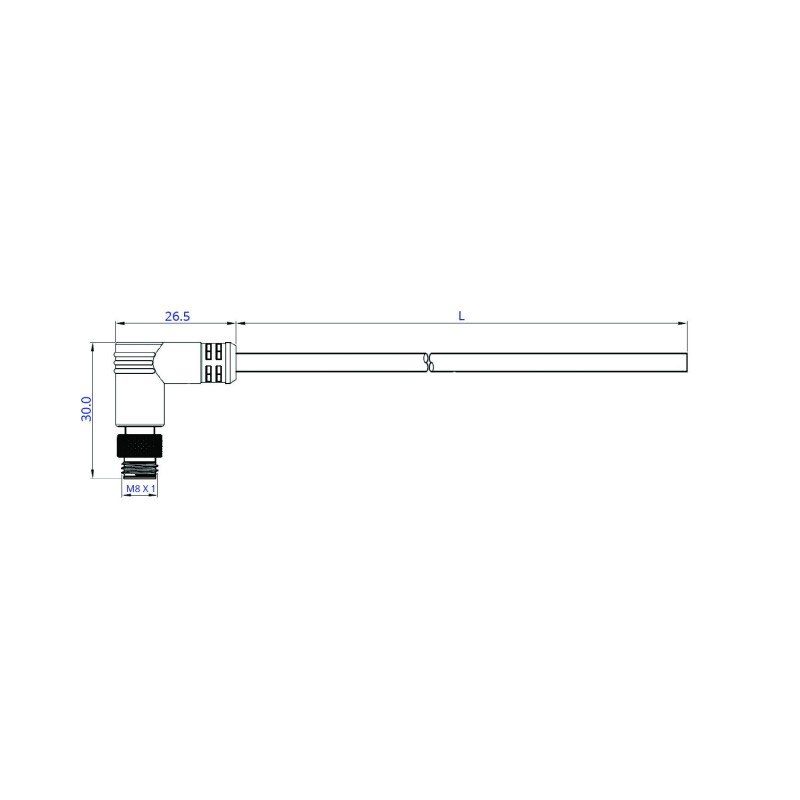

The SCM08-XXPXR-XXXX is an M8 over-moulded right angle plug cable assembly with a stub end for completion with a termination of your choice. The M8 plug is available in an A or B coding with 2 to 8 pin options. The cable is available in standard lengths of 0.5, 1, 1.5 and 2 metres, but we can offer a bespoke cable assembly to any length and with any termination.

Features

  • Can be used for Power or signal pins
  • IP67 Waterproof rating
  • Suitable for a wide range of applications
  • Available in standard lengths of 0.5, 1, 1.5 and 2 metres.
  • Can be supplied as a bespoke cable assembly with or without terminations to the other end.
