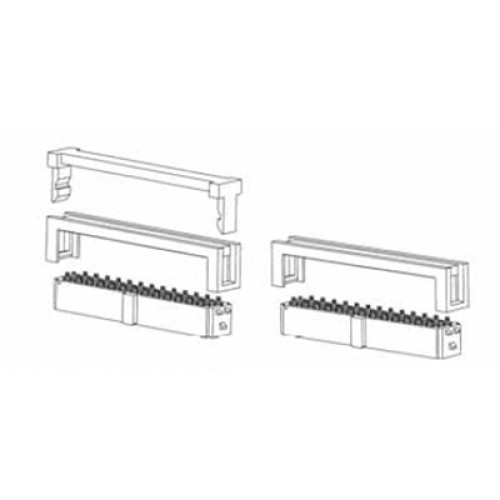

![Card Edge Header 1.27mm [.0.50"] Contact Centres, 2.54mm [.100"] Row Spacing (Female)](https://www.cambridgeelectronics.com/image/cache/catalog/SFH41PPPBD10IDBK-1-800x800.jpg "Card Edge Header 1.27mm [.0.50\"] Contact Centres, 2.54mm [.100\"] Row Spacing (Female)")
| Electrical | |
| Current Rating | 1A rating per contact |
| Dielectric Withstanding Voltage | 500 VAC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 1000MΩ |
| Material | |
| Contact Plating | P = Gold flash overall E = .000100" Pure tin matte overall V = Gold flash on contact surface, nickel on termination |
| Contacts | P = Phosphor Bronze |
| Insulators | P = PBT |
| Environmental | |
| Temperature Range | -40 to +105°C |

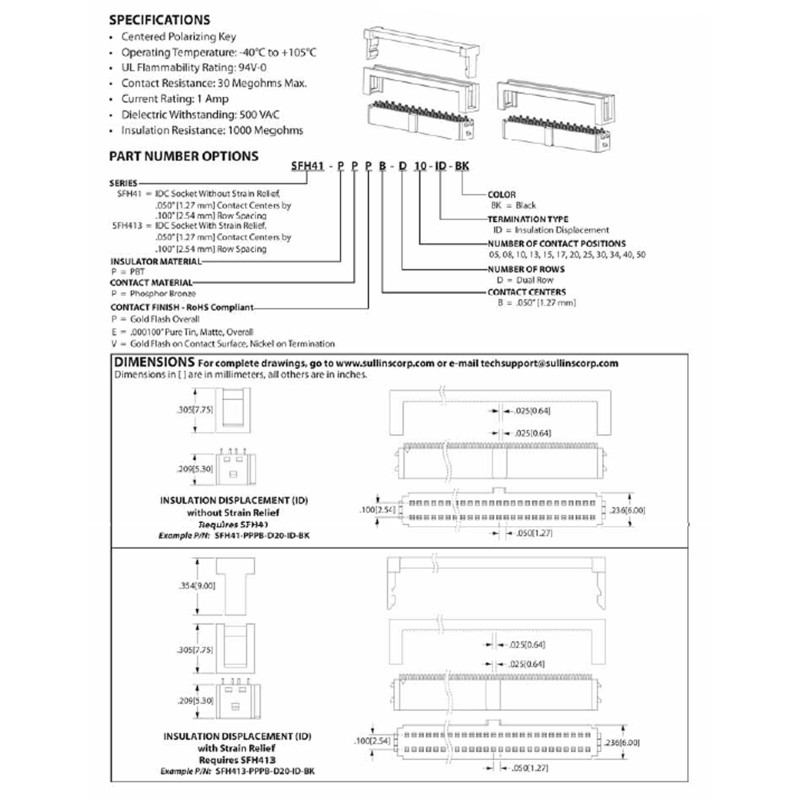

![Card Edge Header 1.27mm [.0.50"] Contact Centres, 2.54mm [.100"] Row Spacing (Female)](https://www.cambridgeelectronics.com/image/cache/catalog/SFH41PPPBD10IDBKdrawing-800x800.jpg "Card Edge Header 1.27mm [.0.50\"] Contact Centres, 2.54mm [.100\"] Row Spacing (Female)")
