Electrical
Impedance	75Ω
Frequency Range	0 - 12.0 GHz
Working Voltage	500Vrms
Dielectric Withstanding Voltage	1500Vrms
Reflection Factor (VSWR)	1.15 (max) 0-6GHz, 1.43 (max) 6-12GHz, 1.43 (max) 6-12GHz, 1.15 (max) 0-6GHz
Contact Resistance	Centre contact 1.5mΩ Outer contact 1.0mΩ
Insulation Resistance	5000mΩ
Connector Type	Female
Material
Metal Parts	Brass / Ni
Centre Pin	BeCu / 10µ&quot;Au, BeCu / 10µ&amp;quot;Au, BeCu / 10µ"Au, BeCu / 10µ"Au
Insulators	PFTE
Environmental
Temperature Range	-65 to 85°C
Mechanical
Mating Cycles	250
Processing
Processing	Maximum hand and reflow soldering temperature 260°C
General Information
Mounting Type	Right Angled
Leg Length	2.1mm
Hardware	Available separately

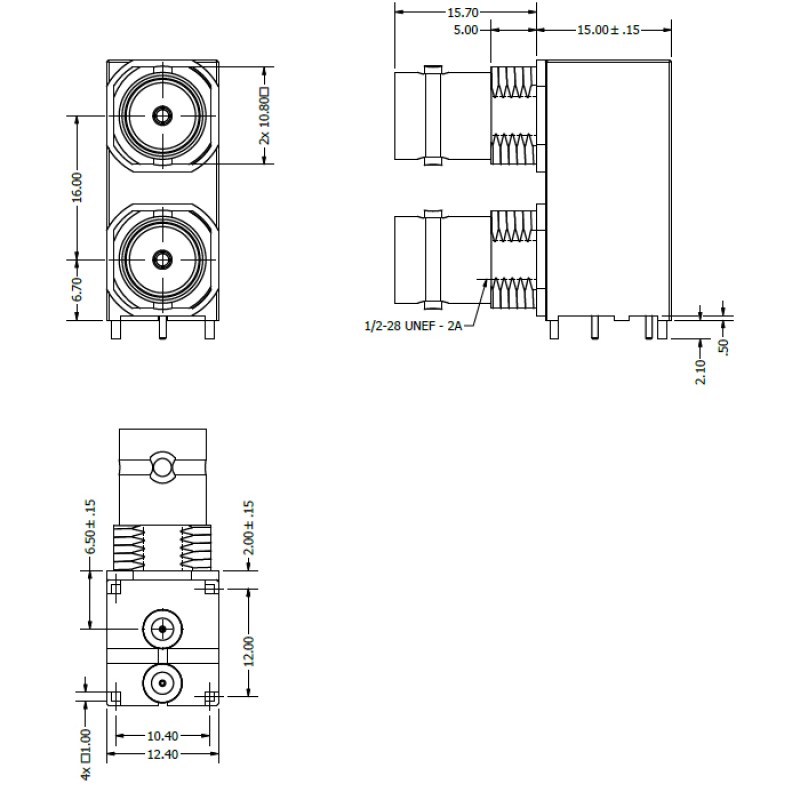

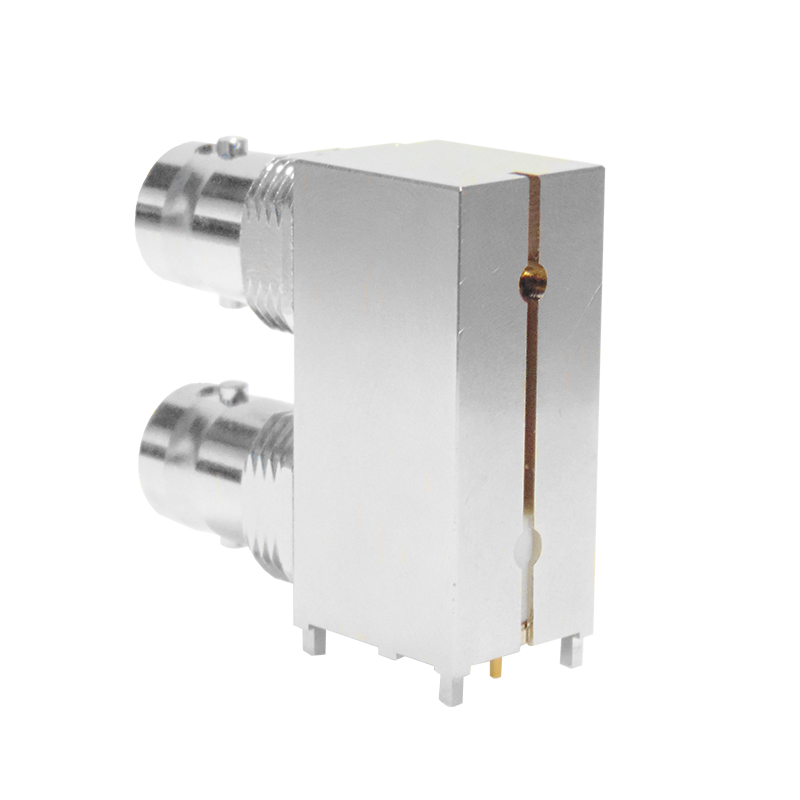

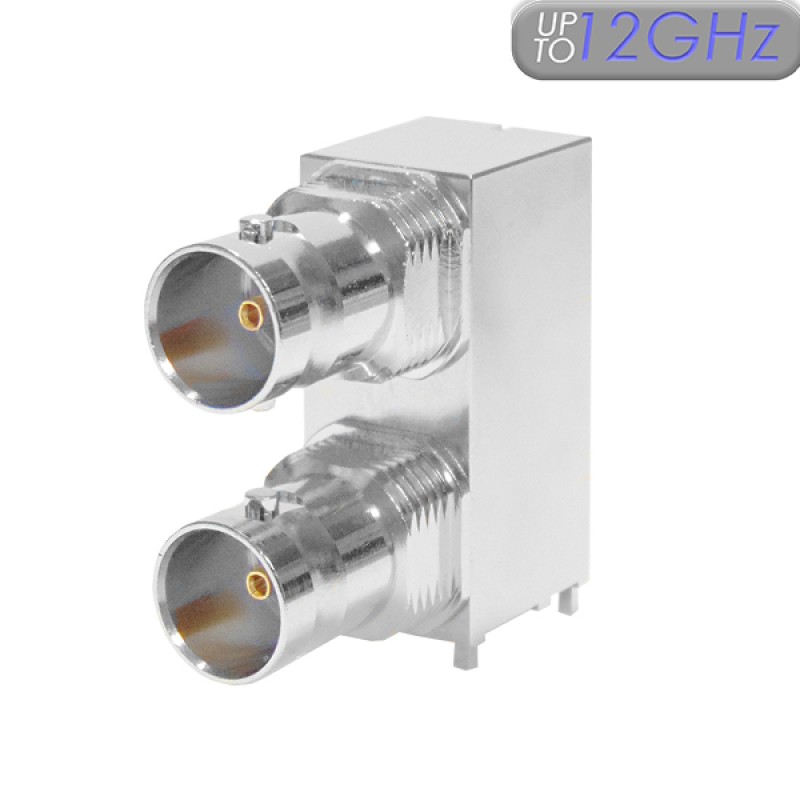

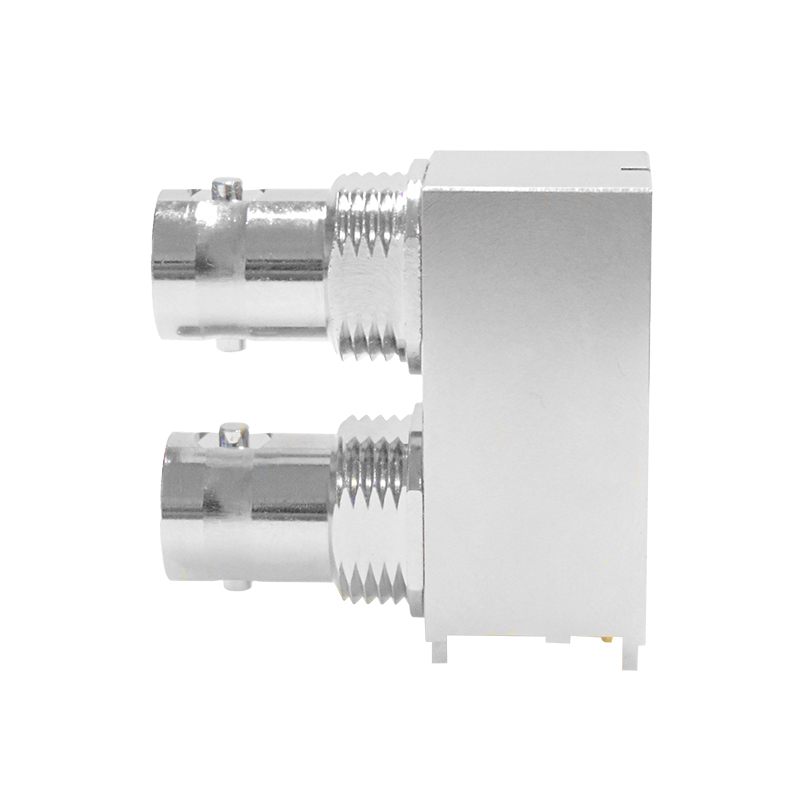

XBS-12-RB16-NND - Dual Port Right Angle mounted BNC Connector

Product Code: XBS-12-RB21-NND

Our 12 GHz Precision BNC coaxial connectors are engineered for 4K/Quad HD and Ultra HD broadcast applications and fully compliant with the JIIA CoaXPress specification. Delivering a true 12 GHz channel through a single connection, these high-performance connectors ensure uncompromised signal integrity.

The dual-port BNC connector provides the highest possible packing density for BNC interfaces, eliminating the need for a mezzanine board. Its low-profile design is optimized to fit seamlessly within a 1U rack-mounted unit.

Designed with precision engineering, the connector minimizes crosstalk between signal channels while offering ease of use through reflow solderability, making it both robust and production-friendly.

XBS-12-RB16-NND - Dual Port Right Angle mounted BNC Connector
