C-SX-146 - Dual Port DIN 1.0 / 2.3 Connector System for PCI Express® Applications
C-SX-146 - Dual Port DIN 1.0 / 2.3 Connector System for PCI Express® Applications  C-SX-146 - Dual Port DIN 1.0 / 2.3 Connector System for PCI Express® Applications

Electrical
Impedance 75Ω
Frequency Range 0 - 6GHz
Working Voltage 250Vrms
Dielectric Withstanding Voltage 750Vrms
Reflection Factor (VSWR) 1.18 (max) DC - 3GHz 1.44 (max) 3 - 6GHz
Contact Resistance Contact contact 4.0mΩ Outer contact 2.5mΩ
Insulation Resistance
Connector Type Female
Material
Metal Parts Brass / Au
Centre Pin BeCu / 10µ Au
Insulators PTFE
Environmental
Temperature Range -65 to +85°C
Mechanical
Mating Cycles 500
Processing
Processing Maximum wave and hand soldering temperature 265°C
General Information
Mounting Type Right Angled
Leg Length 1.8mm
Hardware Supplied with 2 x 2 slot circular nut

C-SX-146 - Dual Port DIN 1.0 / 2.3 Connector System for PCI Express® Applications

  • Product Code: C-SX-146

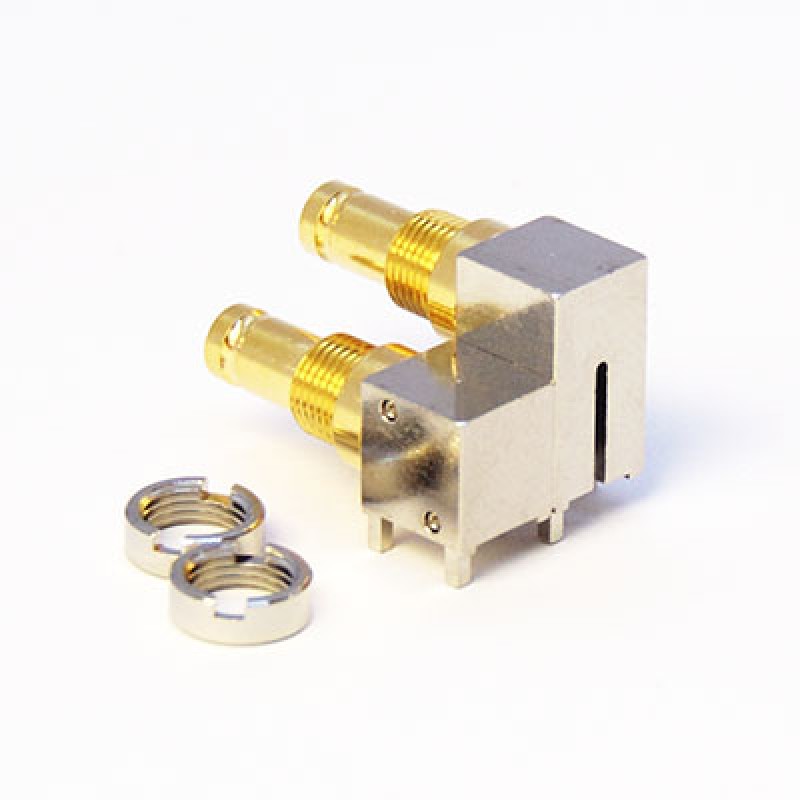

The C-SX-146 is a low profile dual port connector which allows an enhanced packing density of connections on a standard PCI Card. This is made possible by combining the small format of DIN 1.0 / 2.3 style connectors with a unique diagonal mounting style, while also offering the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection.
