Electrical
Current Rating, Machine Contacts	5A
Connector Type	Female
Filtering	1nF
Material
Metal Parts	Tin over Nickel plated Steel
Contacts	turned CU alloy with AU plating
Insulators	thermoplastic glass filled UL94 V-O
Environmental
Temperature Range	-55 to +85°C
Processing
Processing	Hand Soldering

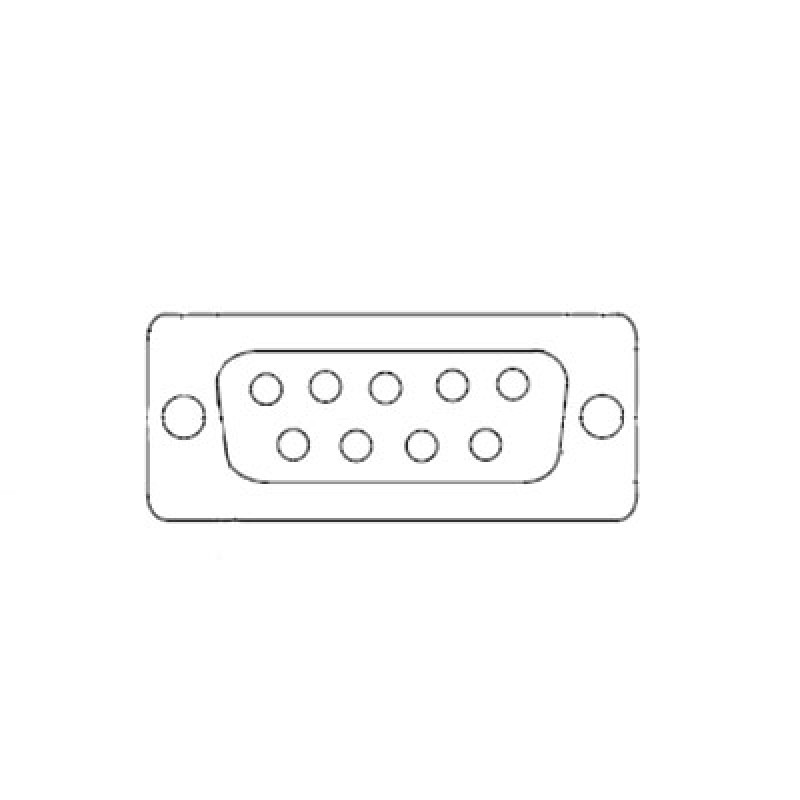

DSS-09-SD1-F1(011) - 9 way filtered D Type

Product Code: DSS-09-SD1-F1(011)

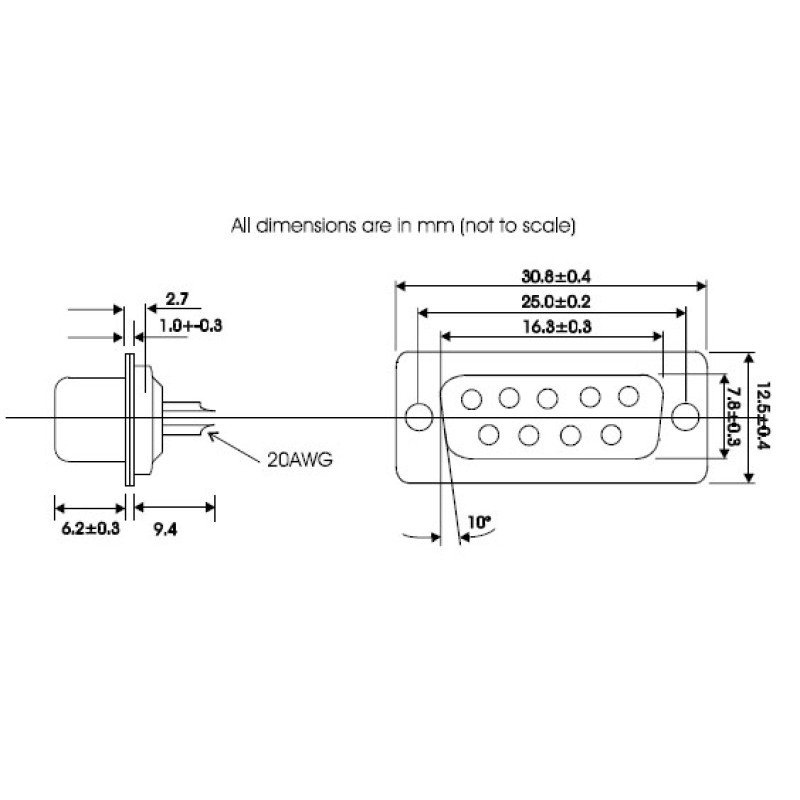

The DSS-09-SD1/F1(011) is a 9 way female D type which is has a filter rated to 1nF. The connector has a solder bucket type connection to the back that is suitable for 20AWG wire.
